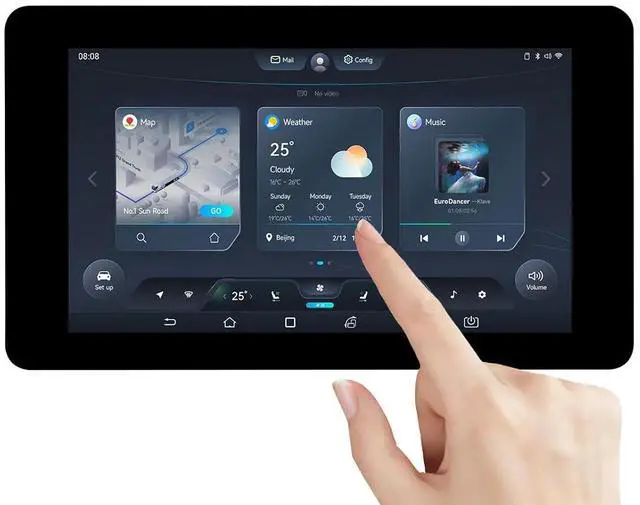

ESP32-S3 7inch Touch LCD Display Development Board, 800×480 Pixels 65K RGB 5-Point Touch Screen, Onboard Sensor, CAN, RS485, I2C Interface, etc. Supports 2.4GHz Wi-Fi & Bluetooth 5

Introduction ESP32-S3-Touch-LCD-7 is a microcontroller development board with 2.4GH z WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications Features Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built in 512KB of Static RAM and 384KB ROM, with onboard 8MB PSRAM and 16MB Flash Onboard 7inch LCD display, 800×480 resolution, 65K color Supports 5-point capacitive touch control via I2C interface, with interrupt support Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios Package Content ESP32-S3-Touch-LCD-7 x1 HY 2.0 2P to 2PIN male cable 10cm ×2 HY 2.0 3P to 3PIN male cable 10cm ×1 HY 2.0 4P to 4PIN male cable 10cm ×2 Screws pack x1
Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions.
