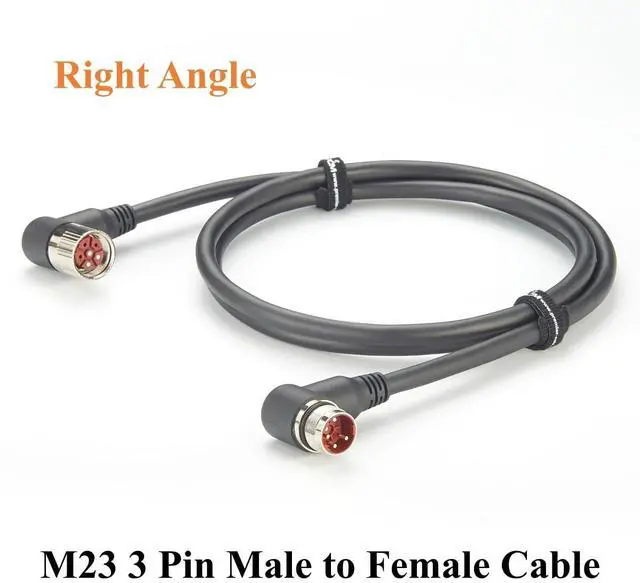

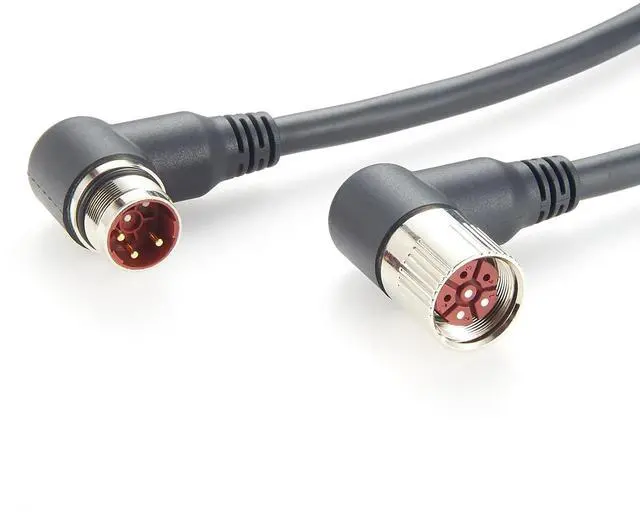

Right Angle M23 3 Pin Male to Female Power Extension Cable IP67 Waterproof Industrial M23 Circular Connector for Servo Motor, Robotics, CNC Machine (Right Angle, 2M/6.6FT)

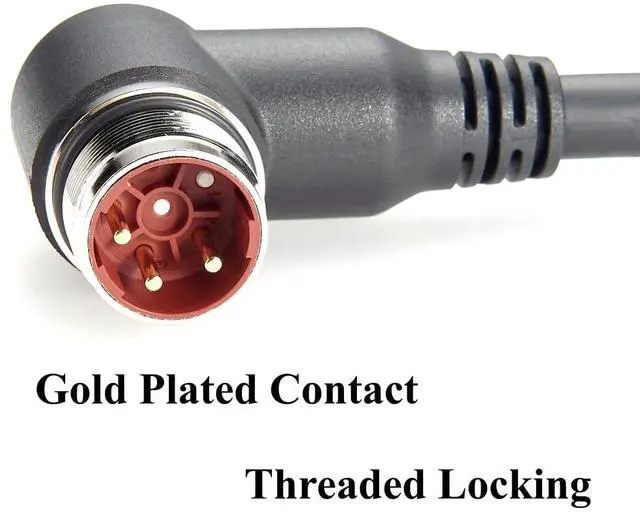

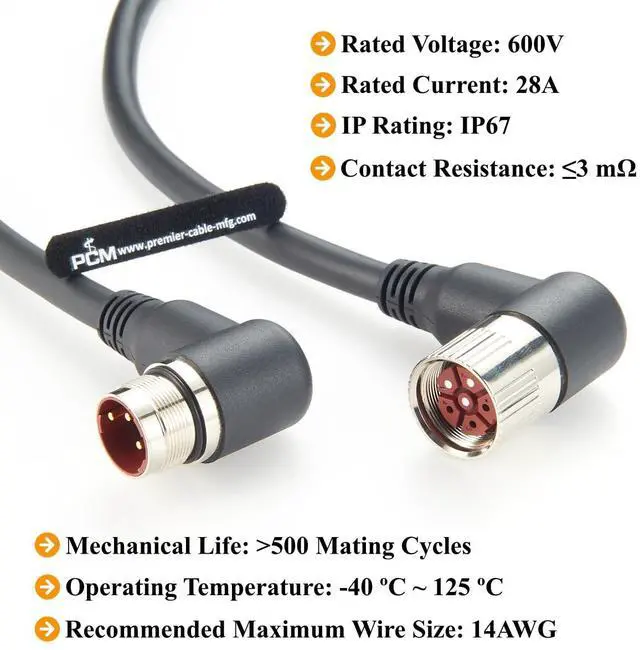

- Product Parameter Connector A: Right Angle M23 3 Pin Male; Connector B: Right Angle M23 3 Pin Female; Rated Voltage: 600V; Rated Current: 28A; Contact Resistance: 3 m; Mechanical Life: >500 Mating Cycles; Recommended Maximum Wire Size: 14AWG.; Sturdy & Durable M23 3 Poles Male to Female Cable, both Ends with 90° Right-Angle Molded Connectors, Gold Plated Contact, Features 3-Core 2.5 mm² Multi-Strand Tinned Copper Conductors with Flexible Rubber H07RN-F Jacket, Overmold TPU, Offers Excellent Conductivity, Anti-oxidation Performance, and Resistance to Oil, Bending, and Abrasion.; IP67 Waterproof & Dustproof Durable M23 Metal Connectors with Threaded Locking, Provide IP67 Protection, Resistant to Dust, Water, and Vibration. Operating Temperature is -40 ºC ~ 125 ºC, for Harsh Factory or Outdoor Environments.; High Current & Voltage M23 3 Pin Male to Female Extension Cable, Rated Up to 28A and 600V. for industrial power supply and motor drive systems. Maintains stable performance in high-load operations.; Application IP67 Waterproof M23 3 Poles Power Supply Cable, for Servo Motors, CNC Machines, Industrial Automation, Robotics, Sensor, Actuator, and Light-duty Drag Chains.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product

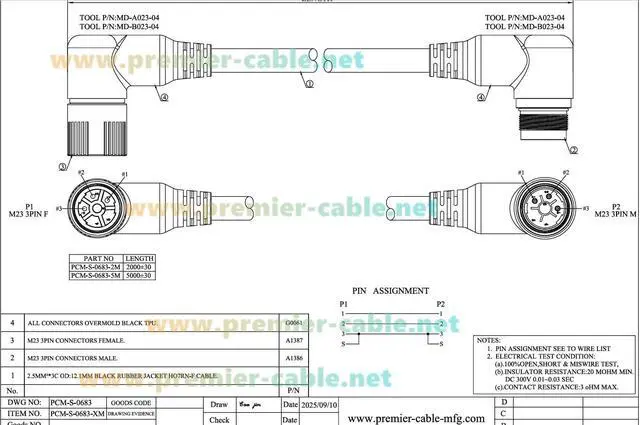

Name: Right Angle M23 3 Pin Power Supply Cable DWG No.: PCM-S-0683
Connector A: Right Angle M23 3 Pin Male
Connector Connector B: Right Angle M23 3 Pin Female
Connector Length: 2M/5M Optional
IP Rating: IP67
Contact: Gold
Plated Rated Voltage: 600V
Rated Current: 28A
Contact Resistance: 3 m
Mechanical Life: >500 Mating Cycles Recommended
Maximum Wire Size: 14AWG
Operating Temperature: -40 ºC ~ 125 ºC

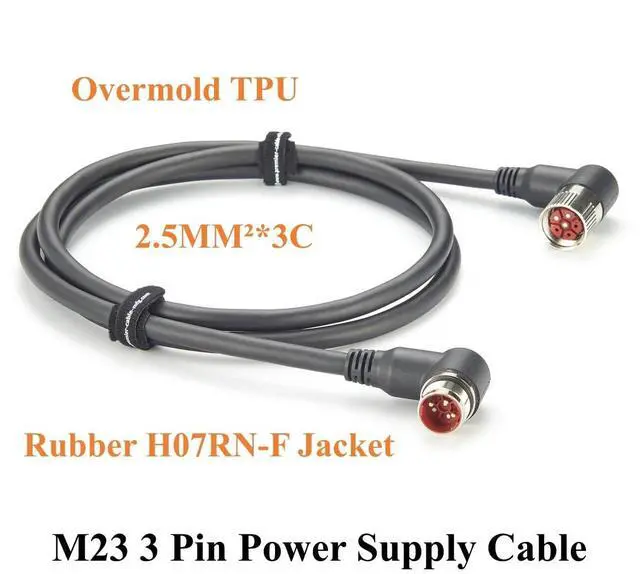

Cable Type: 2.5MM ²*3C, Rubber Jacket H07RN-F Rubber
Cable OD: 12.1MM
Name: Right Angle M23 3 Pin Power Supply Cable DWG No.: PCM-S-0683
Connector A: Right Angle M23 3 Pin Male
Connector Connector B: Right Angle M23 3 Pin Female
Connector Length: 2M/5M Optional
IP Rating: IP67
Contact: Gold
Plated Rated Voltage: 600V
Rated Current: 28A
Contact Resistance: 3 m
Mechanical Life: >500 Mating Cycles Recommended
Maximum Wire Size: 14AWG
Operating Temperature: -40 ºC ~ 125 ºC
Cable Type: 2.5MM ²*3C, Rubber Jacket H07RN-F Rubber
Cable OD: 12.1MM
