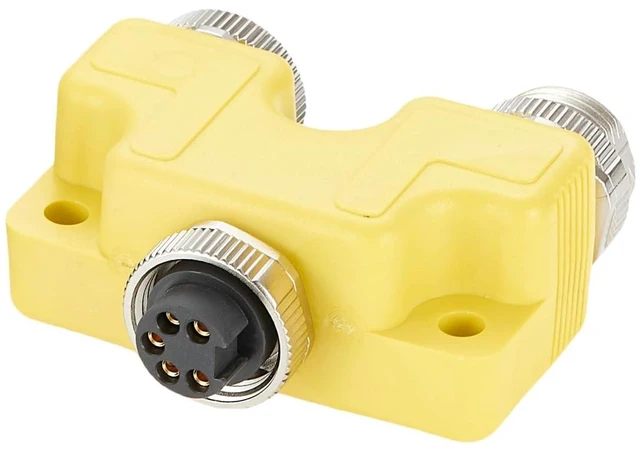

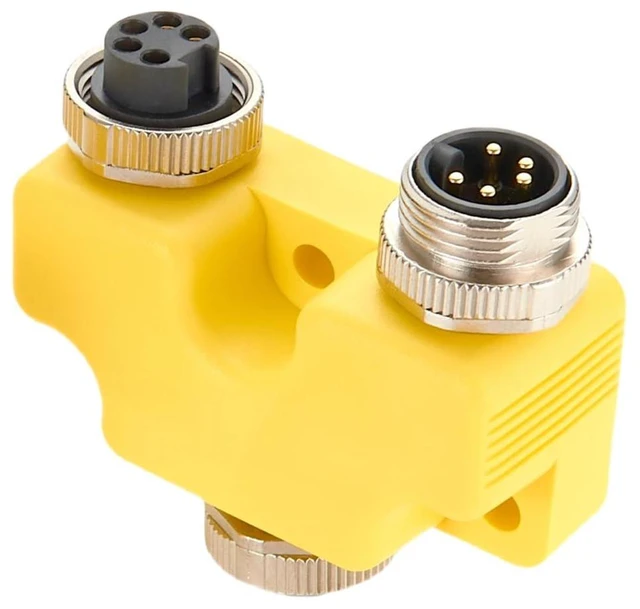

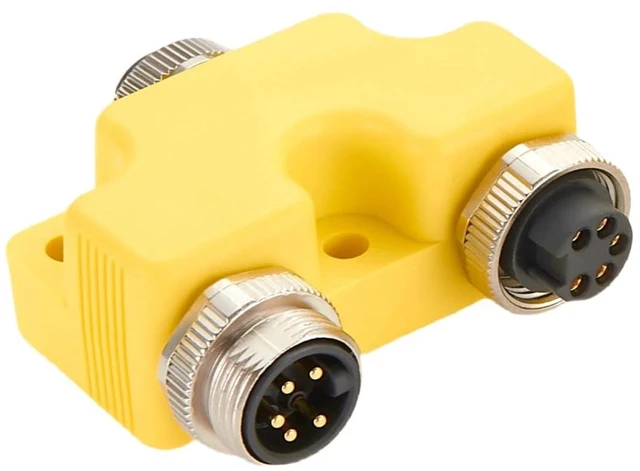

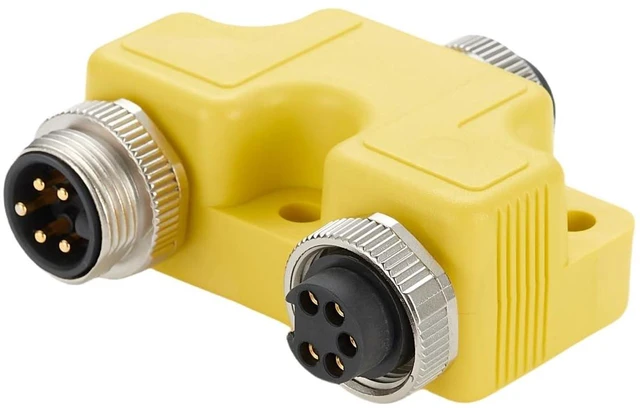

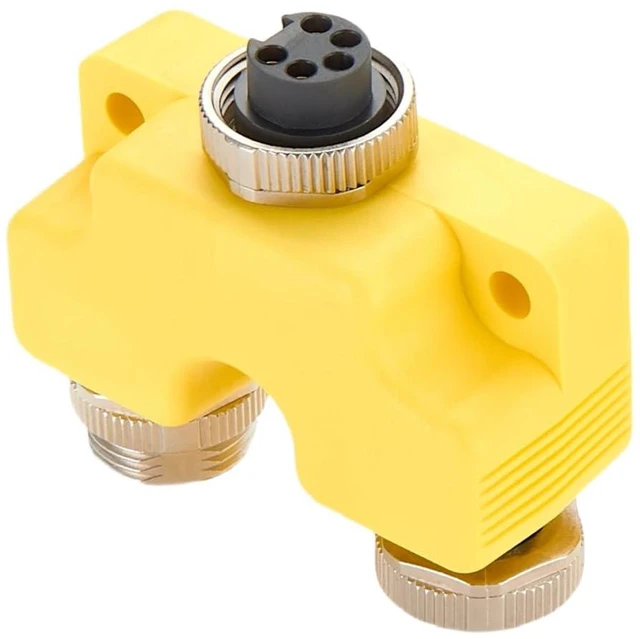

5 Poles 7/8"-16UNF Mini-Change Y Splitter Circular Connector IP67 Straight 3 Way 7/8" Male to Female Y Distributor for DeviceNet CANopen NMEA2000 Profibus Fieldbus Sensor
Limited time offer, ends 09/05 By TERRA HAVEN

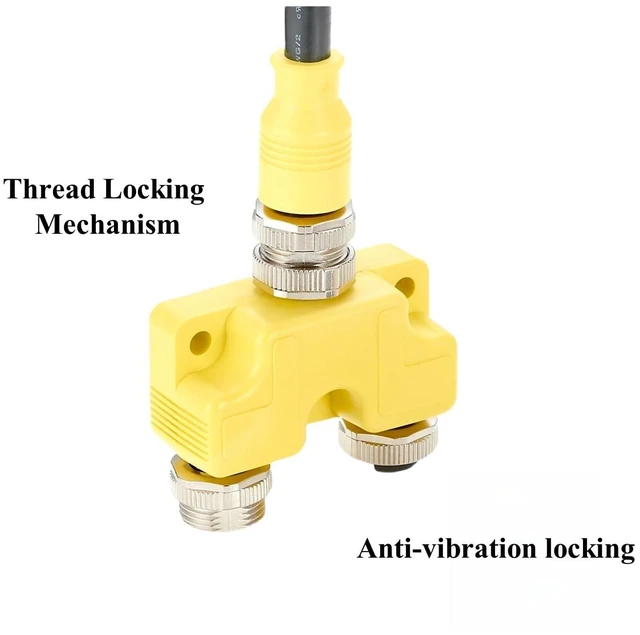

- Standard 7/8"-16UNF InterfaceUses a universal 7/8-inch UNF circular connector, Thread Locking Mechanism, Anti-vibration locking.compatible with a wide range of industrial equipment, suitable for branch connections such as sensors and actuators.; IP67 WaterProof7/8 inch Threaded Connector with 5 Core Construction, IP67 waterproof rating, for stable connection in harsh environments.; High Performance7/8"-16UNF Field Wireable Y Distributor, Gold Plated Contact,PVC Material,high and low temperature resistance, oil resistance, corrosion resistance, ultraviolet resistance,high-frequency plug-in resistance.; 3 Way Y Distributor7/8" Male to 2 Female Y Splitter, one-input and two-output configuration, simplify the wiring plan, and improve the system installation efficiency.; ApplicationStraight 3 Way 7/8" Circular Y Connector Widely Compatible With DeviceNet, NMEA 2000, CANopen,Profibus,IO-Link and other CAN Bus Protocol Systems.For sensors, actuators,motor,marine radar,Automated Assembly, Equipment Packaging, Equipment Robotics, Equipment Bus Systems & Transportation Equipment.; Custom CableWe are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Technical:
Connector: 7/8"-16UNF
Mini-Change Y Splitter Gender: Male to 2*Female Number of
Cores: 5
Pin Jump Wire: 16AWG
Fire Retardant Grade: UL94-V0
Rated Voltage: 300V
Contact: Gold Plated
Shell Material: PVC

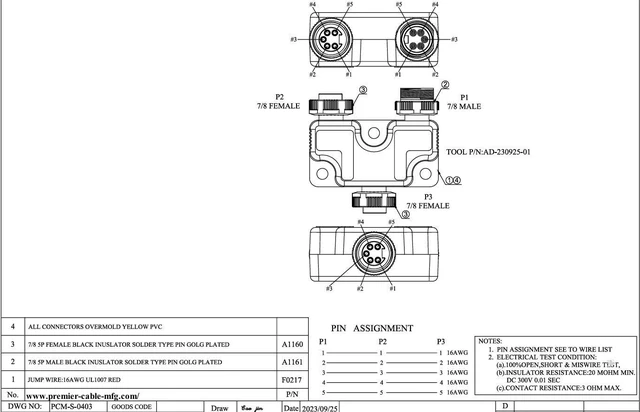

Pin Map: 1:1 >> 2:2, 5:5 Parallel Circuit
Connector: 7/8"-16UNF
Mini-Change Y Splitter Gender: Male to 2*Female Number of
Cores: 5
Pin Jump Wire: 16AWG
Fire Retardant Grade: UL94-V0
Rated Voltage: 300V
Contact: Gold Plated
Shell Material: PVC
Pin Map: 1:1 >> 2:2, 5:5 Parallel Circuit
