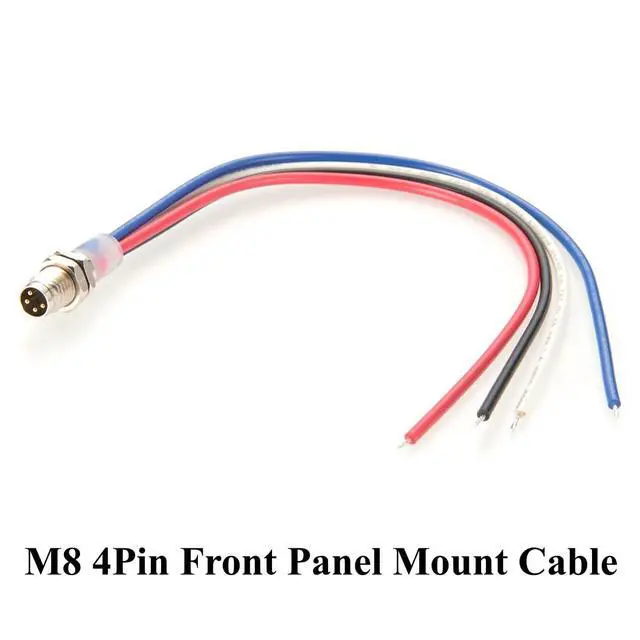

IP67 M8 A-Code 4 Pin Male Connector Receptacle Cable Front Panel Mount Sensor Circular Socket Electrical Cable with Pre-Assembled Pigtail Wires for Industrial Automation, PLCs, Robotics(20cm)

Be the first to review this product...

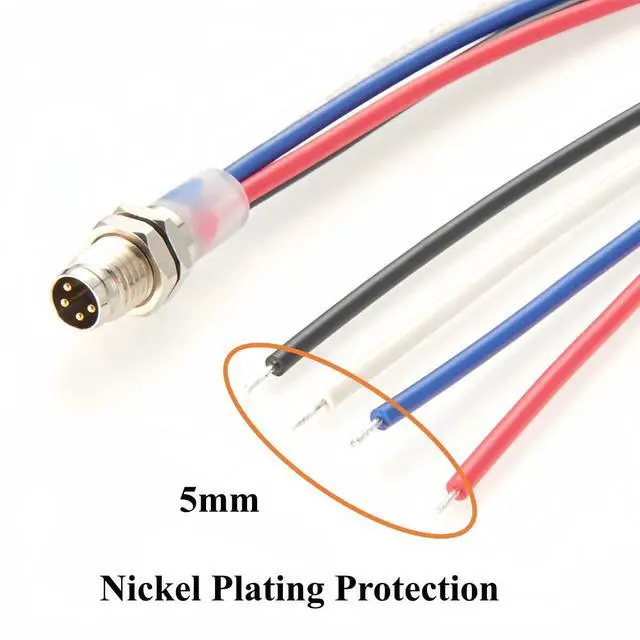

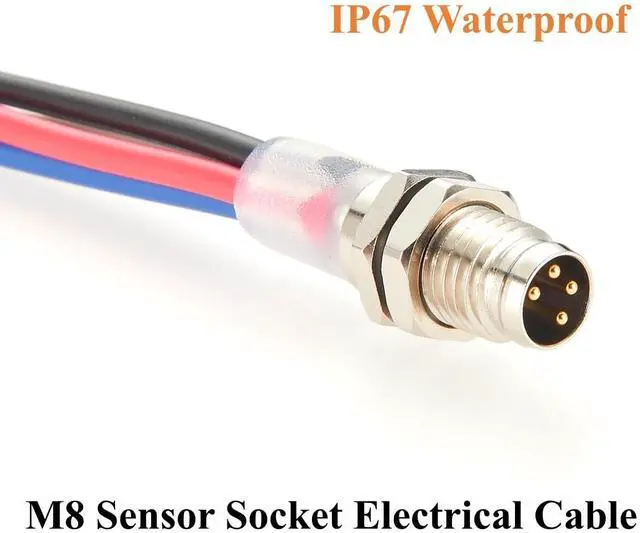

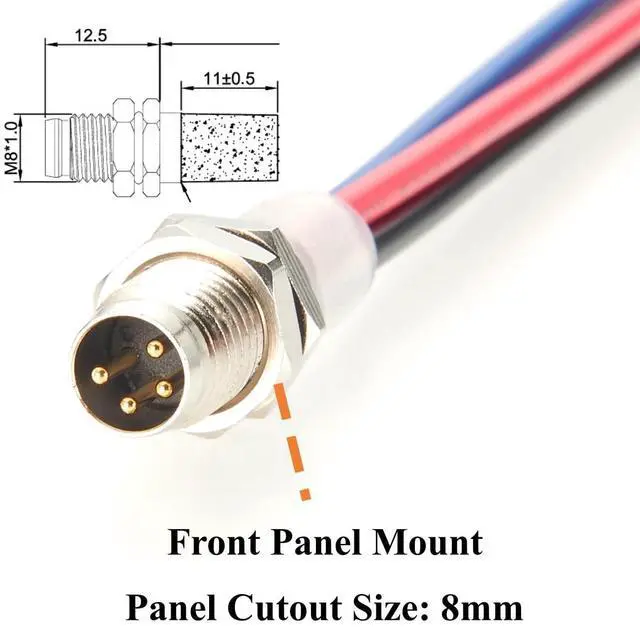

Front Flush Panel Mount The M8 A Code 4Pin Male Connector is Bulkhead front panel mounting, Simply cut a 8mm hole in the board and secure with the nut. for control panels, automation systems, and industrial enclosures.; IP67 Waterproof & Dustproof M8 Field Wireable Electrical Cable, Built with high-quality materials, with Seal Ring, IP67 Waterproof, providing excellent protection in harsh industrial environments.; Pre-wired Cable M8 Circular Socket Receptacle Equipped with 20cm 22AWG Pre-attached Wires, simplifying installation by eliminating the need for additional wiring, for short-distance wiring in compact spaces.; Application M8 4Pin Front Panel Mount Cable for Industrial Automation, Sensors, PLCs, Actuators, Robotics, Machine I/O Module Systems, Data Acquisition, Monitoring Systems, Medical Equipment, Traffic Control Systems, Energy and Power Systems, and so on.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

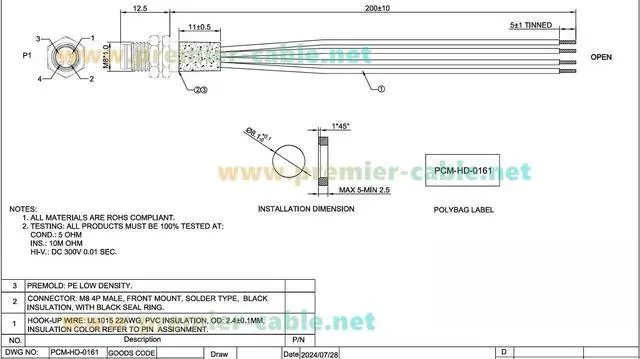

Specification: Product
Name: IP67 Waterproof M8 4Pin Male Front Panel Mount Cable
Part No.: PCM-HD-0161
Connector Type: M8 A Code 4Pin Male
Panel Mount: Bulkhead Flush Front
Panel Mount Length: 20cm
Wire Gauge: UL1015 22AWG
OD: 2.4MM
Protection Class: IP67 Panel
Cutout Size: 8mm

Additional Information
