Main image of IP67 M8 A Code 3Pin Male Front Panel Mount Receptacle Cable M8 Sensor Bulkhead Connector with Pre-Assembled Pigtail Wires for Automation, Control Systems, Robotics(20cm)

Alt view image 2 of 7 - IP67 M8 A Code 3Pin Male Front Panel Mount Receptacle Cable M8 Sensor Bulkhead Connector with Pre-Assembled Pigtail Wires for Automation, Control Systems, Robotics(20cm)

Alt view image 3 of 7 - IP67 M8 A Code 3Pin Male Front Panel Mount Receptacle Cable M8 Sensor Bulkhead Connector with Pre-Assembled Pigtail Wires for Automation, Control Systems, Robotics(20cm)

Alt view image 4 of 7 - IP67 M8 A Code 3Pin Male Front Panel Mount Receptacle Cable M8 Sensor Bulkhead Connector with Pre-Assembled Pigtail Wires for Automation, Control Systems, Robotics(20cm)

Alt view image 5 of 7 - IP67 M8 A Code 3Pin Male Front Panel Mount Receptacle Cable M8 Sensor Bulkhead Connector with Pre-Assembled Pigtail Wires for Automation, Control Systems, Robotics(20cm)

Alt view image 6 of 7 - IP67 M8 A Code 3Pin Male Front Panel Mount Receptacle Cable M8 Sensor Bulkhead Connector with Pre-Assembled Pigtail Wires for Automation, Control Systems, Robotics(20cm)

Alt view image 7 of 7 - IP67 M8 A Code 3Pin Male Front Panel Mount Receptacle Cable M8 Sensor Bulkhead Connector with Pre-Assembled Pigtail Wires for Automation, Control Systems, Robotics(20cm)

Shop All Colorfire Products | Visit TERRA HAVEN Store

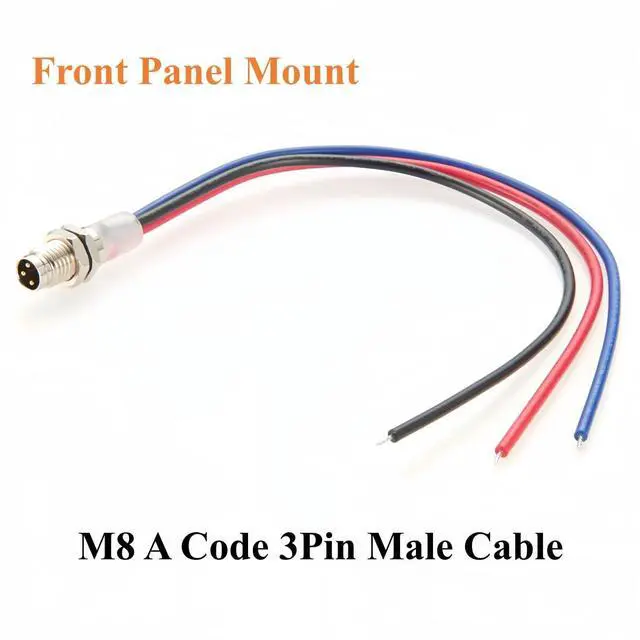

IP67 M8 A Code 3Pin Male Front Panel Mount Receptacle Cable M8 Sensor Bulkhead Connector with Pre-Assembled Pigtail Wires for Automation, Control Systems, Robotics(20cm)

Be the first to review this product...

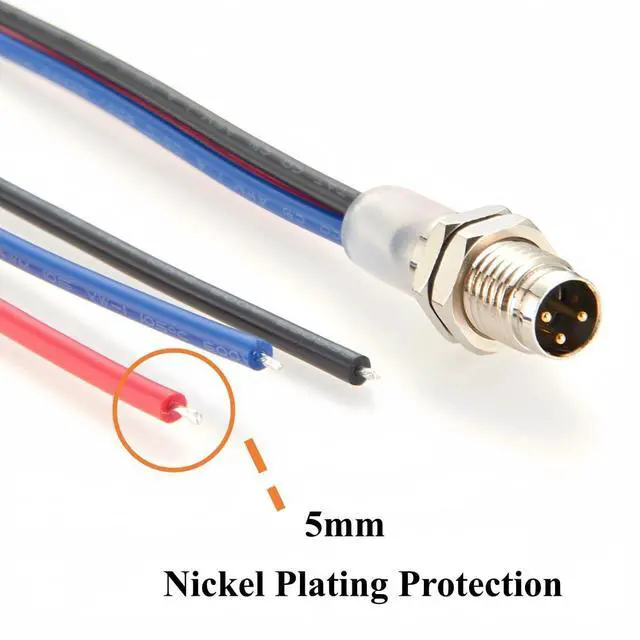

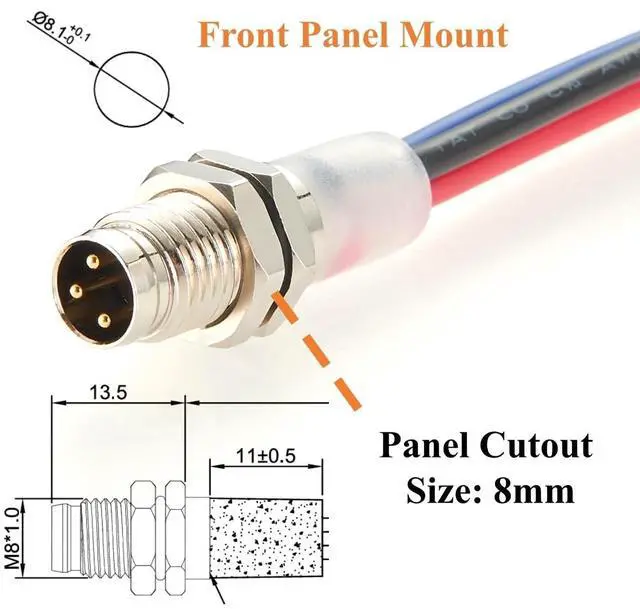

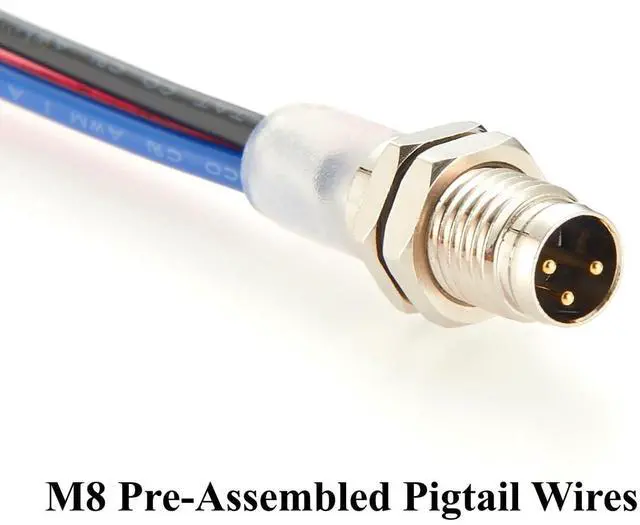

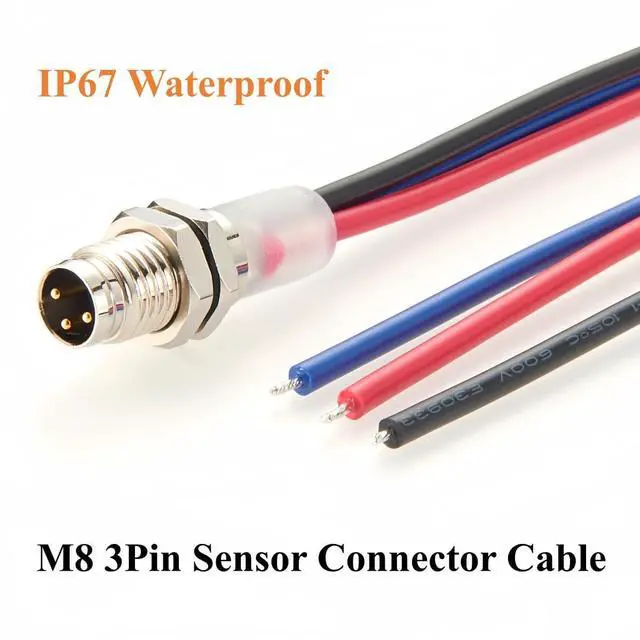

Front Flush Panel Mount The M8 3Pin Male Connector is Bulkhead front panel mounting, Simply cut a 8mm hole in the board and secure with the nut. for control panels, automation systems, and industrial enclosures.; IP67 Waterproof & Dustproof M8 Field Wireable Electrical Cable, Built with high-quality materials, with Seal Ring, IP67 Waterproof, providing excellent protection in harsh industrial environments.; Pre-wired Cable M8 Circular Socket Receptacle Equipped with 20cm 22AWG Pre-attached Wires, simplifying installation by eliminating the need for additional wiring, for short-distance wiring in compact spaces.; Application M8 Front Panel Mount Cable for Industrial Automation, Sensors, Actuators, Robotics, Internet of Things (IoT), Measurement Equipment, Machine I/O Module Systems, Electrical Connections, Outdoor Equipment, Field Device Connections and So On.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

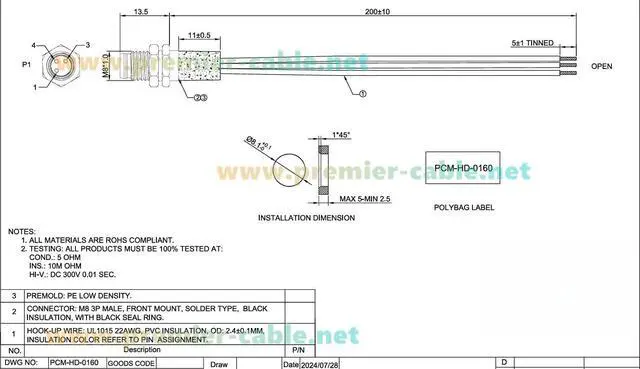

Specification: Product
Name: IP67 Waterproof M8 3Pin Male Sensor Connector Cable
Part No.: PCM-HD-0160
Connector Type: M8 A Code 3Pin Male
Panel Mount: Bulkhead Flush Front
Panel Mount Length: 20cm
Wire Gauge: UL1015 22AWG
OD: 2.4MM
Protection Class: IP67 Panel
Cutout Size: 8mm

Additional Information
First Listed on Newegg	August 24, 2026
