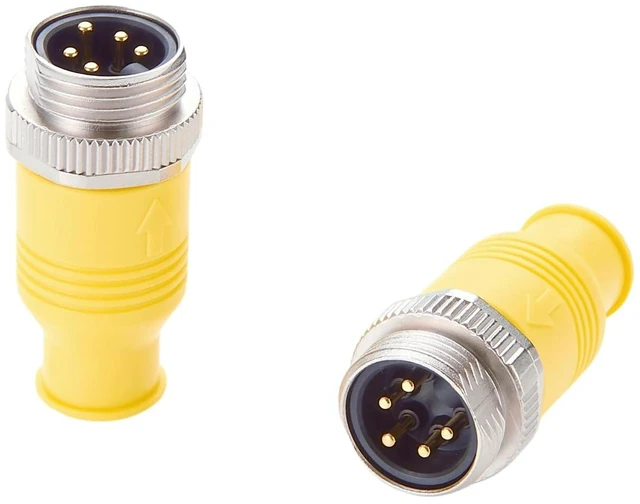

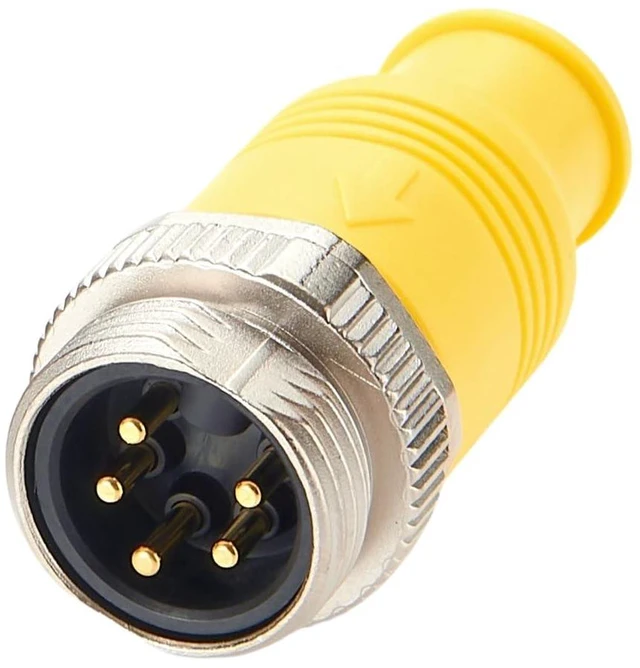

7/8" Mini-Change Male Termination Resistor 120 IP67 Waterproof Mini-C 5Pin Trunk Terminator Compatible 1300390370 for DeviceNet NMEA2000 CAN Bus CANopen (Male)
Limited time offer, ends 09/05 By TERRA HAVEN
- 120 TerminationMini-Change Termination Resistor with 120 Ohm 1/4W, the Resistor is on Pin 4 and Pin 5.preventing data reflections and maintaining network stability.; Rugged 7/8"-16UNF ConnectorUses universal 7/8-inch UNF circular connector, Thread Locking Mechanism, Anti-vibration locking.compatible with a wide range of industrial equipment, suitable for branch connections such as sensors and actuators.; IP67 WaterProofDevicenet Trunk Termination Resistor with Mini-Change Connection Constructed with high-quality PVC materials to withstand dust, moisture, for stable connection in harsh environments.; Easy Installation NMEA2000 Mini-C Terminator Adapt Quick-connect design allows for straightforward installation and replacement, minimizing downtime during system setup or maintenance.; ApplicationMini Termination Resistor Compatible With 1300390370, for DeviceNet,NMEA 2000,CANopen,CAN Bus,Profibus.For Sensors, actuators,automated production lines, machine control systems.; Custom CableWe are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Technical:

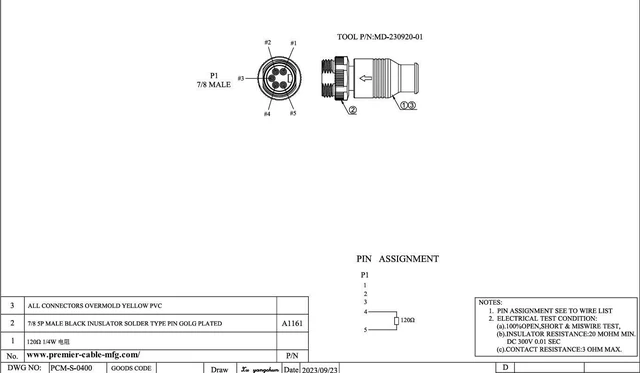

Connector: 7/8" Mini-Change 5 Poles Male
Current Rating: 8 A
Voltage Rating: 50
V Orientation: Straight

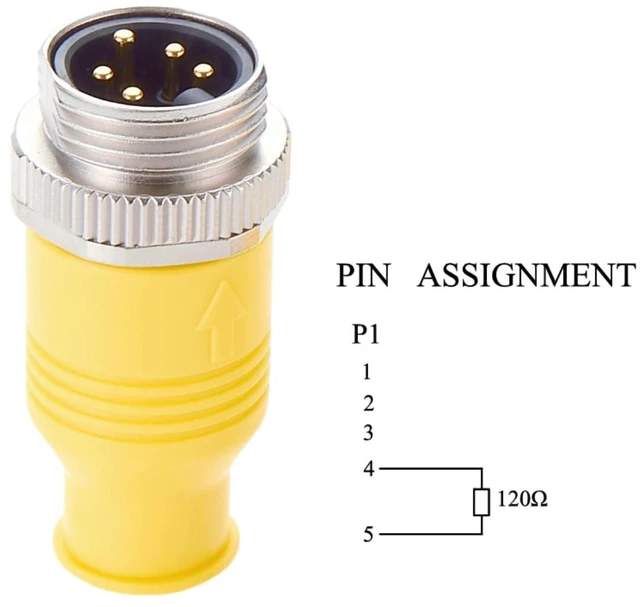

Resistor: 120 Ohm, 1/4W
Waterproof level: IP67
Shell Material: PVC
Contact: Gold
Plated Contact Material: Bronze, Zink Alloy for DeviceNet NMEA2000 CAN Bus CANopen
Connector: 7/8" Mini-Change 5 Poles Male
Current Rating: 8 A
Voltage Rating: 50
V Orientation: Straight
Resistor: 120 Ohm, 1/4W
Waterproof level: IP67
Shell Material: PVC
Contact: Gold
Plated Contact Material: Bronze, Zink Alloy for DeviceNet NMEA2000 CAN Bus CANopen
