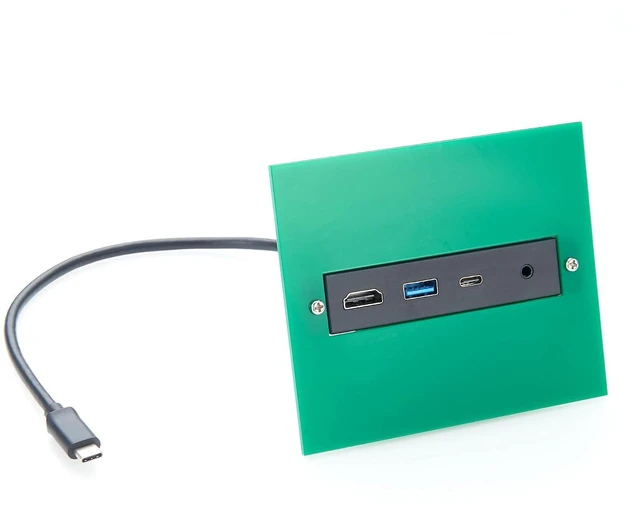

Screw Panel Mount USB C Hub, 4-in-1 Multiport Adapter with 4K@60Hz HDMI, 10Gbps USB-A & USB-C Data Ports, 3.5mm Audio Headphone & Microphone Jack, for Embedded System, PC, Control Cabinets (1.5M)

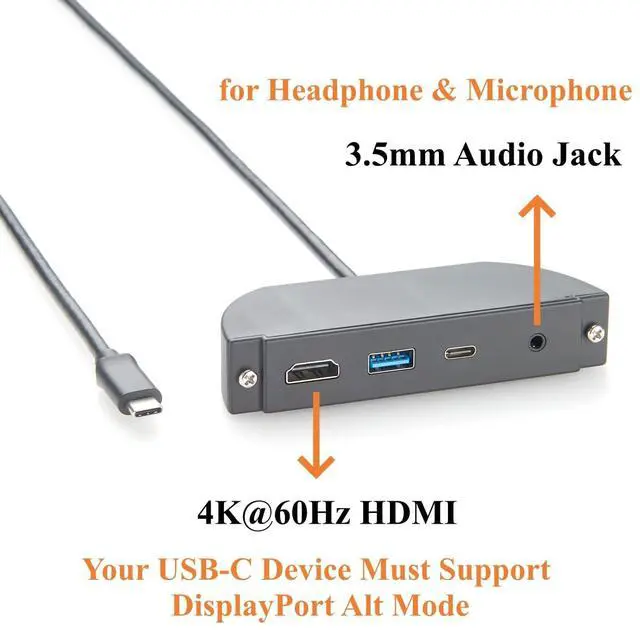

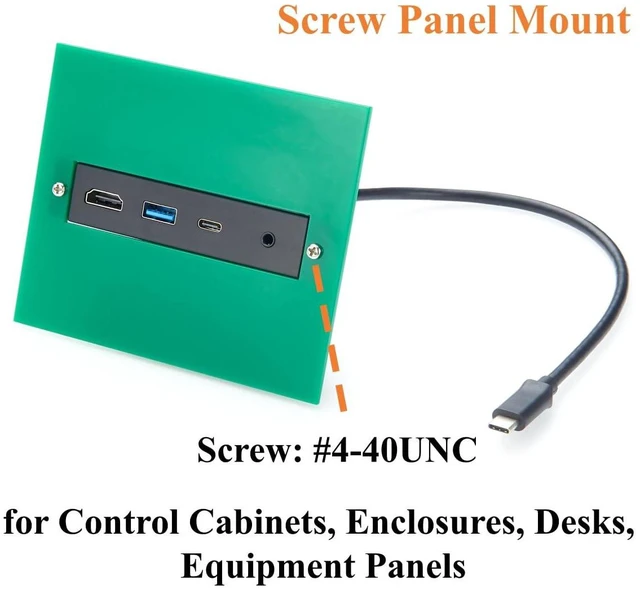

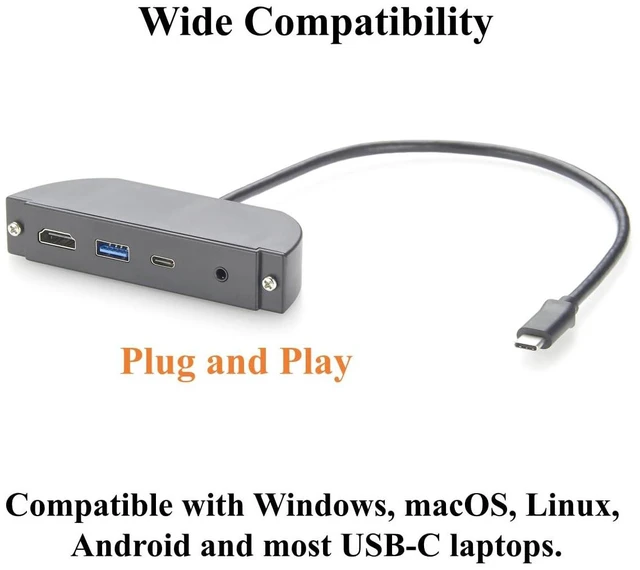

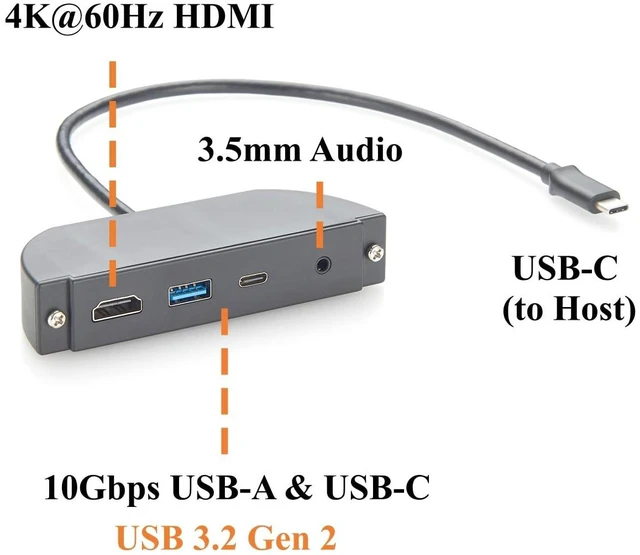

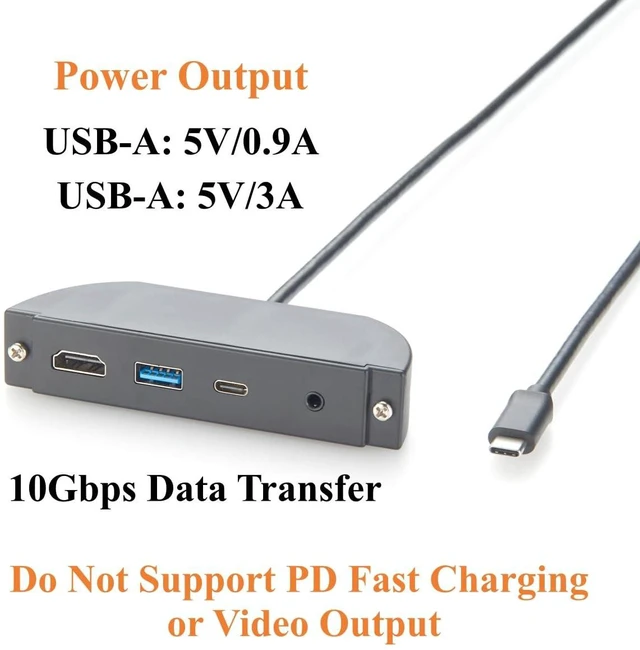

- 4-in-1 USB C Expansion Hub This 4-in-1 USB-C hub expands one USB-C port into 4K@60Hz HDMI, 10Gbps USB-C & USB-A Ports, 3.5mm Audio Jack. No Driver Required, Plug and Play. Compatible with Windows, macOS, Linux, Android and most USB-C laptops.; Screw Panel Mount The USB C Multiport Hub Designed with #4-40UNC Dual Screw Holes, for Fixed Installation On Control Cabinets, Enclosures, Equipment Panels, Desks. for Industrial Equipment, Industrial PC, Office Workstations.; Ultra HD 4K@60Hz HDMI Equipped with a 4K@60Hz HDMI port, delivering sharp visuals and smooth performance for monitors, TVs, and projectorsideal for streaming, presentations, and online meetings.(Note: Your USB-C device must support DisplayPort Alt Mode for HDMI Video Output.); SuperSpeed 10Gbps USB-A & USB-C The USB-C and USB-A ports Both support USB 3.2 Gen 2, delivering data transfer speeds up to 10Gbps for fast and stable performance. The USB-A provides 5V/0.9A Power Output, and USB-C port provides 5V/3A power output for connected external SSDs, flash drives, keyboards, mice, and other USB peripherals.(Note: These ports support data transfer and power output only and do Not Support PD Fast Charging or Video Output.); Clean 3.5mm Audio Input & Output 4-in-1 USB Hub Extender, Features a 3.5mm TRRS Audio Jack for Headphones Output and Microphone Input, delivering clear and stable sound for music, videos, voice calls, and system audio.; High Quality & Durable The Panel Mount 4 in 1 USB C Hub Mul
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

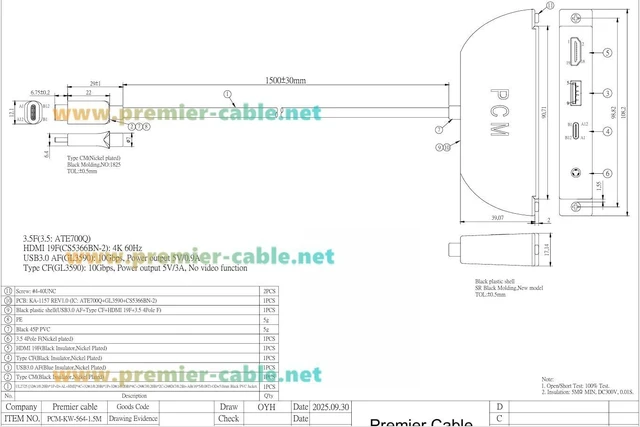

Specification: Product
Name: Screw Panel Mount 4 in 1 USB C Hub Multiport Adapter
Part No.: PCM-KW-564
Length: 0.3 m/ 1.5 m
Optional Mounting Method: Dual Screw
Panel Mount Screw: #4-40UNC
Input Interface: USB-C Male (Connects to Host Device)
HDMI Port: Up
to 4K@60Hz (Note: Your USB-C device must support DisplayPort Alt Mode) 3.5 mm
Audio Jack: for Headphones, Speakers and
Microphone USB-A Port: Up to 10Gbps, Power Output 5V/ 0.9A, USB 3.2 Gen 2
USB-C Port: Up to 10Gbps, Power Output 5V/3A, USB 3.2 Gen 2, *Does NOT Support Video Output or Power Delivery Fast Charging*.
Name: Screw Panel Mount 4 in 1 USB C Hub Multiport Adapter
Part No.: PCM-KW-564
Length: 0.3 m/ 1.5 m
Optional Mounting Method: Dual Screw
Panel Mount Screw: #4-40UNC
Input Interface: USB-C Male (Connects to Host Device)
HDMI Port: Up
to 4K@60Hz (Note: Your USB-C device must support DisplayPort Alt Mode) 3.5 mm
Audio Jack: for Headphones, Speakers and
Microphone USB-A Port: Up to 10Gbps, Power Output 5V/ 0.9A, USB 3.2 Gen 2
USB-C Port: Up to 10Gbps, Power Output 5V/3A, USB 3.2 Gen 2, *Does NOT Support Video Output or Power Delivery Fast Charging*.
