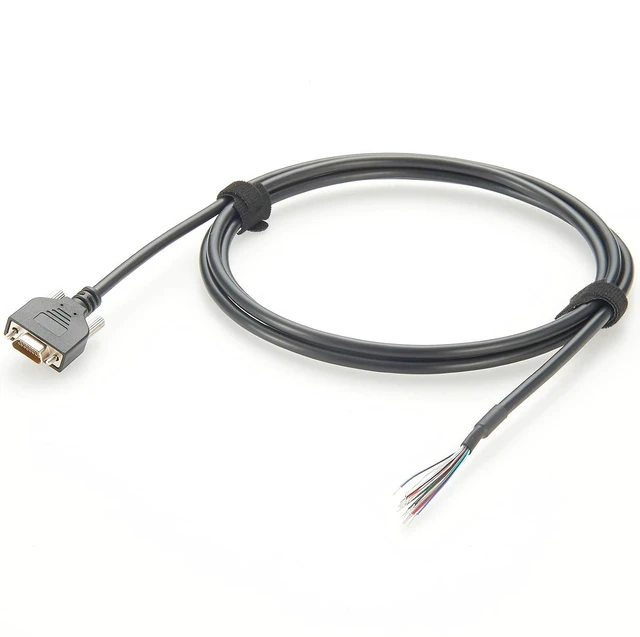

Micro-D 15 Pin Pigtail Cable Industrial Camera GPIO I/O Trigger Cable Compatible with 834229018, Basler 2200000467 (1.8M/5.9FT)
- Micro-D 15 Pin to Open End Pigtail Features a Micro-D 15 Pin connector on one end and open wire pigtail leads on the other end, allowing flexible customization, easy wiring, and convenient connection to terminal blocks, controllers, and electronic systems.; Wide Compatibility Micro-D 15 Pin Pigtail Cable is designed as a replacement cable compatible with 83422-9007, 83422-9013, 83422-9018, and Basler 2200000467. For Basler CXP-12 Interface Cards and and imaWorx cameras.; High-Quality Shielded Cable Industrial Camera GPIO I/O Trigger Cable, built with 28AWG 15-core cable and durable PVC jacket, offering reliable signal transmission, enhanced flexibility, and improved protection against EMI/RFI interference.; Screw Locking Connector Micro-D 15 Pin Connector equipped with #2-56 nickel plated Micro-D screws, ensuring a secure connection, prevent loosening in vibration or mobile environments, for scenes with high vibration, such as industrial cameras on robotic arms or mobile devices.; Wide Applications Micro-D 15 Pin to Open end cable, for industrial cameras, machine vision, GPIO control, camera trigger, I/O interfaces, PLC automation equipment, test and measurement instruments, embedded controllers, data acquisition, and other industrial electronic devices.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems p
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

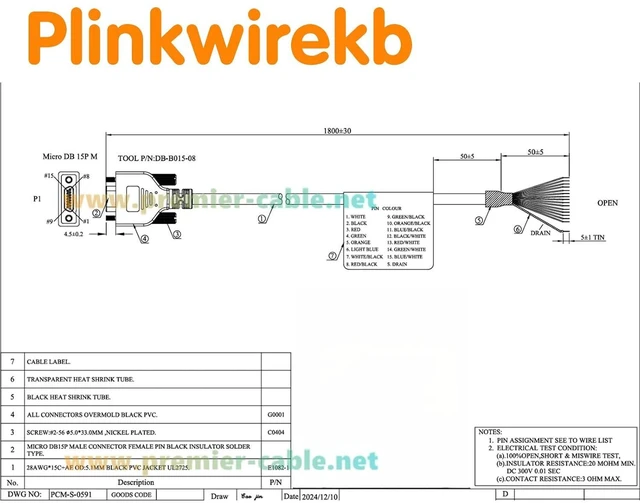

Specification: Product
Name: Micro-D 15Pin to Open End Pigtail Cable
Part No.: PCM-S-0591
Length: 1.8M / 5.9FT
Connector A: Micro-D 15Pin
Connector B: Open End Pigtail
Wire Gauge: UL2725 28AWG*15C+AE, PVC
Jacket OD: 5.3 mm
Micro DB15 Screw: 2-56, OD: 5.0 *33MM, Nickel Plated Compatible With 83422-9007, 83422-9013, 834229018, Basler 2200000467
Name: Micro-D 15Pin to Open End Pigtail Cable
Part No.: PCM-S-0591
Length: 1.8M / 5.9FT
Connector A: Micro-D 15Pin
Connector B: Open End Pigtail
Wire Gauge: UL2725 28AWG*15C+AE, PVC
Jacket OD: 5.3 mm
Micro DB15 Screw: 2-56, OD: 5.0 *33MM, Nickel Plated Compatible With 83422-9007, 83422-9013, 834229018, Basler 2200000467
