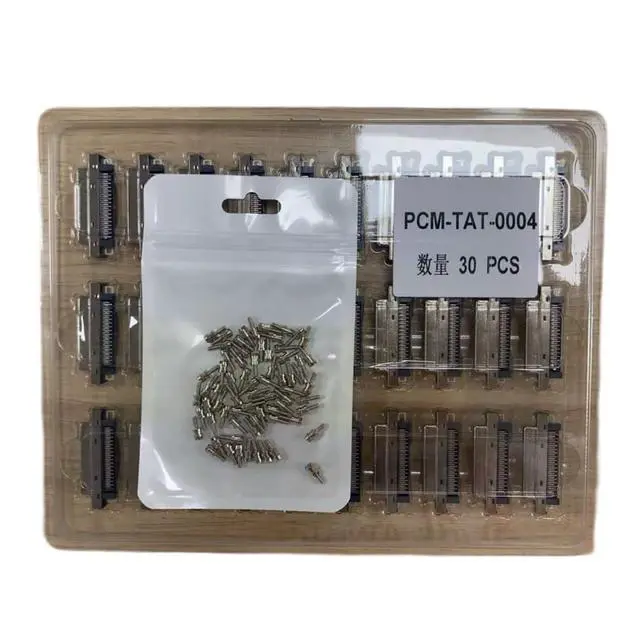

SCSI VHDCI 68 Pin Female Connector, Right Angle SMT PCB Mount Receptacle, 0.8mm Pitch (30PCS)

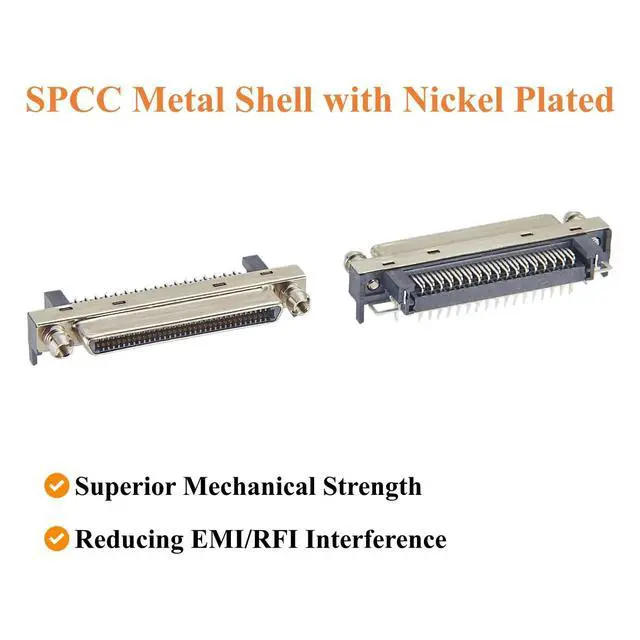

- High Density VHDCI 68 Pin Connector SCSI VHDCI 68 Pin Female Connector features a high-density 68-pin interface with 0.8mm pitch spacing, for SCSI-3, Ultra320 SCSI, DAQ systems, and high-density I/O applications.; Right Angle SMT PCB Mount The VHDCI 68 Pin female Receptacle, designed with a right angle surface mount structure, can be directly mounted onto PCB boards. for electronic devices, interface cards, and industrial control systems.; Durable Metal Shield Shell VHDCI 68 Pin SCSI Connector is built with a SPCC metal shell with nickel plating, offering superior mechanical strength while minimizing EMI/RFI interference, reducing signal crosstalk, and maintaining reliable high-density data transmission.; Electrical Performance Right Angle VHDCI 68 Pin SCSI PCB Connector is designed for stable and accurate signal transmission, featuring a 0.3A current rating per contact, AC 250V dielectric withstand voltage, and 500M insulation resistance.; Wide Applications Compatible with VHDCI 68 Pin male cables, this high-density PCB receptacle is suitable for SCSI storage systems, DAQ (Data Acquisition) equipment, PCI/PCIe interface cards, automated test equipment (ATE), laboratory instruments, industrial computers, measurement systems, and custom electronic equipment designs.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve t
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

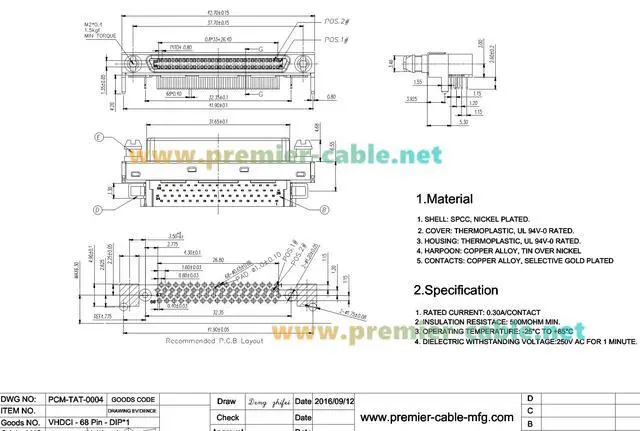

Specification: Product

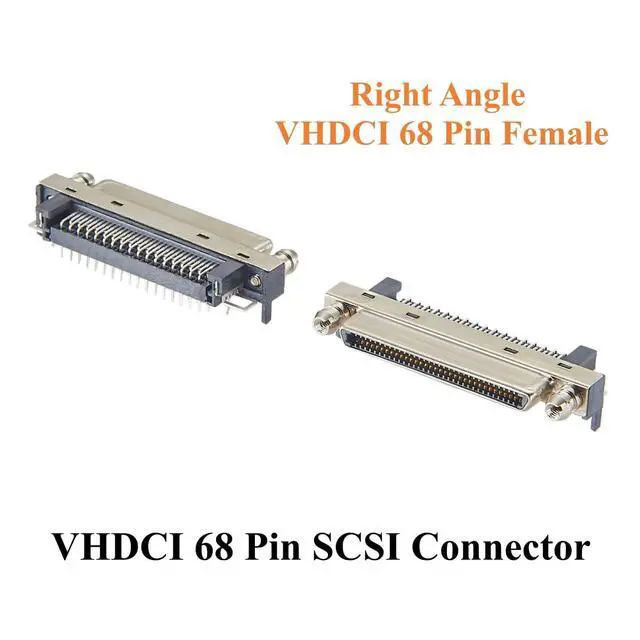

Name: Right Angle VHDCI 68 Pin Female SCSI Connector
Part No.: PCM-TAT-0004

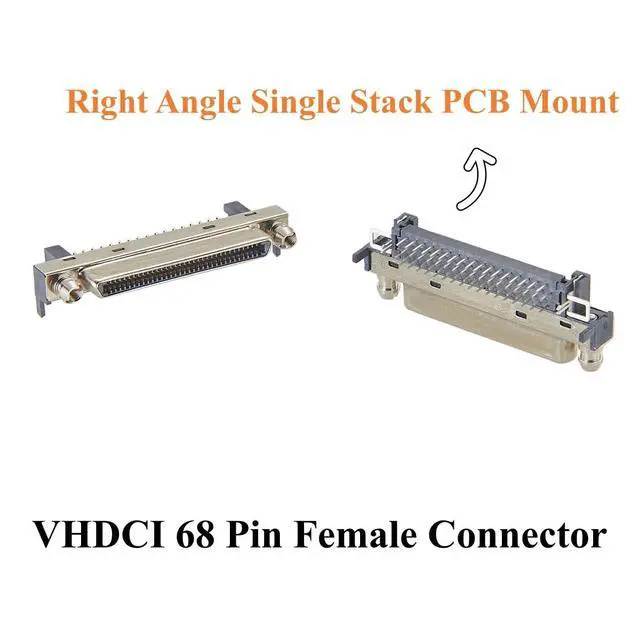

Connector A: VHDCI 68 Pin Female Connector, Right Angle Single Stack PCB SMT
Mount Connector Pitch: 0.8 mm
Shell: SPCC, Nickel
Plated Cover: Thermoplastic, UL 94V-0
RATED Housing: Thermoplastic, UL 94V-0
RATED Harpoon: Copper Alloy, Tin
Over Nickel Contacts: Copper Alloy, Selective Gold Plated

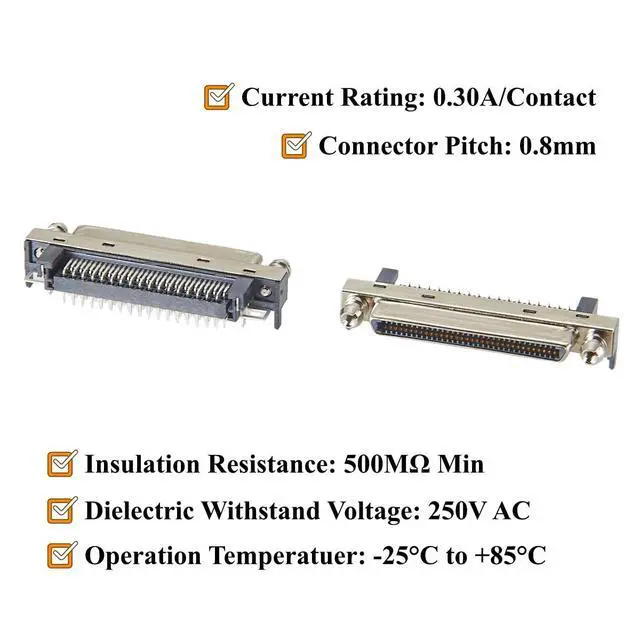

Rated Current: 0.30A /Contact
Insulation Resistance: 500M Min
Operation Temperatuer: -25°C to +85°C
Dielectric Withstand Voltage: 250V AC For 1 Minute
Name: Right Angle VHDCI 68 Pin Female SCSI Connector
Part No.: PCM-TAT-0004
Connector A: VHDCI 68 Pin Female Connector, Right Angle Single Stack PCB SMT
Mount Connector Pitch: 0.8 mm
Shell: SPCC, Nickel
Plated Cover: Thermoplastic, UL 94V-0
RATED Housing: Thermoplastic, UL 94V-0
RATED Harpoon: Copper Alloy, Tin
Over Nickel Contacts: Copper Alloy, Selective Gold Plated
Rated Current: 0.30A /Contact
Insulation Resistance: 500M Min
Operation Temperatuer: -25°C to +85°C
Dielectric Withstand Voltage: 250V AC For 1 Minute
