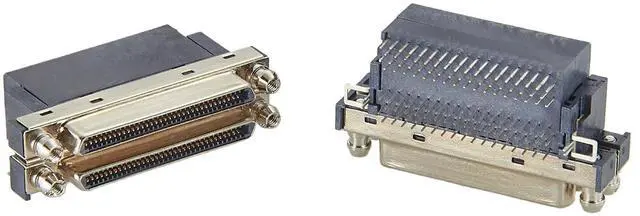

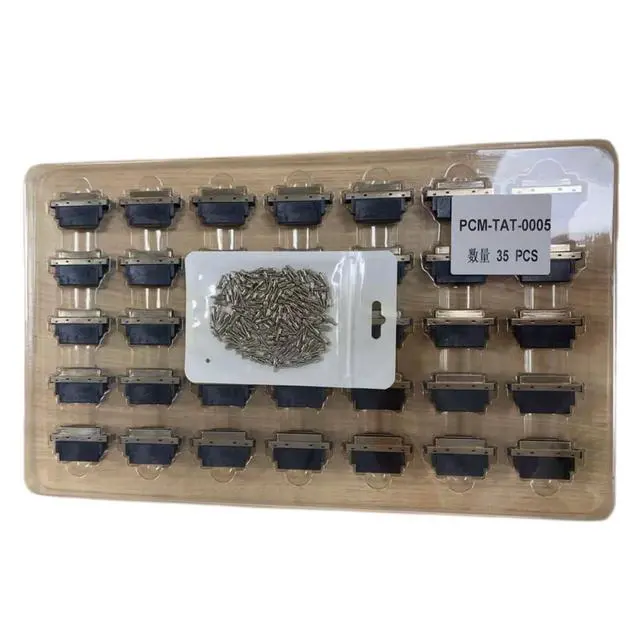

SCSI Dual Port VHDCI 68 Pin Female Connector, Right Angle Dual Stack PCB Mount Receptacle, 0.8mm Pitch I/O Interface (35PCS)

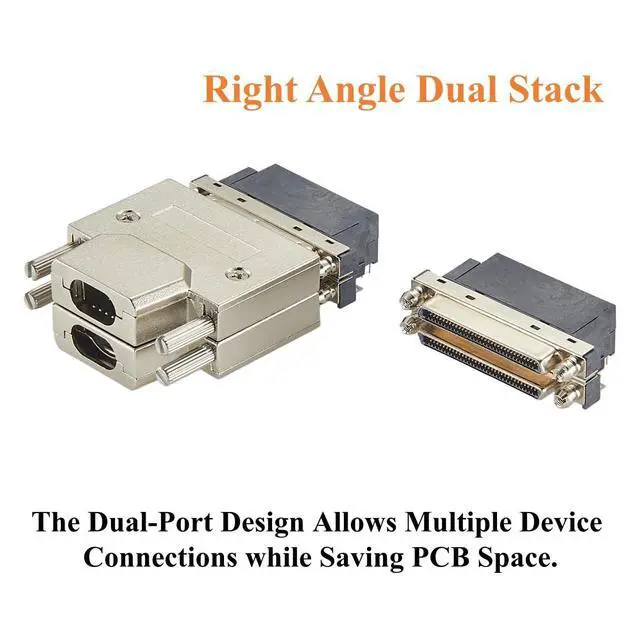

- Dual Port VHDCI 68 Pin Connector SCSI Dual Port VHDCI 68 Pin Female Connector features dual high-density 68-pin interface with 0.8mm pitch spacing, for SCSI-based systems, RAID storage, data acquisition devices. The dual-port design allows multiple device connections while saving valuable PCB space.; Right Angle Dual Stack PCB Mount Features a right-angle dual-stack configuration for space-efficient PCB installation, can be help increase I/O density and directly mounted onto PCB boards, for electronic devices, interface cards, and industrial control systems.; Durable Metal Shield Shell The Dual Stack VHDCI 68 Pin female Receptacle is built with a SPCC metal shell with nickel plating, offering superior mechanical strength while minimizing EMI/RFI interference, reducing signal crosstalk, and maintaining reliable high-density data transmission.; Electrical Performance Right Angle Dual Port VHDCI 68 Pin SCSI PCB Connector is designed for stable and accurate signal transmission, featuring a 0.3A current rating per contact, AC 250V dielectric withstand voltage, and 500M insulation resistance.; Wide Applications Designed for high-density I/O applications including RAID Storage Systems, including RAID Storage Systems, SCSI Storage Devices, SCSI-3 and Ultra320 SCSI equipment, Data Acquisition, Test & Measurement Instruments, Industrial Computers, PCI/PCIe Expansion Cards, automated test equipment (ATE), laboratory instruments, and other industrial devices requiring r
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product
Name: Right Angle Dual Port VHDCI 68 Pin Female SCSI Connector
Part No.: PCM-TAT-0005

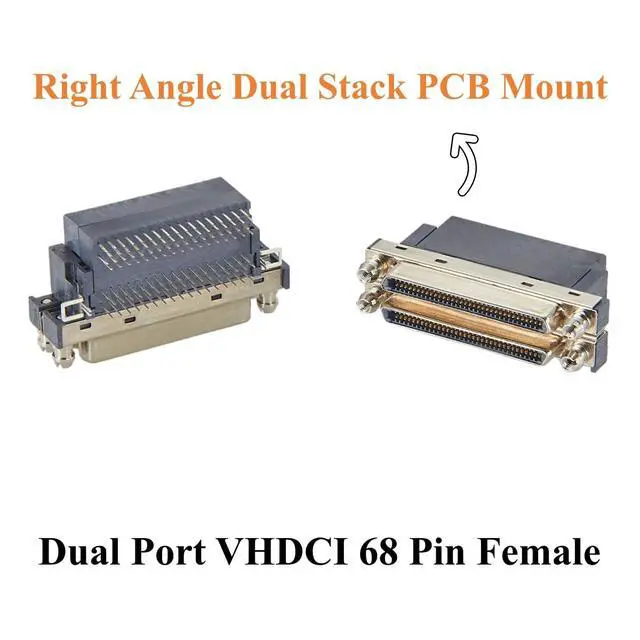

Connector A: Dual Port VHDCI 68 Pin Female Connector, Right Angle Dual Stack PCB
Mount Connector Pitch: 0.8 mm

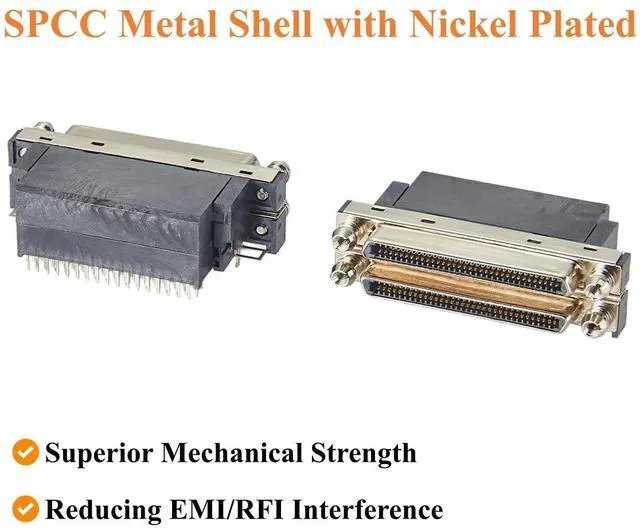

Shell: SPCC, Nickel
Plated Cover: Thermoplastic, UL 94V-0
RATED Housing: Thermoplastic, UL 94V-0
RATED Harpoon: Copper Alloy, Tin
Over Nickel Contacts: Copper Alloy, Selective Gold Plated

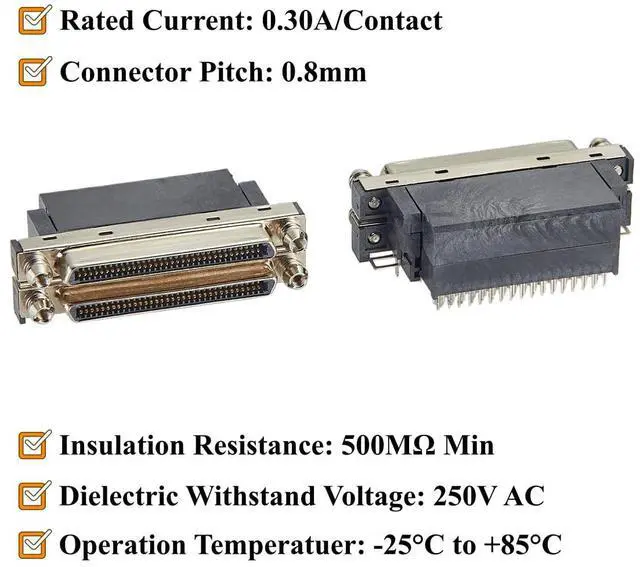

Rated Current: 0.30A /Contact
Insulation Resistance: 500M Min
Operation Temperatuer: -25°C to +85°C
Dielectric Withstand Voltage: 250V AC For 1 Minute
Name: Right Angle Dual Port VHDCI 68 Pin Female SCSI Connector
Part No.: PCM-TAT-0005
Connector A: Dual Port VHDCI 68 Pin Female Connector, Right Angle Dual Stack PCB
Mount Connector Pitch: 0.8 mm
Shell: SPCC, Nickel
Plated Cover: Thermoplastic, UL 94V-0
RATED Housing: Thermoplastic, UL 94V-0
RATED Harpoon: Copper Alloy, Tin
Over Nickel Contacts: Copper Alloy, Selective Gold Plated
Rated Current: 0.30A /Contact
Insulation Resistance: 500M Min
Operation Temperatuer: -25°C to +85°C
Dielectric Withstand Voltage: 250V AC For 1 Minute
