Raypodo 14-inch Wall Mount Tablet, RK3568 CPU 2GB+16GB, Android 11/Linux Ubuntu 18.04, 10-Point Capacitive Touch Digital Signage, High-Definition Indoor Displays for Commercial Use, Versatile Electron

Ideal for a Wide Range of Applications

This Raypodo 14-inch Wall Mount Tablet (RK3568, 2+16GB) is a versatile Digital signage and Electronic display that is widely applicable to various indoor commercial scenarios. It provides professional information dissemination and interactive solutions for different industries, meeting the diverse needs of businesses.

In the retail industry, this Commercial display can be installed on the walls of product shelves or placed at checkout counters as an Indoor display. It can display product details, promotional activities, preferential policies and brand stories through high-definition videos and pictures. The attractive display effect of the Digital signage can effectively attract customers' attention, stimulate their purchase desire and promote sales growth.

In the catering industry, such as restaurants, cafes and fast-food restaurants, this product can be used as a Digital kiosk to provide customers with self-service ordering and payment services. Customers can easily browse electronic menus, view food pictures, select dishes, customize ingredients and complete payments through the touch screen, which greatly shortens the waiting time for ordering and improves the efficiency of restaurant operations.

In office buildings, this Digital signage is an important tool for internal communication and information release. It can be installed in lobbies, corridors and meeting rooms to display corporate announcements, meeting schedules, employee notices, wayfinding information and corporate culture promotional videos.

In healthcare institutions such as clinics and hospitals, this Commercial display can play a positive role in optimizing the medical service process. It can be installed in waiting areas to display patients' waiting time, health education materials, doctor profiles, medical process introductions and prevention tips for common diseases, helping to alleviate patients' anxiety during waiting.

In educational institutions including primary and secondary schools and universities, this Electronic display can be widely used in classrooms, libraries, campus corridors and teaching buildings. It can display course schedules, campus announcements, activity notices, educational promotional videos and examination information, helping to create a good educational atmosphere.

Specifications at a Glance

System - CPU Rockchip RK3568, Quad-core Cortex-A55 up to 2.0GHz, 64bit

System - GPU Mali-G52-2EE high performance GPU

System - NPU Supports 0.8T & INT8/INT16

System - RAM 2GB LPDDR4X/LPDDR4

System - Internal Memory 16GB EMMC

System - Operation System Android 11 Or Linux Ubuntu 18.04

Touch Screen 10-Point capacitive touch

Display - Panel 14-inch LCD IPS panel

Display - Resolution 1280*800/1920*1080

Display - Display Mode Normally black, IPS

Display - Luminance 220-250cd/m2

Display - Aspect Ratio 16:9/16:10

Network - WiFi 802.11b/g/n

Network - Ethernet 100M/1000M ethernet

Network - Bluetooth Bluetooth 4.0

Interface - Card Slot TF card (Max Support 64GB)

Interface - USB USB *2

Interface - HDMI HDMI Output

Interface - RJ45 RJ45 with POE (IEEE802.3at/af)

Interface - Power Jack DC power input

Interface - Earphone 3.5mm earphone + Microphone (Optional)

Function - Play Mode Supports multiple playback modes such as loop, timing, and insertion

Function - PTC Live Clock Supported

Function - Auto ON/OFF Supported

Function - Motion Sensor Standard No Support Motion Sensor

Media Play - Video Format MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc., support up to 4K

Media Play - Audio Format MP3/WMA/AAC etc.

Media Play - Photo JPEG

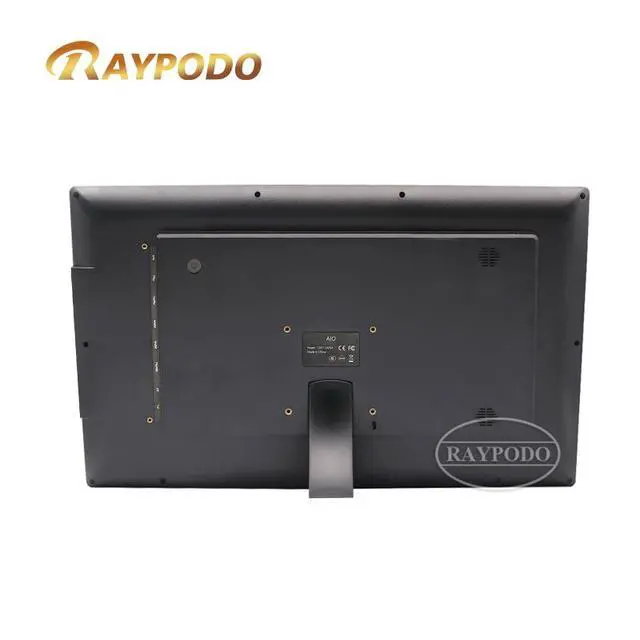

Accessories - VESA 75x75mm

Accessories - Speaker 2*1.5W/2*8 2W

Accessories - Microphone Standard No Microphone, support customize

Accessories - Camera Standard Front Camera 2.0 M/P

Accessories - Language Multi-language

Accessories - Adapter 12V/2A Adapter

Q&A

Q: Can this Digital signage play 4K videos smoothly? A: Yes, it can play 4K videos smoothly. The product is equipped with Rockchip RK3568 CPU and Mali-G52-2EE high-performance GPU, which have strong video decoding capabilities. It supports various video formats up to 4K resolution, bringing clear and shocking visual effects to customers and making Commercial displays more attractive.

Q: Does this Electronic display support POE power supply? What are the advantages of POE power supply? A: Yes, it supports POE power supply (compatible with IEEE802.3at/af). The advantage of POE power supply is that it can transmit power and data through a single network cable, which simplifies the installation process, reduces wiring costs and makes the wiring more neat and beautiful. It is very suitable for indoor Commercial displays scenarios such as office buildings and shopping malls that require neat wiring.
