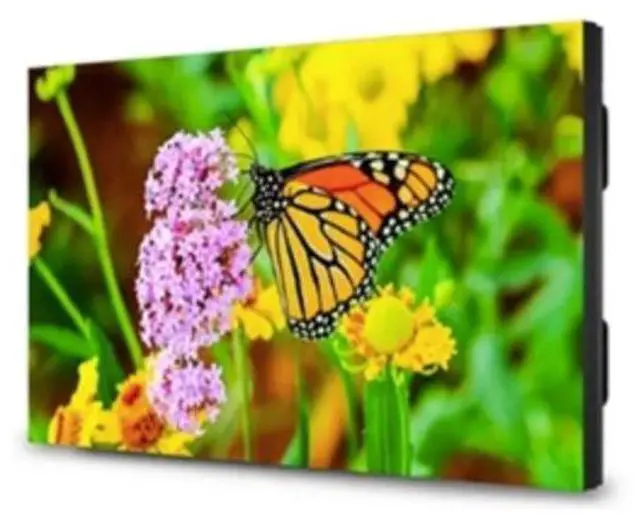

Sharp 55" Ultra-Narrow Bezel Professional-Grade Display Model PN-UN553S

Brand Sharp,

Model PN-UN553S

Product Name:55" Ultra-Narrow Bezel Professional-Grade Display

Product Type:Digital Signage Display,

Video Wall Compatible:Yes,

Bezel Width (Bottom):17.3 mil,

Bezel Width (Top):17.3 mil,

Bezel Width (Left):17.3 mil,

Bezel Width (Right):17.3 mil,

Panel Technology:Super In-plane Switching (S-IPS) Technology,

Operation Hours:24 Hours/7 Days,

Number of Screens:1,

Viewable Screen Size:55",

Screen Size Class:55",

Display Screen Type:LCD,

Display Resolution:1920 x 1080,

High Dynamic Range (HDR):Yes,

Response Time:8 ms,

Pixel Pitch:24.8 mil,

Aspect Ratio:16:9,

Backlight Technology:Direct LED,

Orientation:Landscape/Portrait,

Scan Format:1080p,

Native Contrast Ratio:1,100:1,

Brightness:700 Nit,

Ethernet:Yes,

USB:Yes,

DVI:Yes,

HDMI:Yes,

DisplayPort:Yes,

Serial:Yes,

Number of HDMI Inputs:2,

Number of DisplayPorts:2,

DisplayPort Output:Yes,

RS-232C Input:Yes,

Number of HDMI 2.0 Ports:2,

Number of DisplayPort 1.2 Ports:2,

DVI-D In:Yes,

Input Voltage:

120 V AC,

230 V AC,

Minimum Operating Temperature:41°F (5°C),

Maximum Operating Temperature:104°F (40°C),

Minimum Storage Temperature:-4°F (-20°C),

Maximum Storage Temperature:140°F (60°C),

Minimum Operating Humidity:20%,

Maximum Operating Humidity:80%,

Minimum Storage Humidity:10%,

Maximum Storage Humidity:90%,

VESA Mount Standard:400 x 400,

Height:26.8",

Width:47.7",

Depth:3.9",

Weight (Approximate):61.95 lb,

Package Contents:

55" Ultra-Narrow Bezel Professional-Grade Display,

2.0m DisplayPort cable,

2.0m HDMI cable,

3.0m Power cord,

Clamp for Power Cable,

Contents Sheet,

LAN cable,

SD Card Cover,

Setup Manual,

Application/Usage:

Professional Audio/Video,

Industrial,

Limited Warranty:3 Year,

Marketing Information:

55" Ultra-Narrow Bezel Professional-Grade Display

Sharp's 55" PN-UN553S sets the standard for quality color reproduction in video wall environments. Direct LED backlighting and factory calibration for brightness intensity, gamma, uniformity, white point and RGB allows for ideal panel settings and an easy out-of-the-box experience. Brand new panel technology minimizes the bezel gap of this display, allowing for a < 1.0mm distance between adjacent displays with a 0.44mm even and near bezel-less design per unit. This display is integrated with the proprietary SpectraView Engine, which not only allows for ultimate color control but also allows for increased color calibration capabilities including white copy, self calibration to an external sensor and manual CIE chromaticity adjustment for maximum control when color matters most. This display also includes both a DisplayPort and an HDMI Out connections for daisy chaining signals up to 4K UHD. This new generation of display also received a full chassis upgrade with faster processing times, evolved daisy chain performance, and new TileMatrixing capabilities.

Features

SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability,

Near Bezel-less panel technology allows for an even 0.44mm design, allowing for the distance between adjacent displays to be <1.0mm,

700cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience,

Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation,

HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution,

TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall,

Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display,
