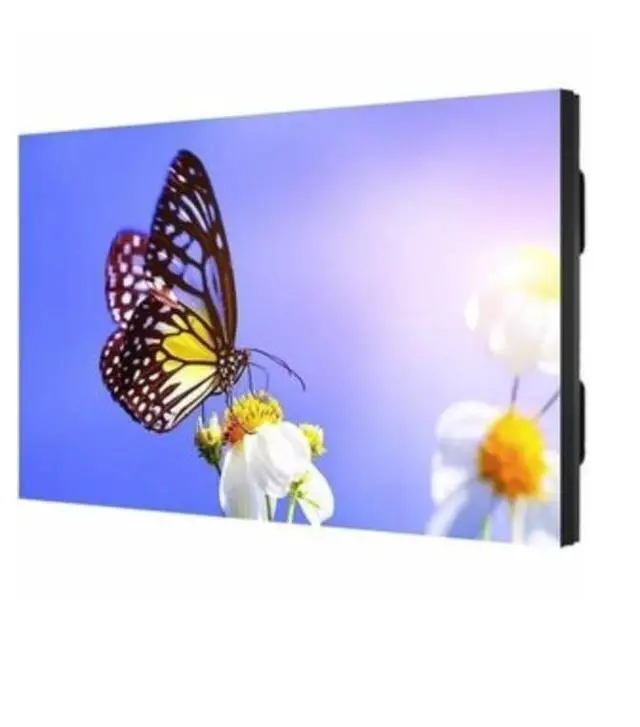

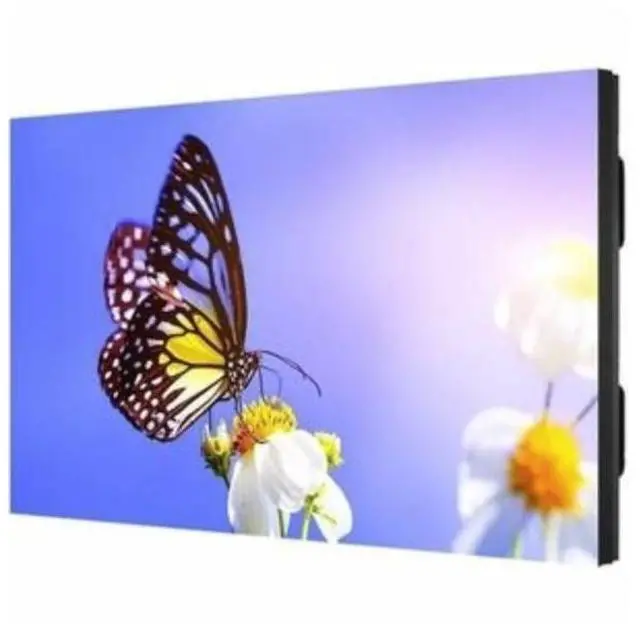

Sharp 55" Ultra-Narrow Bezel Professional-Grade Display Model PN-UN553V

Brand Sharp,

Model PN-UN553V

Product Name:55" Ultra-Narrow Bezel Professional-Grade Display

Product Type:Digital Signage Display,

Video Wall Compatible:Yes,

Bezel Width (Bottom):17.3 mil,

Bezel Width (Top):17.3 mil,

Bezel Width (Left):17.3 mil,

Bezel Width (Right):17.3 mil,

Panel Technology:Super In-plane Switching (S-IPS) Technology,

Operation Hours:24 Hours/7 Days,

Vertical Frequency:23Hz to 86Hz,

Number of Screens:1,

Viewable Screen Size:55",

Screen Size Class:55",

Display Screen Type:LCD,

Display Resolution:1920 x 1080,

High Dynamic Range (HDR):Yes,

Response Time:8 ms,

Pixel Pitch:24.8 mil,

Aspect Ratio:16:9,

Backlight Technology:Direct LED,

Orientation:Landscape/Portrait,

Scan Format:1080p,

Native Contrast Ratio:1,10,

Brightness:500 Nit,

Ethernet:Yes,

USB:Yes,

DVI:Yes,

HDMI:Yes,

DisplayPort:Yes,

Serial:Yes,

Number of HDMI Inputs:2,

Number of DisplayPorts:2,

DisplayPort Output:Yes,

RS-232C Input:Yes,

DVI-D In:Yes,

DisplayPort In:Yes,

Input Voltage:

120 V AC,

230 V AC,

Minimum Operating Temperature:41°F (5°C),

Maximum Operating Temperature:104°F (40°C),

Minimum Storage Temperature:-4°F (-20°C),

Maximum Storage Temperature:140°F (60°C),

Minimum Operating Humidity:20%,

Maximum Operating Humidity:80%,

Minimum Storage Humidity:10%,

Maximum Storage Humidity:90%,

VESA Mount Standard:400 x 400,

Mount Type:

Table Mount,

Stand Mount,

Height:26.9",

Width:47.7",

Depth:4.2",

Weight (Approximate):63.05 lb,

Housing Material:Metal,

Application/Usage:Industrial,

Marketing Information:

Sharp's 55" PN-UN553V sets the standard for quality color reproduction in video wall environments. Direct LED backlighting and factory calibration for brightness intensity, gamma, uniformity, white point and RGB allows for ideal panel settings and an easy out-of-the-box experience. Brand new panel technology minimizes the bezel gap of this display, allowing for a <1.0mm distance between adjacent displays with a 0.44mm even and near bezel-less design per unit. This display is integrated with the proprietary SpectraView Engine, which not only allows for ultimate color control but also allows for increased color calibration capabilities including white copy, self calibration to an external sensor and manual CIE chromaticity adjustment for maximum control when color matters most. This display also includes both a DisplayPort and an HDMI Out connections for daisy chaining signals up to 4K UHD. This new generation of display also received a full chassis upgrade with faster processing times, evolved daisy chain performance, and new TileMatrixing capabilities.

Features:

SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability

Near Bezel-less panel technology allows for an even 0.44mm design, allowing for the distance between adjacent displays to be <1.0mm

500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience,

Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation,

HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution,

TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall,

Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display,
