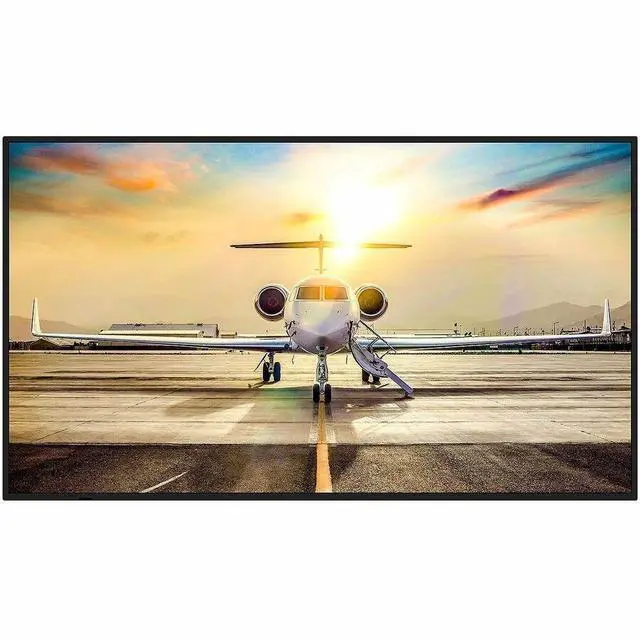

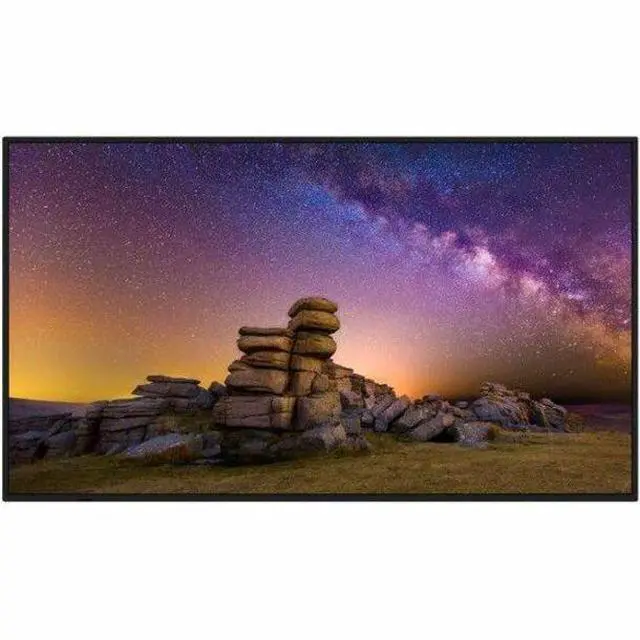

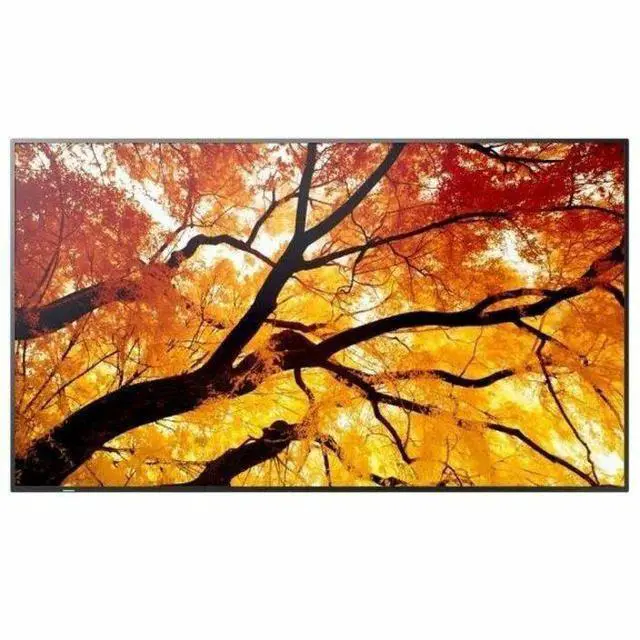

Sharp 98" Ultra High Definition Professional Display Model PN-M982

Brand Sharp,

Model PN-M982

Panel Technology IPS,

Viewable Image Size 98",

Aspect Ratio 16:9,

Screen Resolution 3840x2160,

Supported Resolutions DIsplayPort: V1.4 - Up to 3840 x 2160 (60Hz), HDMI: V2.0 - Up to 4096 x 2160 (60Hz),

Pixel Pitch 0.562 mm,

Pixels Per Inch 45 @ native resolution,

Backlight Type LED Direct-Lit,

Brightness (typical) 550 cd/m2,

Contrast Ratio (typical) 1200:1,

Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10,

Response Time (Gray to Gray) 8 ms,

Refresh Rate 60Hz,

Active Screen Area 84.99 x 47.81 in. / 2158.85 x 1214.35mm,

Orientation Landscape/Portrait,

Dimming Capability Local Dimming Capable,

Displayable Colors More than 1.08 billion (10-bit dithered),

Color Temperature (Max) (°K) 15000K,

Color Temperature (Min) (°K) 3000K,

Gamma (Typical) Custom adjustment from 0.5 - 4.0 (0.1 increments) through SpectraView Engine, sRGB, L Star, Rec. 1886, HDR-Hybrid Log, HDR-ST2084 (PQ), DICOM, Programmable,

Synchronization Range:

Horizontal (Digital) 15.0 - 135.0kHz (HDMI), 22.0 - 134.0 (DisplayPort)

Vertical (Digital) 23.0 - 76.0Hz,

Signal Compatibility:

PC Signal Compatibility Yes,

Macintosh Signal Compatibility Yes,

Video Digital TMDS / DisplayPort:

External Control LAN In/Out and RS232 In - Full external control capabilities,

Connectivity - Input Terminals,

Digital HDMI (2.0 x 2 with HDCP), DisplayPort (1.4 x 2 with HDCP), USB-C (DP-Alt Mode, U,

Audio DisplayPort Audio, Audio via USB-C (DP-Alt), HDMI Audio x2

External Control RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)

Data USB-C (Hub, 20V/3.25A), USB-A (Service, 5V/2.5A), USB-A (Downstream, 5V/0.9A), USB-C (Downstream, 5V/1.5A),

Connectivity - Output Terminals,

Digital HDMI (2.0), DisplayPort (1.4),

Audio 3.5mm Mini-Jack,

External Control LAN (100Mb),

Power Consumption (typical),

On 210W,

ECO Mode Standby <0.5W,

Network Standby 0.5W,

Power Consumption (max) 350W (Max Brightness), 595W ,(Brightness Max, SDM Max, Volume Max, USB-C Power Activated),

Power Savings Mode 2W,

Power Requirements 6.7A - 2.7A @ 100V - 240V,

Physical Specifications:

Bezel Width (Left/Right, Top/Bottom) 0.63 in./0.63 in., 0.63 in./0.63 in. : 15.9 mm/15.9 mm, 15.9 mm/15.9 mm,

Dimensions (without stand) (WxHxD) 86.4 x 49.2 x 3.3 in. / 2194.7 x 1250.2 x 84.3 mm,

Shipping (WxHxD) 92.5 x 55.1 x 12.2 in. / 2350.0 x 1400.0 x 310.0mm

Net Weight (without stand) 149.9 lbs. / 68 kg.

Shipping Weight 218.3 lbs. / 99.0kg,

VESA Hole Configuration 400 x 400mm (M6 x 4-hole),

Environmental Conditions:

Operating Humidity 20% to 80%,

Operating Altitude 9843 ft. / 3000m,

Storage Temperature -4-140°F / -20-60°C,

Storage Humidity 10-80%,

Storage Altitude 40,000 ft. / 12,192m,

Environmental Compliance:

ENERGYSTAR Energy Star 8.0,

Features:

Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation

4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!

Integrated USB-C input with DP-Alt Mode, 65W Power Delivery and Hub functionality allow for more streamlined operations when using as a presentation type of device,

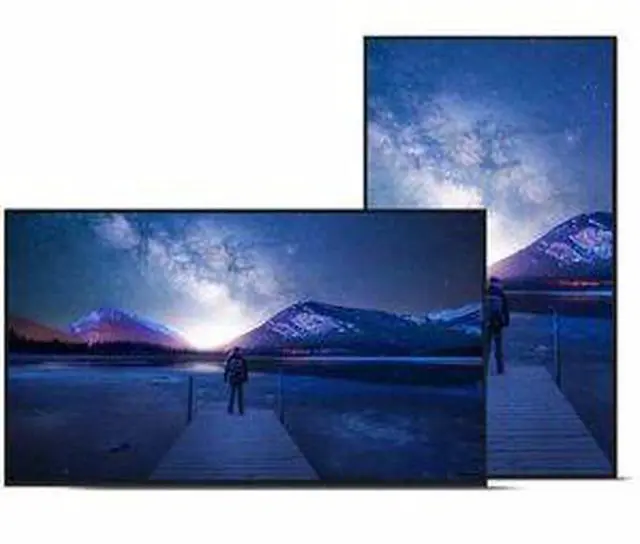

Landscape and Portrait orientation allows for flexibility of installation dependent on your needs,

Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C,

LAN Daisy Chain passes RS-232C, TCP-IP and IR signal to easily control groups of displays without having to run extra cable

550 cd/m2 brightness with high haze panel will capture the attention of audience in almost any situation,

Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections passing any digital input into the display

Failover Capabilities with full Input Change functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails,

Energy Star 8.0 Certified Product,

Full 3 year commercial warranty to allow for peace of mind and protection of your investment,

Create pixel perfect imagery with the high-end panel quality of the new fully commercial Sharp PN-M Series large format displays. By implementing premium features and focusing on creating impressionable digital signage experiences, the PN-M series gives customers an elite display option with its one-of-a-kind and proprietary SpectraView Engine capabilities, these displays offer out-of-the-box factory panel calibration, allowing for consistent visuals out of the box. On top of that, these products allow customers the modularity capabilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity interface allows customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The Sharp PN-M series boasts 550 cd/m2 brightness which is ideal for a majority of high end digital signage applications in restaurants, command and control, retail, healthcare and corporate environments when high-end and feature rich displays are necessary to convey important messaging.
