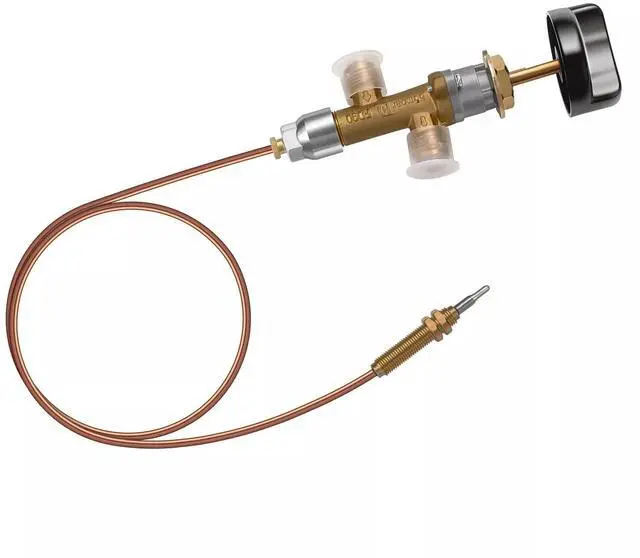

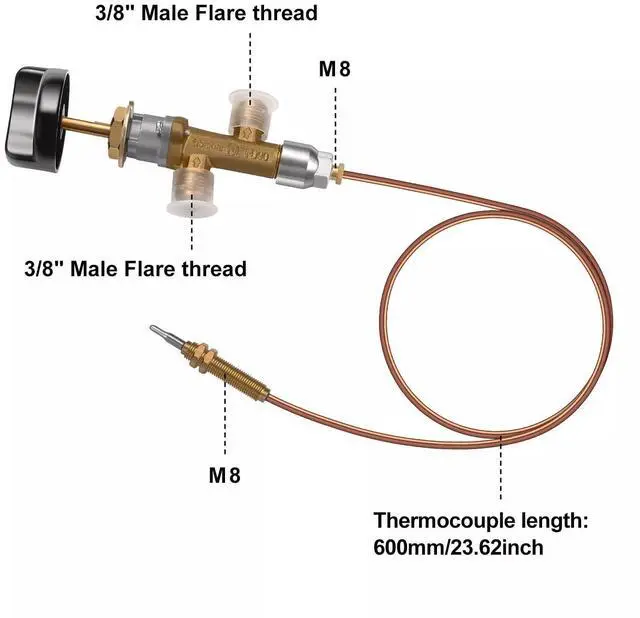

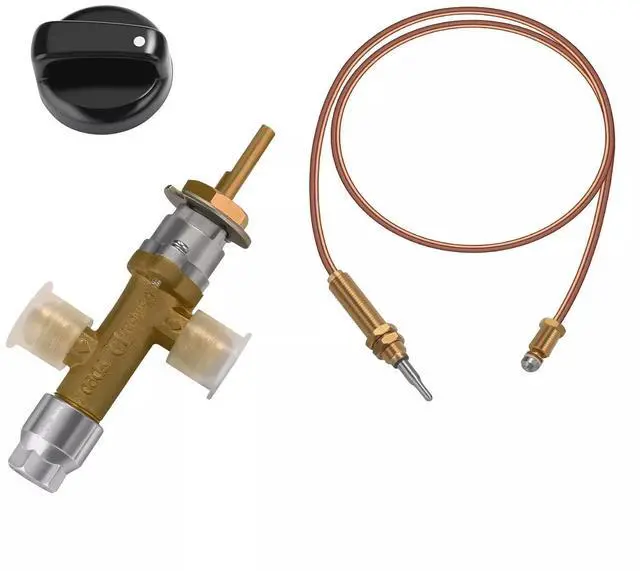

Low Pressure Propane Gas Flame Failure Safety Control Valve Kit Fits for Fireplace, Fire Pit, Gas Grill, Heater (3/8Inch Male Flare Swivel)

Features and further details

Operation Instructions

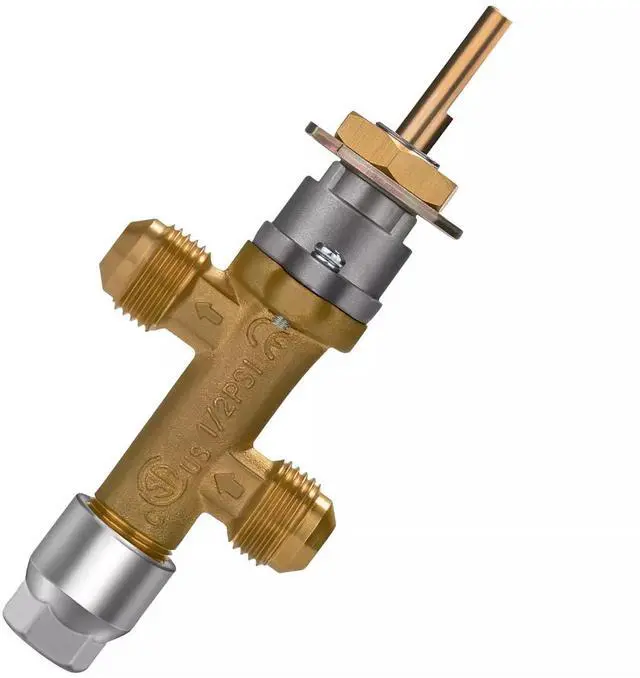

1). Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.

2). Connect your inlet and outlet hose on inlet and outlet side. (faston it tightly enough in case of gas leakage)

3). Faston the thermocouple nut M*8 on the valve end tightly

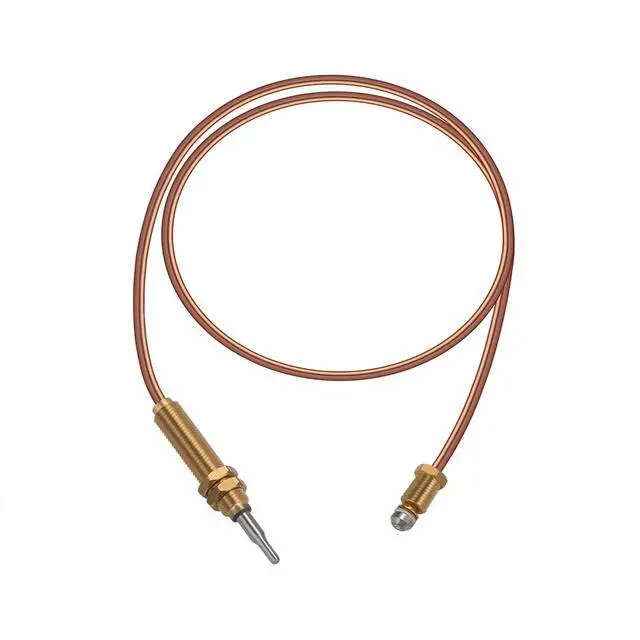

4). Connect thermocouple and end thread well

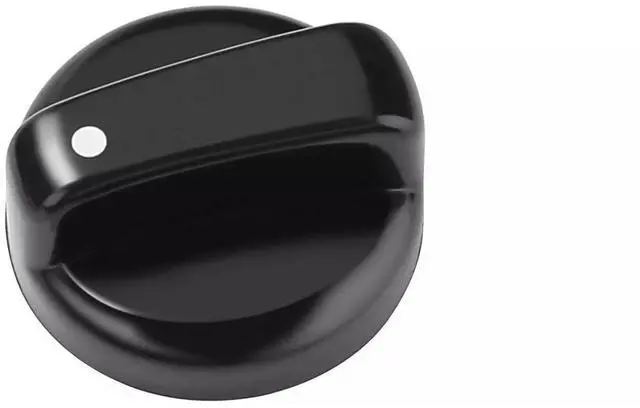

5). Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.

6). Release your hand and it work properly If when you release hand, gas valve shut off again, Please check

a. If your thermocouple is always be heated on flame

b. If the thermocouple end is well connect with valve

c. If the inlet and outlet side well connect with hose you have

Possible problems occurs during your use:

Reason:

a. The thermocouple head is not heated in right place, please adjust thermocouple tip position.

b. The connection between thermocouple end and valve is not connected tight enough or too tight, please adjust the screw again.

c. Need to push valve first then turn the spindle and hold for few seconds, it cannot stick immediately may need 5-15 Seconds.
