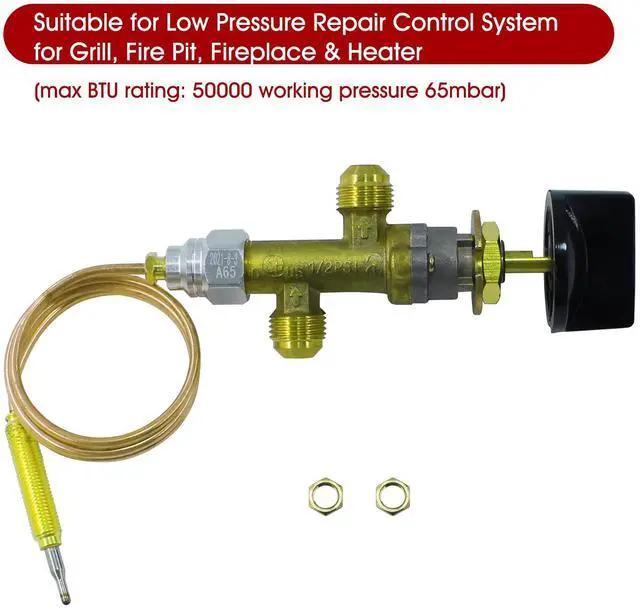

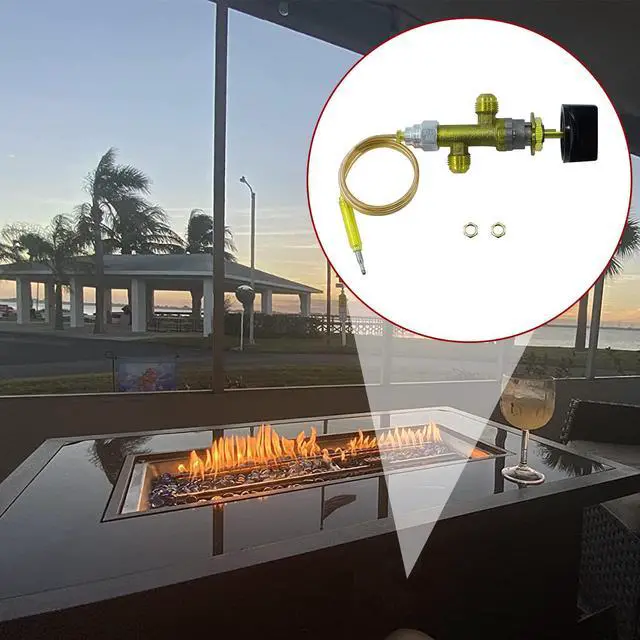

The gas fire pit valve control assembly kit is suitable for most low pressure system without pilot burner for outdoor fire pit or fireplaces.
Max Rating BTU is 50000.
The valve is a flame failure valve and have to work with thermocouple together.
Operation Instructions
1). Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.
2). Connect your inlet and outlet hose on inlet and outlet side. (faston it tightly enough in case of gas leakage)
3). Faston the thermocouple nut M*8 on the valve end tightly
4). Connect thermocouple and end thread well
5). Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.
6). Release your hand and it work properly If when you release hand, gas valve shut off again, Please check
a. If your thermocouple is always be heated on flame b. If the thermocouple end is well connect with valve c. If the inlet and outlet side well connect with hose you have

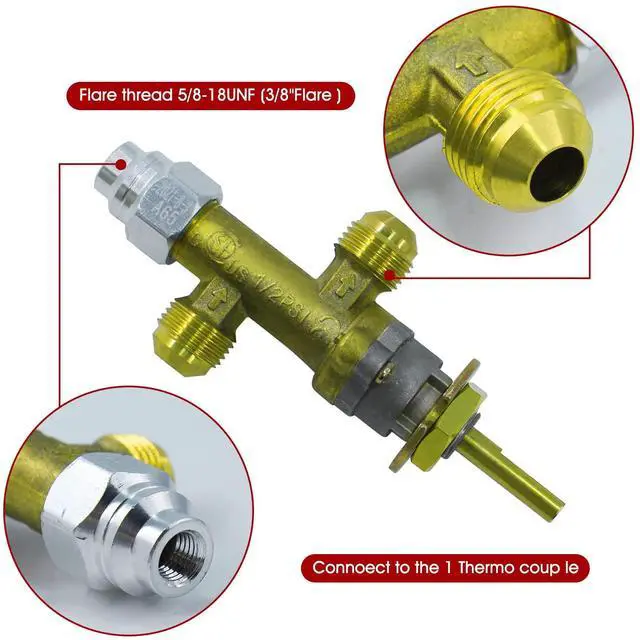

Gas Valve with Inlet & Outlet 3/8" Male Flare Thread

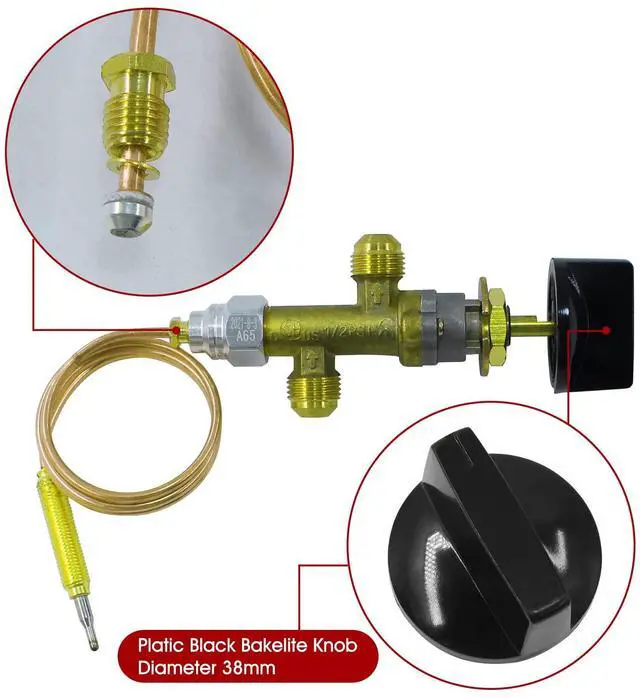

Bakelite Knob High Temperature Resistance 120°C

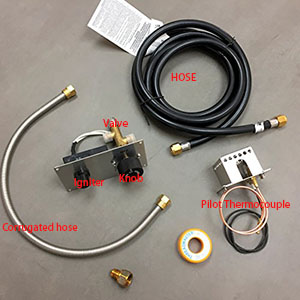

Common Parts for a Fire Pit
Gas Valve Control Assembly

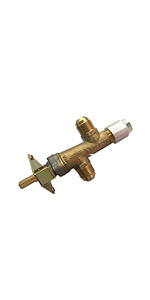

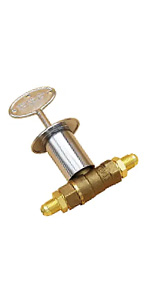

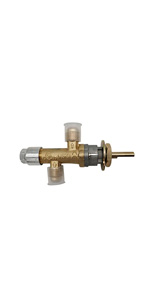

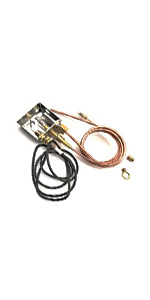

 24" Thermocoupler |  3/8" Male Flare Valve |  Key Control Valve |  Gas Valve with Fixing Bracket |  Pilot Burner Assembly Kit | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — no data | — | — |
| fire pit parts | Thermocouple | low pressure safety valve | key valve 1/2" | safety flame failure valve with bracket | Pilot burner assembly |
The gas fire pit valve control assembly kit is suitable for most low pressure system without pilot burner for outdoor fire pit or fireplaces.
Max Rating BTU is 50000.
The valve is a flame failure valve and have to work with thermocouple together.
Operation Instructions
1). Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.
2). Connect your inlet and outlet hose on inlet and outlet side. (faston it tightly enough in case of gas leakage)
3). Faston the thermocouple nut M*8 on the valve end tightly
4). Connect thermocouple and end thread well
5). Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.
6). Release your hand and it work properly If when you release hand, gas valve shut off again, Please check
a. If your thermocouple is always be heated on flame b. If the thermocouple end is well connect with valve c. If the inlet and outlet side well connect with hose you have
Low Pressure Max 65mbar (1/2PSI) safety valve

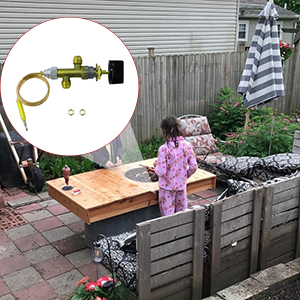

Suitable for gas fire pit, fireplace, or other gas heaters if thread can be connected. The Kits includes;

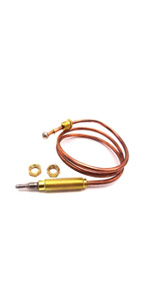

1 x 24" Thermocoupler
1x Bakelite Knob 6mm insert
1x Gas Valve 3/8" male flare

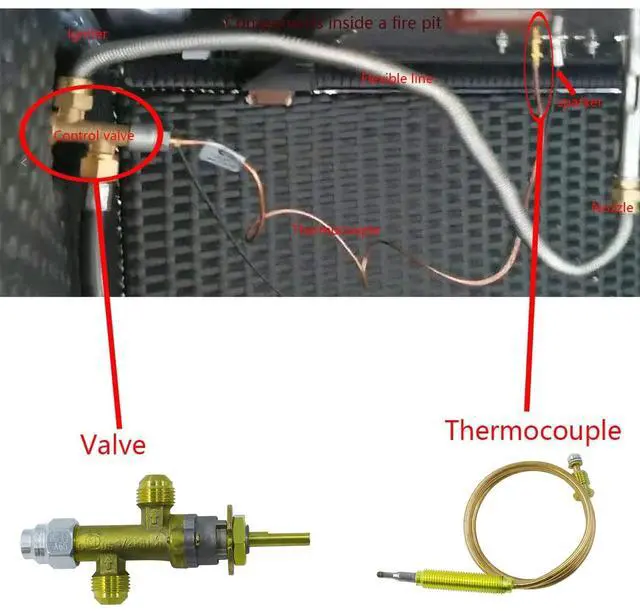

Common parts for a propane fire pit.
Valve after turn can not stick during using reason:
a. The thermocouple head is not heated in right place, please adjust thermocouple tip position. b. The connection between thermocouple end and valve is not connected tight enough or too tight, please adjust the screw again c. Need to push valve first then turn the spindle and hold for few seconds, it cannot stick immediately may need 10-30Seconds

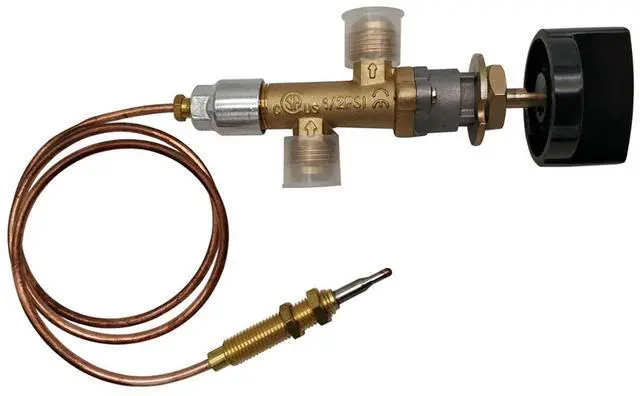

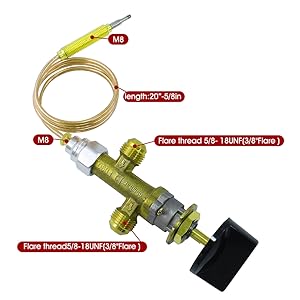

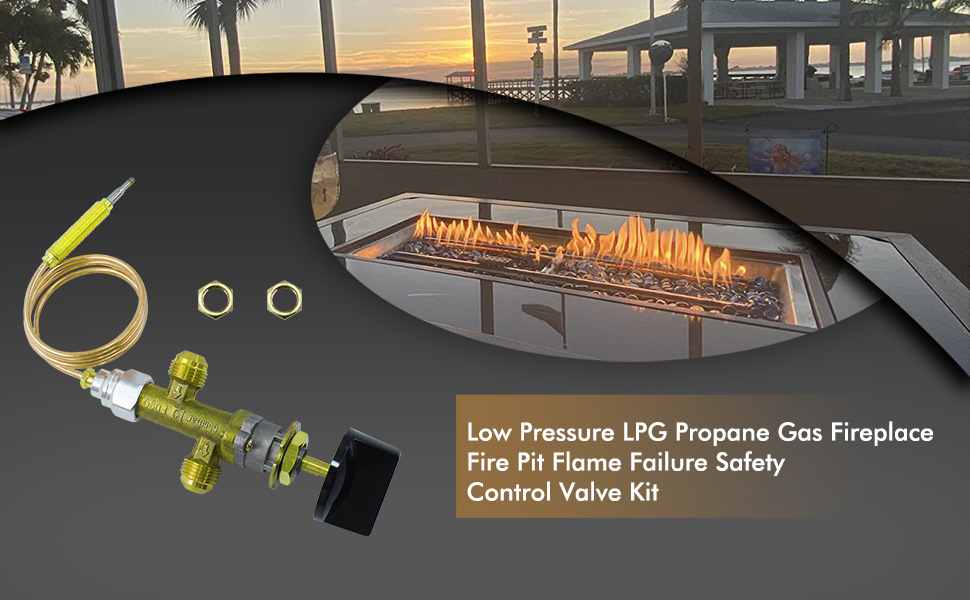

Low Pressure Fire Pit Control Valve Assembly Kit
* The valve is a flame failure valve max 50000 BTU
* The Thermocouple Length 24" inch Long

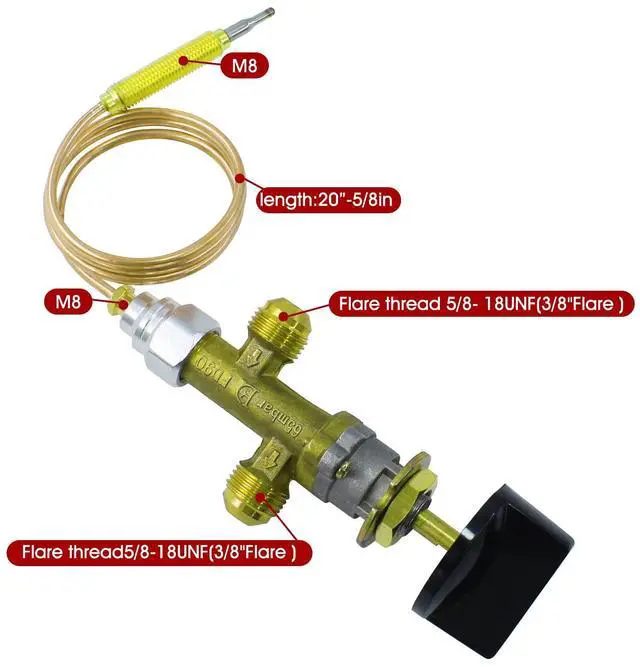

* The Valve Thread 3/8" Male Flare on both sides
* The Knob can be replaced if you do not like it ( with 0.236inch/6mm stem)
