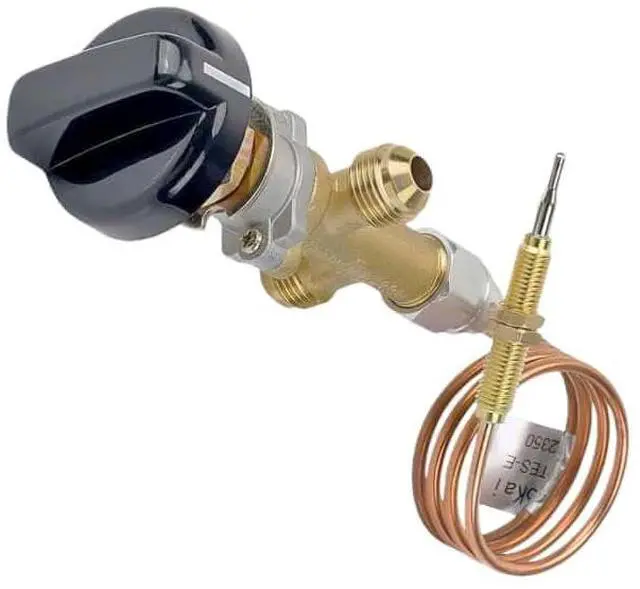

The gas fire pit valve control assembly kit is suitable for most low pressure system without pilot burner for outdoor fire pit or fireplaces.
(Max BTU Rating: 50000 working pressure 65mbar)
The valve is a flame failure valve and have to work with thermocouple together.
1. Thermocouple plays the role of a sensor, it senses the flame, will transmit a signal to the solenoid valve in the control valve, the solenoid valve receives the signal before opening the gas, in order to successfully ignite and keep the flame does not go out.
2. The thermocouple and ignition needle in the installation of the distance should be closer, so the thermocouple can sense the flame and the solenoid valve receive the induction, pass gas and ignite.
So in the installation, the control valve and thermocouple should be well connected, so the control valve will receive the signal transmitted by the thermocouple, it will pass gas and ignite.
Suitable for Low Pressure Repair Control System for Gas Fire Pit, Fireplace & Heater if thread can be connected, such as Weber summit grill, Veranda Harmony Classic fire pit, Canyon Ridge Gas Fire Table, Canyon Ridge fire pit, BOND FIRE PITS, Hampton Bay Patio Heater, etc.
Operation Instructions:
Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.
Connect your inlet and outlet hose on inlet and outlet side. (fix it tightly enough in case of gas leakage).

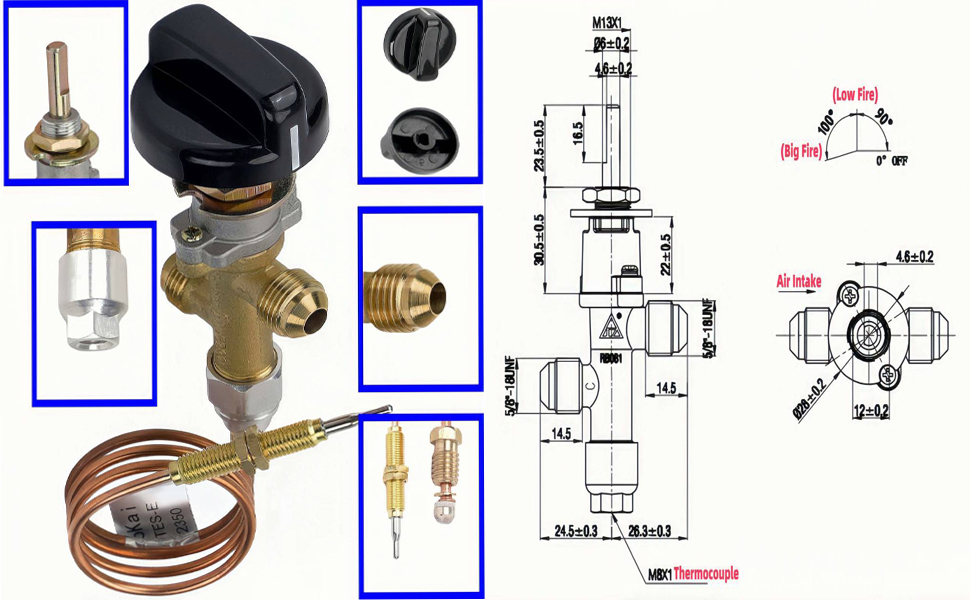

Fix the thermocouple nut M8 on the valve end tightly (Check if your valve end thread if 8mm before you buy).
Connect thermocouple and end thread well.
Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.
Release your hand and it work properly If when you release hand, gas valve shut off again, please check
If your thermocouple is always be heated on flame.
If the thermocouple end is well connected with valve.
