Product Description

Fitment:

Adopts rust-proof and corrosion-resistant materials,to protect the auger from being damaged when encounters branches, thick ice, rocks etc. Suitable for use in any harsh environment.

Easy to install, just push right into the shear pin and then use the cotter pins to lock them in place

Work with Sears Craftsman Troy Bilt MTD snow blower,snow throwers and Lawn Tractors.Fits most 2-stage snow blower Models and some 3-stage snowblower.

Had been tested and confirmed to work with Craftsman 22" 24" 26" 3 stage snowblower, Troy-Bilt 2410, 22" 24" 26" snowblower, Cub Cadet 524, 26" 28" 2 stage 3 stage 3x snowblower

These shear pin kits fit 300/500/600 Series two-stage snow thrower models, 2005 and after. They are designed for use with Troy-Bilt, MTD, Yard-Man, Yard Machines, Huskee and Bolens units.

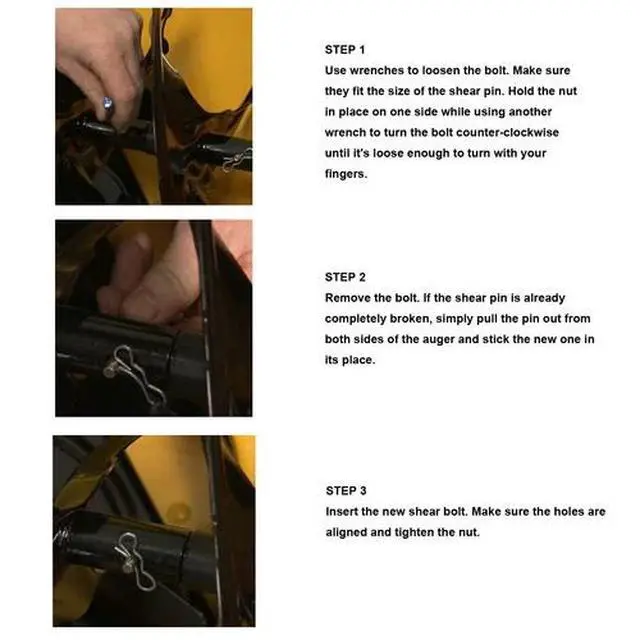

Replacing a shear pin is very easy and only takes seconds to do.

Replace part:

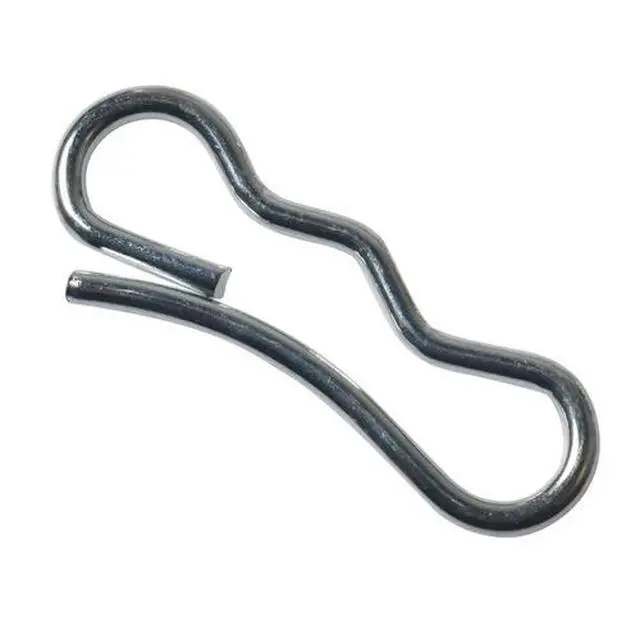

shear pin #738-04124A, 738-04124; bow tie cotter pin #714-04040, YS-714-04040.

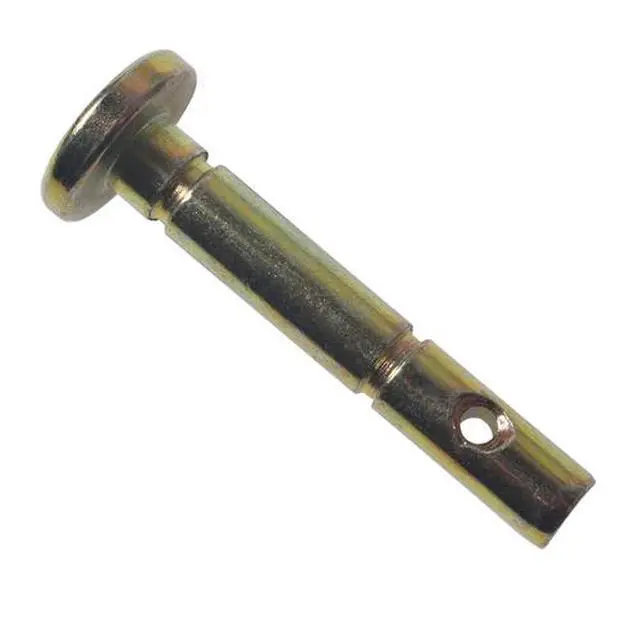

Shear Pin Size: 1/4" x 1-1/2"

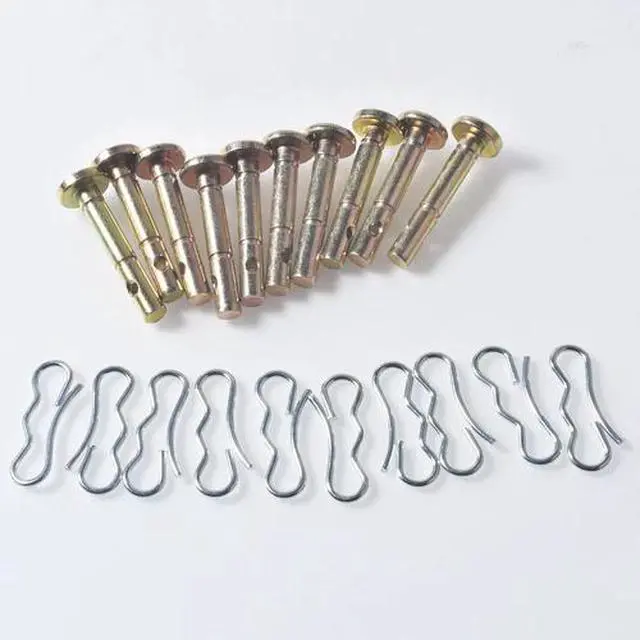

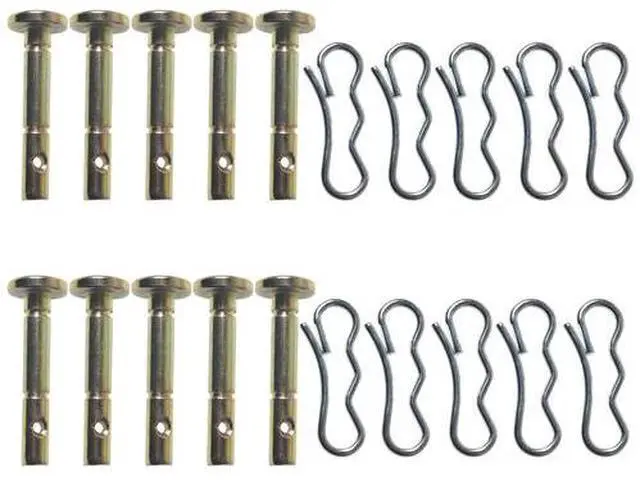

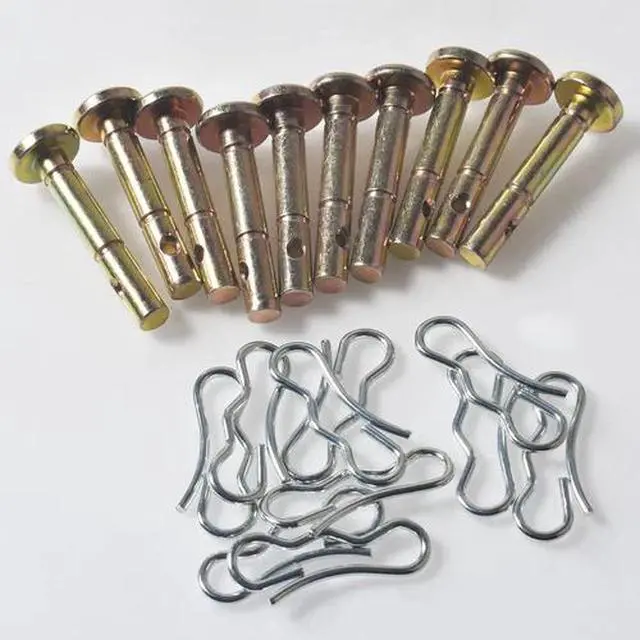

Package include:

10 x shear pins + 10 x cotter pins

What is a Shear Pin?

Typically, two shear pins (shear bolts) connect the auger to the auger shaft. They feature specially designed grooves, allowing them to snap if there’s too much torque. This prevents damage to the gear case and auger shaft.

If two-stage snow blowers weren’t built with shear pins, a snow-covered newspaper or a curb could cause hundreds of dollars in damage instead of a few bucks.
