Milling Working Table - 7.3 X 4 Inch Worktable - Compound Slide Table Milling Working Cross Table Machine for All Drill Stands Bench Drilling Milling Machine (7.3" X 4")

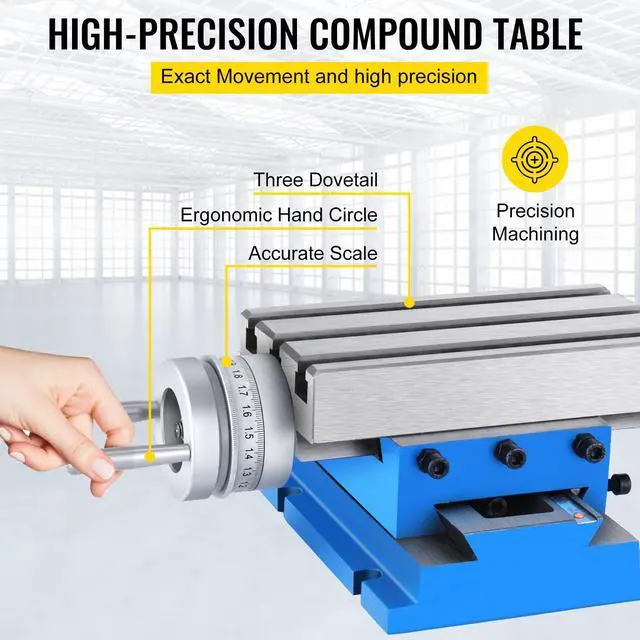

Ergonomics and Accuracy: Solid cranks adopting ergonomic design were easy to handle, which could save you great effort when in work; cranks were designed to vary in length to meet individual demands. Furthermore, they bear a precise scale that helps you in micro adjustment with the precision of about 0.01 mm and make processing parts more accurate.

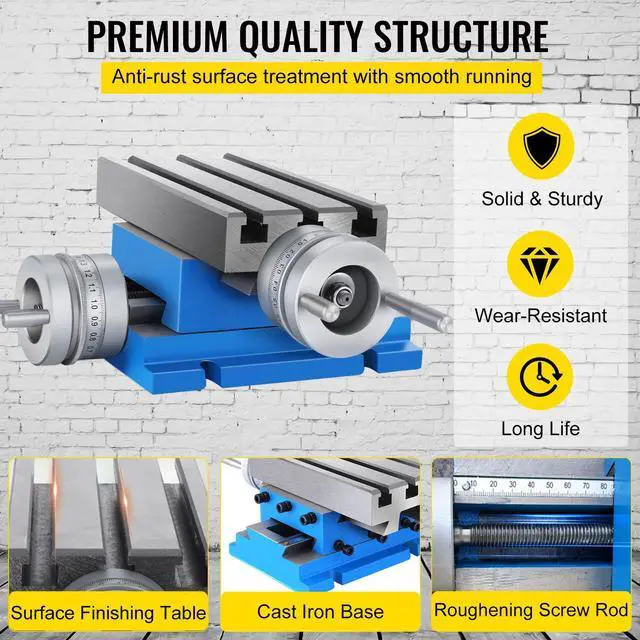

Reinforcement & Reliability: Solidified and widened tabletop(100 mm) together ensure a long service life and steady processing, providing a high-level security for you. Convenient and effort-saving, such a table-board could satisfy various processing needs. On the other hand, this milling working table has three T-shaped grooves that are straight and noticeable. Those grooves give tight and reliable clamping; no need to worry about loosening.

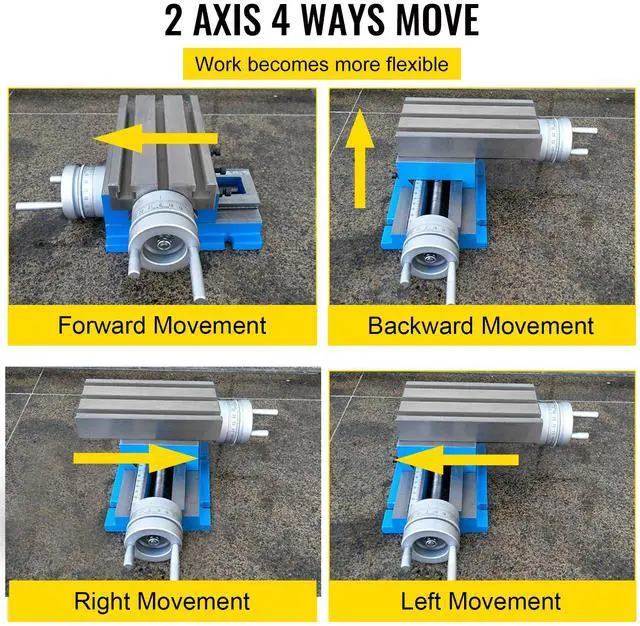

Easy to Adjust: The movable table could be slid forward and backwards, leftwards and rightwards according to your needs. The movement could be finished by merely twisting screws

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specifications

Working Table: 4× 7.3 in / 185 x 100 mm
Travel Length: 3 in / 80 mm
Vertical Travel: 3 in / 75 mm
T-Shaped Groove Length: 2/5 in / 10 mm
Groove Interval Width: 1.3 in / 33 mm
The Spindle Spacing Length: 0.08 in / 2 mm
Dial Spacing Length: 0.0004 in / 0.01 mm
Working Height: 4 in / 102 mm
Maximum Workpiece Weight: 66 lbs / 30 kg
Bottom size: 6.7 x 5 in / 170 x 130 mm
Net Weight: 22 lbs / 10.1 kg

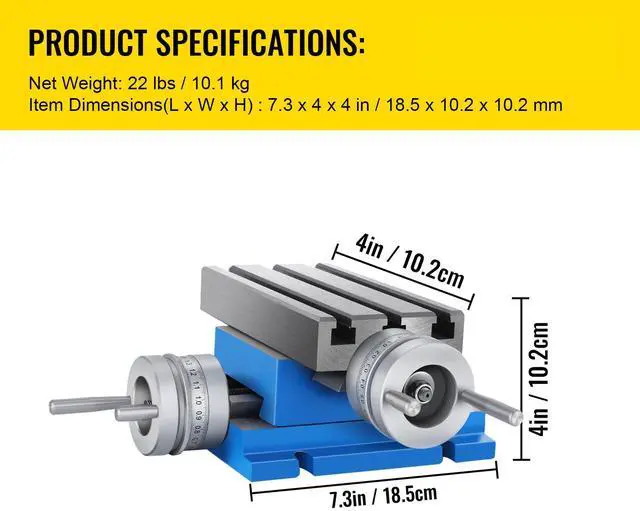

Item Dimensions (L x W x H): 7.3 x 4 x 4 in / 18.5 x 10 x 10.2 mm

Package Content
1 x MX-75 Multifunction Milling Support Table Worktable
