Linear Rail, Ballscrew x 3, RM1605-350mm 650mm 1050mm x 2 Linear Rail Support, 12 CNC Kit Linear Shaft Optical Axis
- Complete Linear Rail Kits: This set includes supported linear rails SBR20-300/600/1000 mm rails, two for each type, 3pcs of ball screws RM1605-350/650/1050 mm-C7, 3 sets of BK/BF12, and 3pcs of couplings 6.35 mm*10 mm.

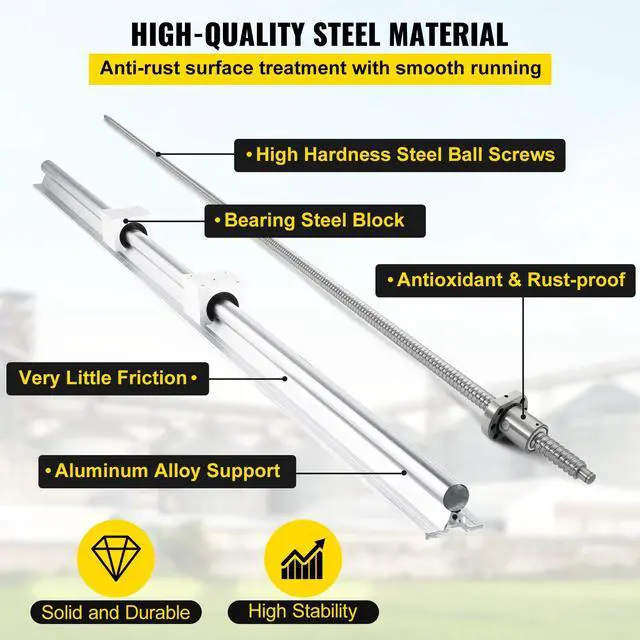

- High-Quality Steel Material: Linear guides are made of quality material. The ball screw with high efficiency and low heat generation can ensure accurate micro feed and get a higher rigidity.

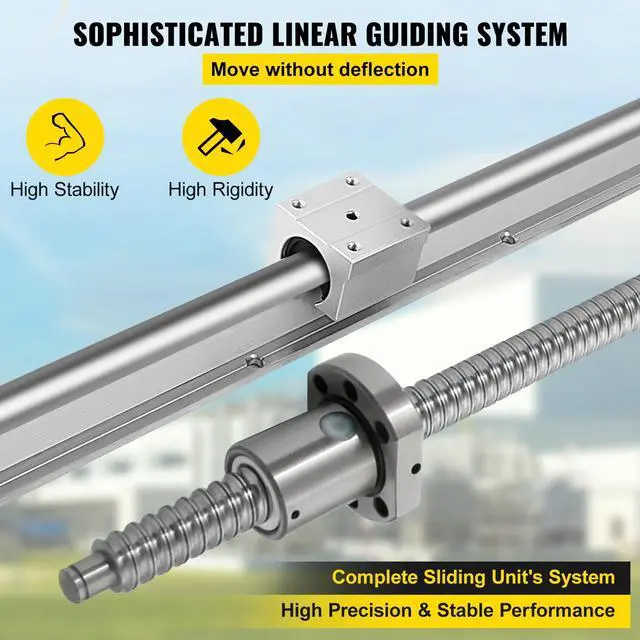

- Premier Linear Guiding System: Complete sliding unit's system with high accuracy and can be moved without deflection. There is a lot of ball rolling motion between the screw shaft and nut. Therefore, it is possible to obtain a high efficiency of movement.

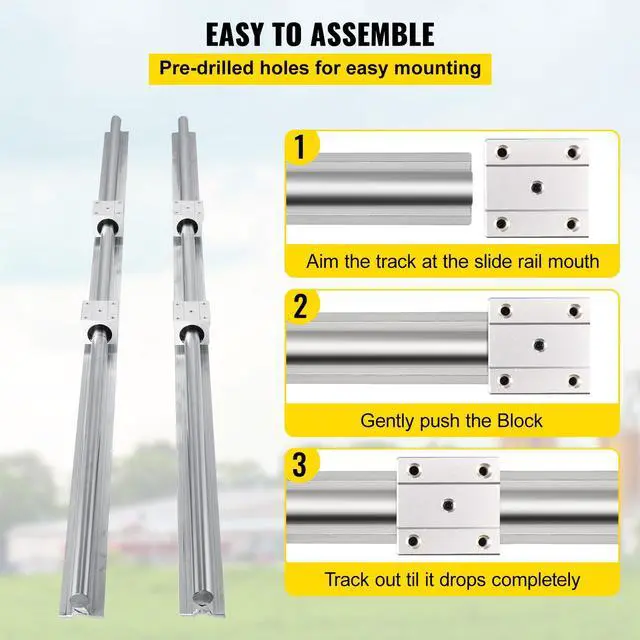

- Easy to Install: Quality support rail with pre-drilled holes for ease of mounting. The ball screw movement achieves high-speed feed. Convenient to install it, less effort to maintain
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

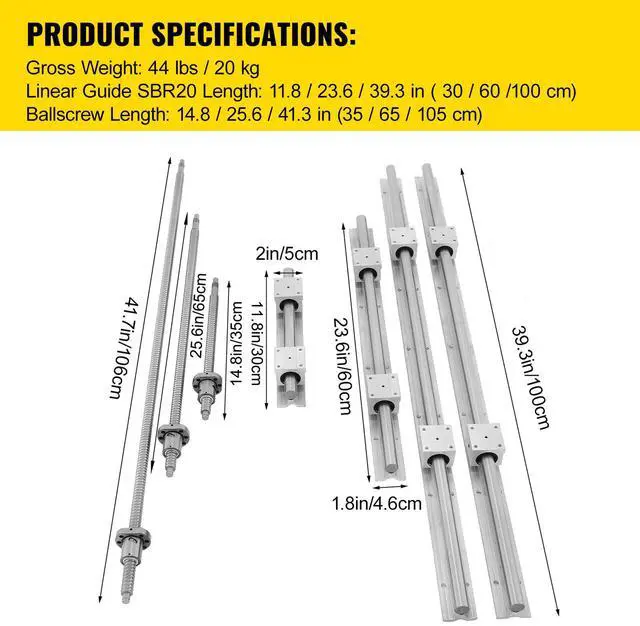

Specifications
Linear Guide SBR20 Length: 11.8 / 23.6 / 39.4 in (300/600/1000 mm)
Ballscrew Length: 14.8 / 25.6 / 41.3 in (350/650/1050 mm)
Class: C7
Screw Diameter: 0.63 in / 16 mm
Screw Pitch (Lead): 0.197 in / 5 mm
Screw Length: 7.87 in / 200 mm
Feature: Anti-friction
Packing Size: 44 x 8 x 4 in / 110 x 20 x 10 cm
G. W.: 44 lbs / 20 kg

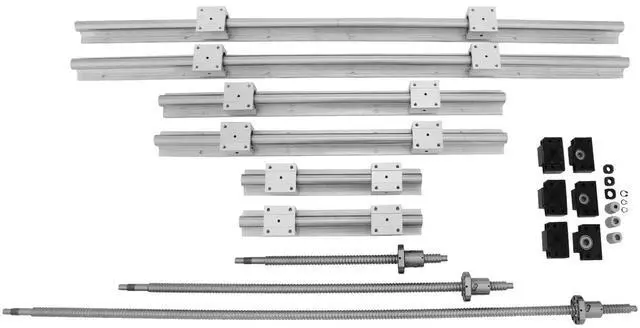

Package Content
2 x SBR20-300mm Linear Rail Guide
2 x SBR20-600mm Linear Rail Guide
2 x SBR20-1000mm Linear Rail Guide
1 x Ballscrew SFU / RM 1605-350mm- C7 with End Machined
1 x Ballscrew SFU / RM 1605-650mm - C7 with End Machined
1 x Ballscrew SFU / RM 1605-1050mm- C7 with End Machined
12 x SBR20UU Linear Blocks
3 x BK/BF 12 Support for Ballscrew
3 x 6.35 x10mm-25x30mm Flexible Couplings
