Linear Guide Rail, Belt Drive, CNC Linear Motion Stage Actuator, with Nema34 Stepper Motor, 600 mm Stroke Work Size, High Speed Motorized, for Engraving Machine, CNC Milling Machine, 3D Printer

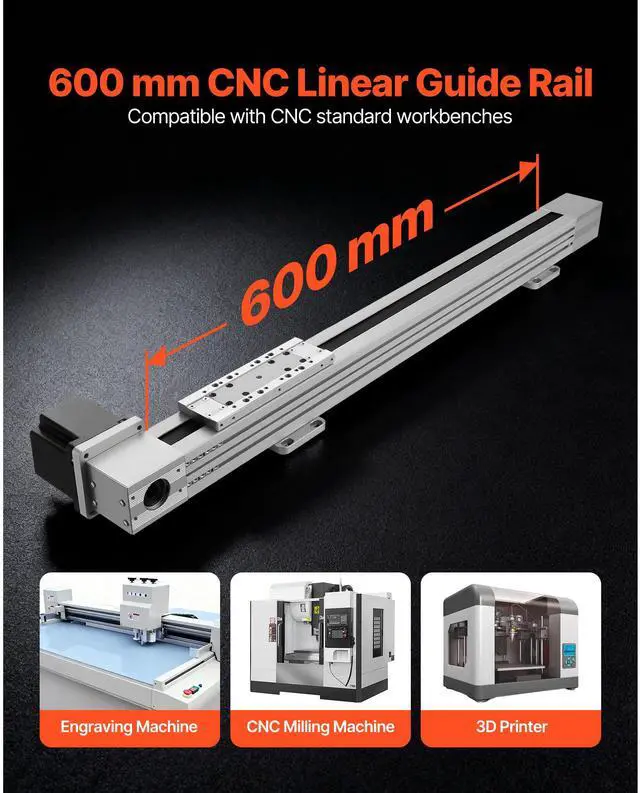

- CNC Linear Rail Kit: This set includes one linear motion guide rail with a 600 mm effective stroke, compatible with engraving machines, CNC milling machines, and 3D printers

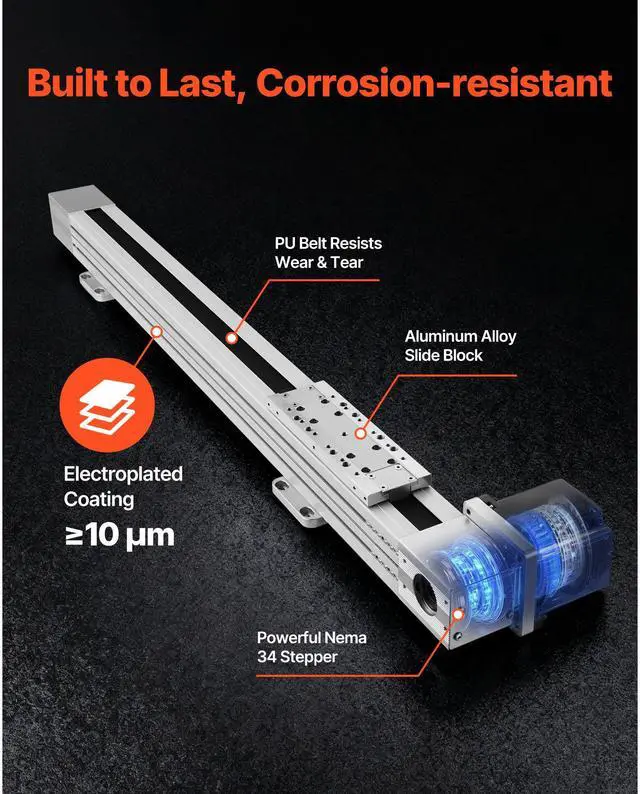

- Rust & Corrosion Protection: Made with a PU belt, aluminum alloy slide block, and a NEMA 34 stepper motor. Features a 10 m electroplated coating to resist corrosion and rust even in humid environments like basements

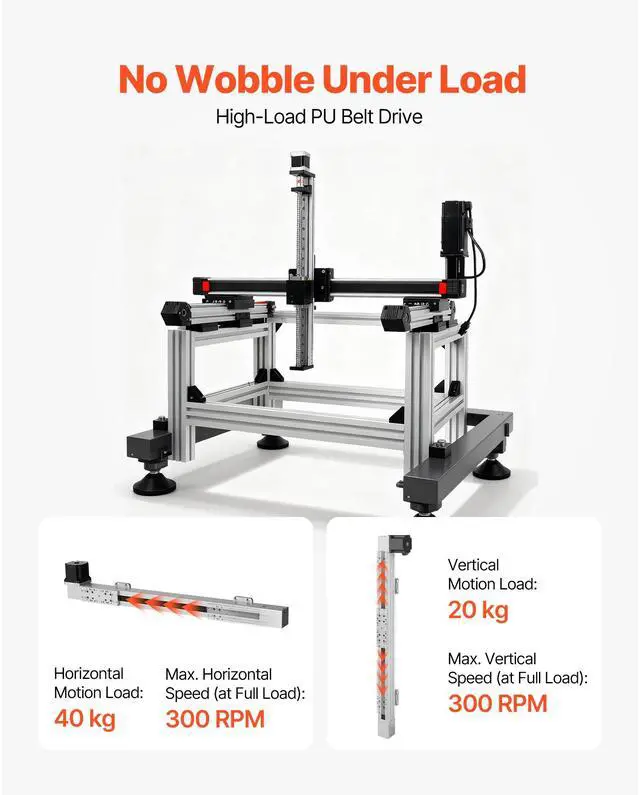

- Reliable Load Capacity: This linear guide rail supports both horizontal and vertical movement with stability. Handles up to 40 kg horizontally and 20 kg vertically
- High Precision, No Deviation: Provides ±0.05 mm repeatability, our linear motion guide rail features precisely machined mounting holes and spacing. It ensures accurate long-stroke motion and easy installation
- Installation Made Easy: No extra installation tools are required. Designed with simplicity in mind, this linear motion guide rail kit installs quickly. It is suitable for DIY assembly or rail replacements
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications

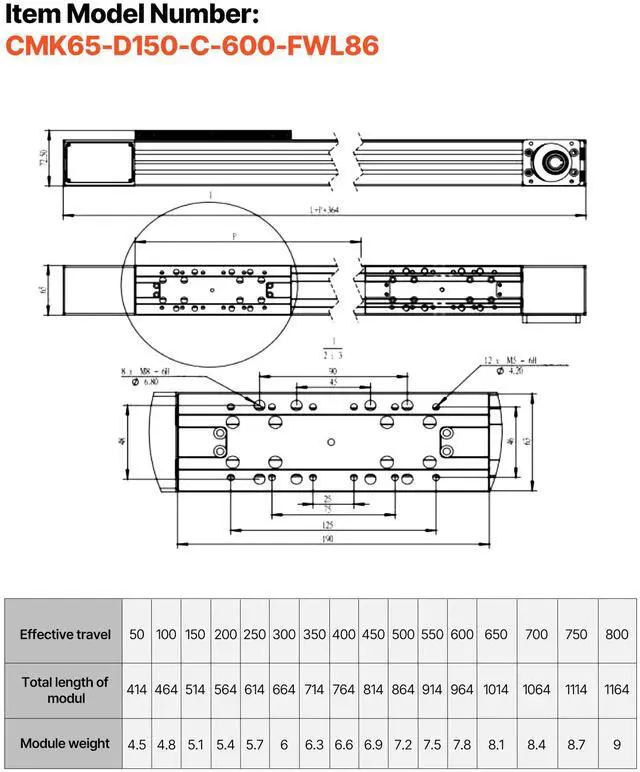

Item Model Number: CMK65-D150-C-600-FWL86
Material: Chrome-Plated Steel & Aluminum
Motor Rated Voltage: DC 2475V
Quantity: 1 pc
Package Content
1 x Linear Guide Rail Kit
