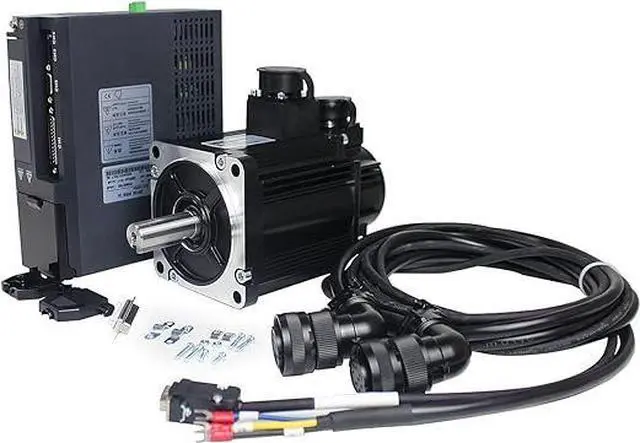

1.8KW AC Servo Motor Driver Kit 3000rpm/4000rpm 220V 5.7Nm/16Nm 1800W CNC Servo Driver Controller System with 17-bit Encoder for CNC Automatic Device/Cutting Engraving Milling Lathe Machine

1.8KW AC Servo Motor Driver Kit 3000rpm/4000rpm 220V 5.7Nm/16Nm 1800W CNC Servo Driver Controller System with 17-bit Encoder for CNC Automatic Device/Cutting Engraving Milling Lathe Machine

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

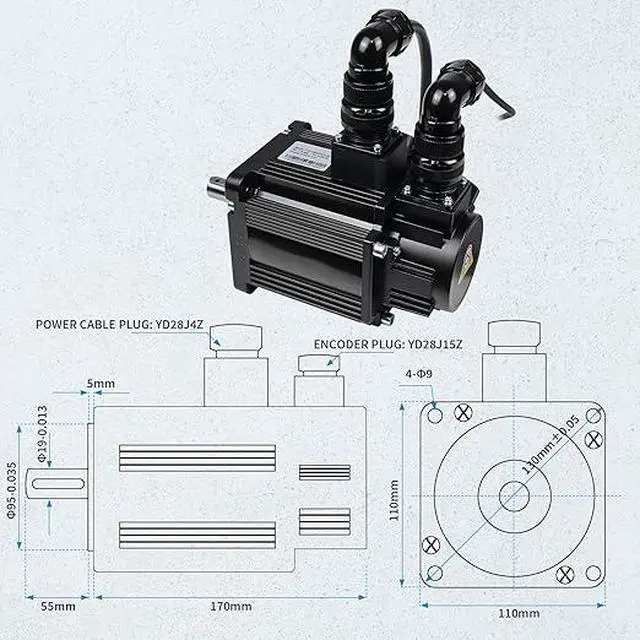

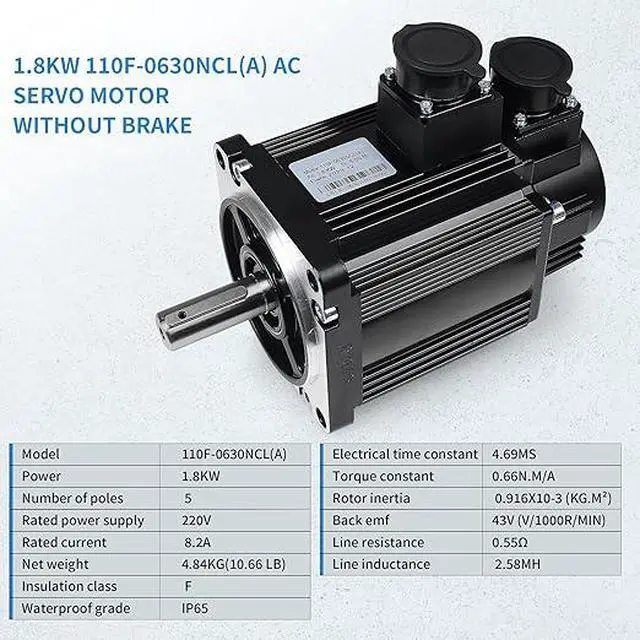

Motor Parameters:Model 110F-0630NCL(A) ;Power:1.8KW;Poles:5 pairs;Voltage:220V;Rated speed:3000r/min;Peak:4000r/min;Rated torque:5.73Nm; Instantaneous max torque 16.2Nm; Rated current:8.2A; Insulation class:F;Waterproof: IP65;Shaft:19mm;Net weight:10.66lb

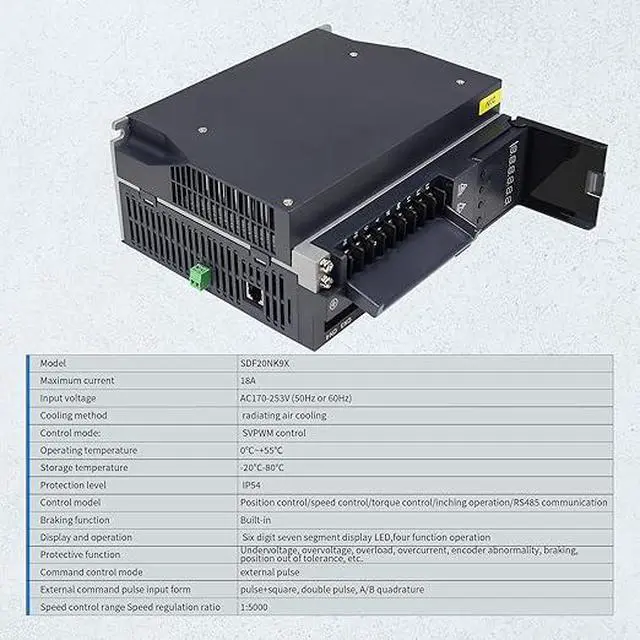

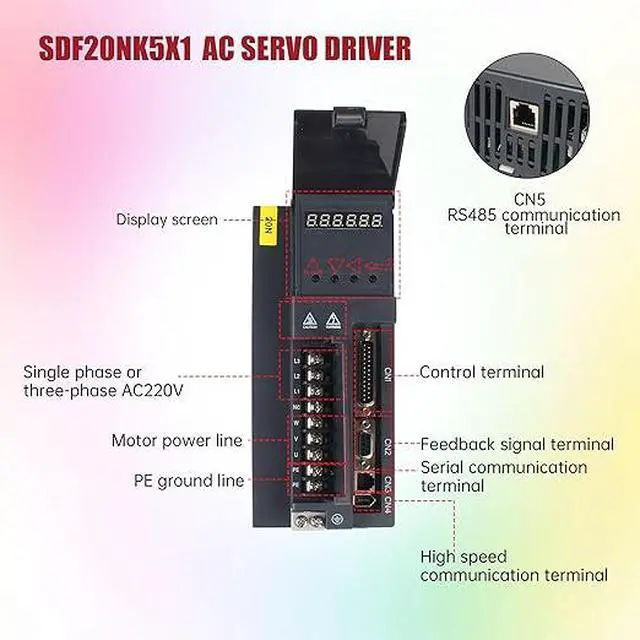

Driver parameters: Model is SDF20NK5X; Max current: 18A;Voltage: AC170-253V 1 or 3 phase input; Cooling method: Heat dissipation air cooling; Control mode: SVPWM; Operating temperature: 32 - 131; Storage temperature: -68 - 176; Protection level: IP54
17bit Encoder&Accurate control: Matching with 17 bit single coil absolute magnetic encoder,5 pairs of poles,to ensure the positioning accuracy of one millionth; With Strong applicability,all input/output ports can be freely defined and have strong applicability,a variety of intelligent monitoring functions and operation panels are convenient for customers to debug and diagnose
Multiple Functions: Under voltage,over voltage,over load,over current,encoder exception,position error etc.Position control, speed control, torque control Modbus communication can be converted to meet common applications,standard RS485 communication function, realize upload and download network control.The internal simple PLC function, in some simple control occasions, PLC can be completely omitted, and a lower cost solution can be realized
Application Areas: Widely used on Industrial manipulator,Semiconductor equipment,CNC Machine tool,Packaging machinery,Automatic assembly,Engraving Carving equipment,Measuring equipment,Medical equipment,Industrial robot and other automated equipment on the market
