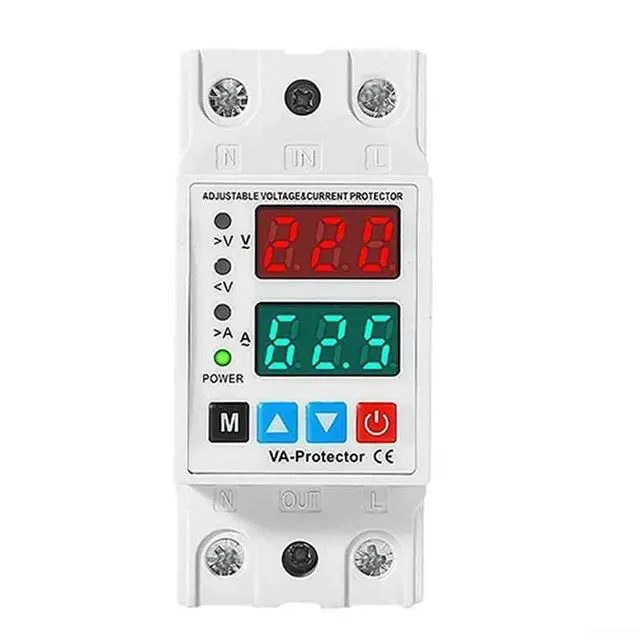

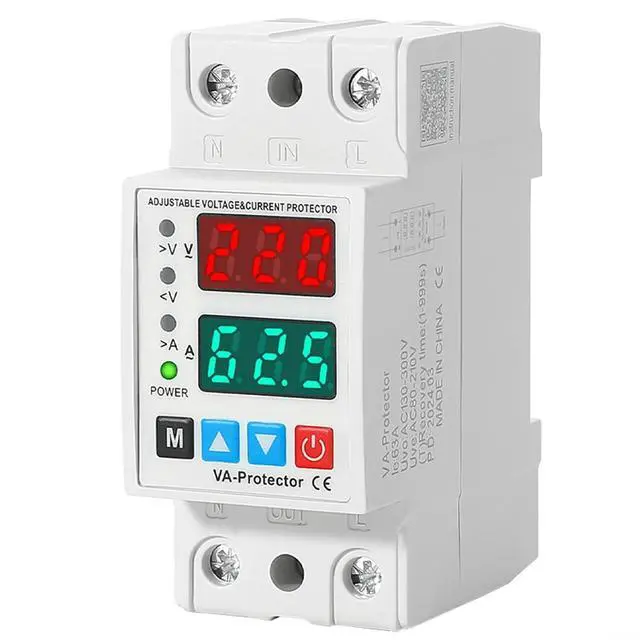

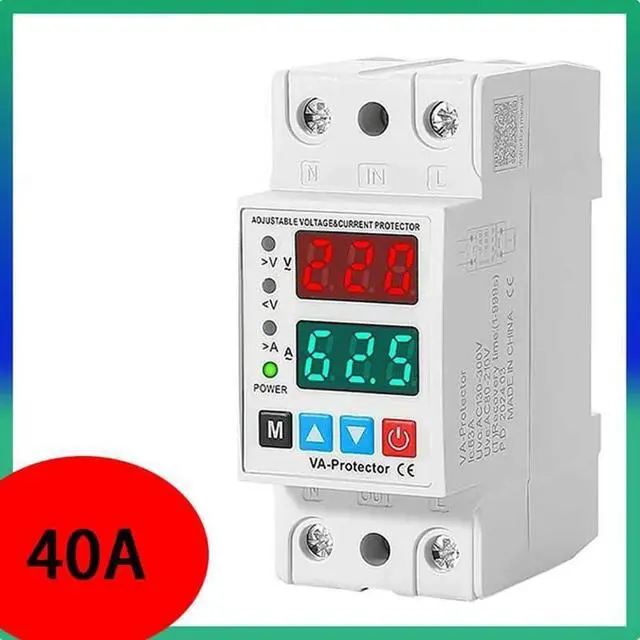

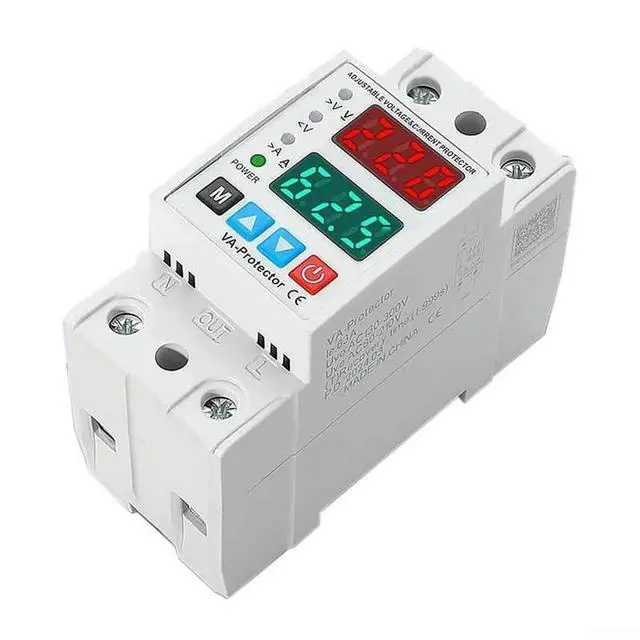

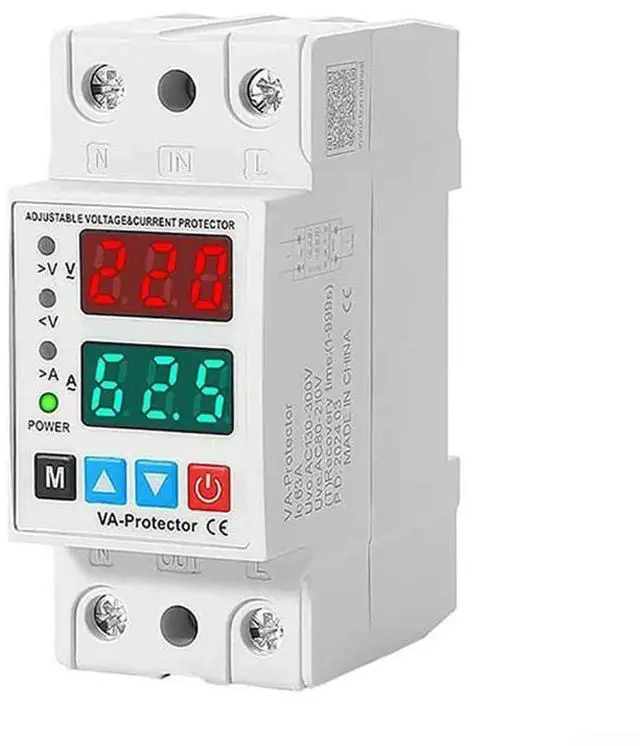

AC 220V Adjustable Over & Under Voltage Protector with Dual LCD Display, 40A/63A Current Protection, for AC 80-300V, Rail Mountable, for Industrial Electrical Panels(40A)
- Voltage Protector For Real-Time Safety: Continuously monitors AC 220V supply to forestall damage from overvoltage, undervoltage, or overcurrent by cutting off power instantly and auto-reclosing when conditions normalize, insuring safe and smooth operation.
- Adjustable V/A Protector Settings: Fine-tune overvoltage between 130V300V and undervoltage from 80V210V with precise current limits up to 63A via intelligent chip control
- LCD dual display shows clear real-time voltage and amp readings for confident adjustments.
- Robust Rail-Mount Design: Long lasting plastic housing withstands heat and cold for general electrical environments
- fits standard 35mm DIN rails, with manual/auto recovery and lockable parameters to forestall unauthorized changes and maintain consistent protection.
- Multi-Function Dual Display: Switch between voltage, current, frequency, and power data with high refresh rate >1000Hz
- red/green indicators and dimming mode deliver quick status checks while conserving energy within your electrical panel environment.
- Enhanced Electrical Protection Modes: Equipped with DC mode support, fast response to sudden power loss, and a bypass knife-switch function
- embedded RTOS software insures stable operation and simplifies servicing for sustained protection in demanding conditions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: Smart for protection & Auto Recovery Monitors voltage and current in real-time. Automatically cuts off power during over/under voltage or overcurrent, and restores supply when normal. Ensures safety and convenience for your family. Customizable Settings Adjustable voltage (130V300V overvoltage, 80V210V undervoltage) and current limits via an intelligent control chip. LCD screen displays real-time data with 0 power consumption. Robust & Reliable Heat/cold resistant for harsh environments. Fits standard 35mm rails in any electrical box. Manual/auto recovery options and lock settings to prevent tampering. Multi-Function Display Toggle between voltage, current, frequency, and power readings. Includes visual red/green indicators and energy-saving dimming mode. Enhanced Safety Modes Features DC mode, fast power-loss for protection, and a bypass (knife-switch) function. Built with embedded RTOS for stability and for easy maintenance.
Specification: Part
Name: Adjustable
V/A Protector Color: Gray
Material: Plastic
Working voltage: AC 230V
Rated current: 40A, 63A
Reset/extend time: 1-999S
Overvoltage adjustable range: AC130-300V
Undervoltage adjustable range: AC80-210V
Size: 85*50*37mm
Effective voltage range: AC 80-300V
Effective current range: AC 0.1 - 63.0A
Frequency range: 40-70Hz
Screen refresh rate: >1000Hz
Table update: 0.1 - 1.0S
Table algorithm: RMS/RMS Overvoltage and undervoltage return difference: 5V
Timer range: 1-999S
Action time: 0.1 - 10.0S
DC effective range: DC 80-300V
Package Contents: 1*Adjustable V/A Protector
Specification: Part
Name: Adjustable
V/A Protector Color: Gray
Material: Plastic
Working voltage: AC 230V
Rated current: 40A, 63A
Reset/extend time: 1-999S
Overvoltage adjustable range: AC130-300V
Undervoltage adjustable range: AC80-210V
Size: 85*50*37mm
Effective voltage range: AC 80-300V
Effective current range: AC 0.1 - 63.0A
Frequency range: 40-70Hz
Screen refresh rate: >1000Hz
Table update: 0.1 - 1.0S
Table algorithm: RMS/RMS Overvoltage and undervoltage return difference: 5V
Timer range: 1-999S
Action time: 0.1 - 10.0S
DC effective range: DC 80-300V
Package Contents: 1*Adjustable V/A Protector
