ToughArmor MB491SKL-1B Ruggedized 1 Bay 2.5" SAS/SATA HDD/SSD Mobile Rack Enclosure with Water-Resistant Front Cover and Dual-Lock for 3.5" Bay

Enhance your system with the ToughArmor MB491SKL-1B, designed for seamless integration into any standard 3.5 drive bay, accommodating a robust 2.5 -inch SAS/SATA HDD/SSD. Tailored for the most demanding settings, this enclosure boasts a MIL-STD-810G certified build for the body and tray, along with an IPX5-rated water-resistant cover, ideal for use in military, vehicular, and maritime applications, as well as autonomous and aviation technologies. Dual locksa key lock plus a thumb screwensure double the security, guarding against both shocks and unauthorized access. With a removable caddy facilitating hot-swap capability, drive maintenance is effortless and uninterrupted, ensuring your mission-critical operations run without a hitch.

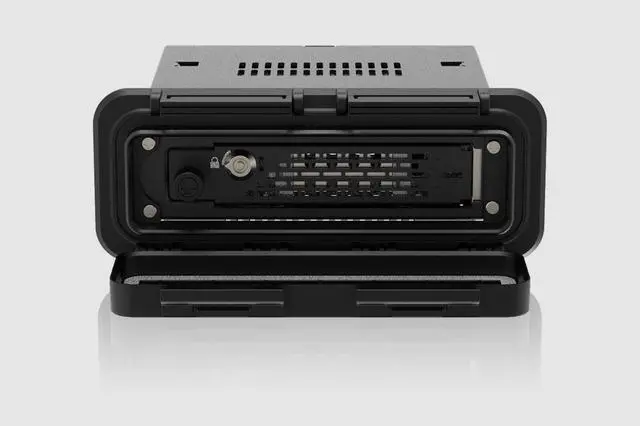

Designed for harsh, moisture-prone environments, the IPX5-rated front cover protects against water jets from any direction, ensuring your data remains safe even when exposed to water. This feature is ideal for applications like field deployments in wet conditions or industrial settings where liquid exposure is a common hazard.

The ToughArmor MB491SKL-1B incorporates a dual locking mechanism - a barrel lock and a thumb screw lock - to secure the drive in place. This system prevents accidental drive ejection due to vibrations or bumps, offering an extra layer of security in mobile or turbulent settings.

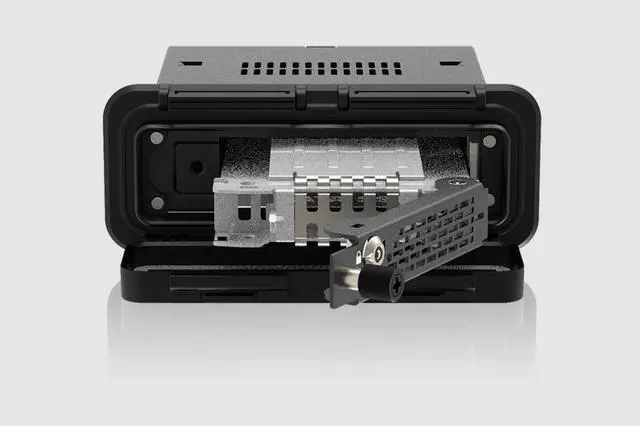

The full-metal removable drive caddy supports hassle-free hot-swapping, significantly reducing downtime during hard drive failuresideal for time-sensitive projects. It accommodates 5 to 15mm high HDDs or SSDs, creating a versatile 2.5 hot swap bay for any standard SATA/SAS drive. Additionally, the Anti-Dust Flap prevents dust from entering the device when the caddy is not installed, maintaining system cleanliness and functionality.

Built with a rugged, all-metal chassis and drive caddy, the ToughArmor MB491SKL-1B 2.5 -inch drive enclosure complies with military standards MIL-STD-810H 516.8 (Shock) and 514.8 (Vibration) and is built with the full-metal construction, making it suitable for military, aviation, and industrial applications where equipment must endure extreme conditions.

The ToughArmor MB491SKL-1B is feature-rich, equipped with a status LED that indicates power and access only when a drive is present, thanks to Active Power Technology.

Enhanced connectivity is ensured with 7-pin SATA data and 15-pin SATA power cables, featuring locking latches to secure connections and prevent accidental disconnections.

Model Number: MB491SKL-1B
Color: Black
Support Drive Size: 2.5" SSD / HDD
Compatible Drive Type: SATA / single channel SAS (SAS host required)
Number of Drives: 1
Max Drive Height: 15mm
Drive Bay: 1 x 3.5" drive bay
Host Interface:
1 x SATA 7pin (support SAS single channel)

Power Input: 1 x SATA 15pin power
Transfer Rate: SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps
Support SDD Capacity: No limitation
Drive Cooling (Passive): Metal heat dispersion
Structure / Material: Full metal
Support Hot-Swap: Yes
Product Dimension (W x H x D): 142.5 x 48.7 x 123.2 mm
Product Net Weight: 421.8 g
Package Gross Weight: 635.6 g
Drive Activity LED Indication: Drive
power: solid green; HDD access: flashing amber
Package Contents: 1 - device, 1 - user manual, 12 - screw, 2 - key
Connector Insertion Rate: 10, 000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH
