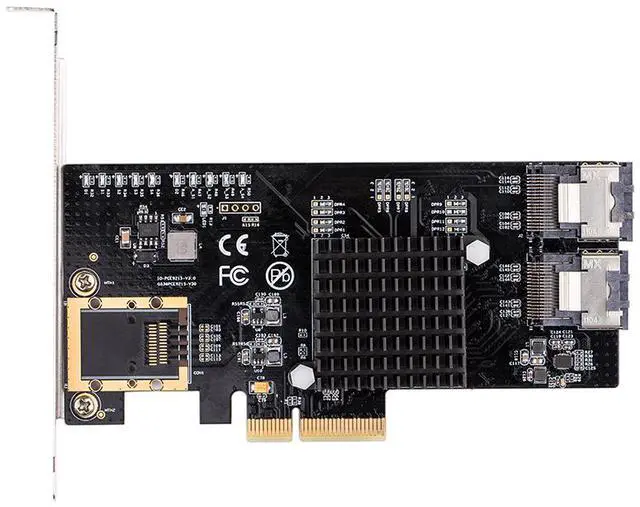

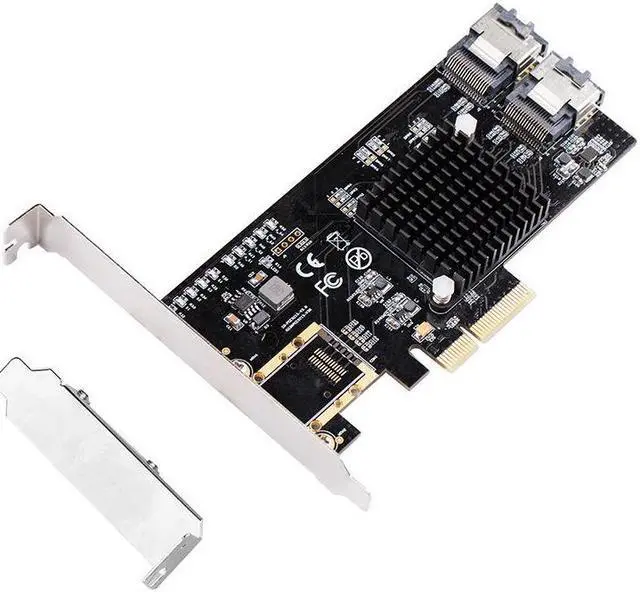

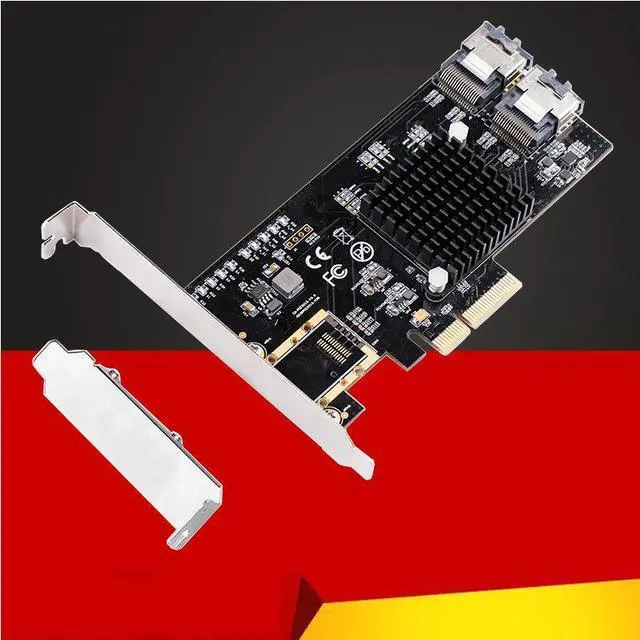

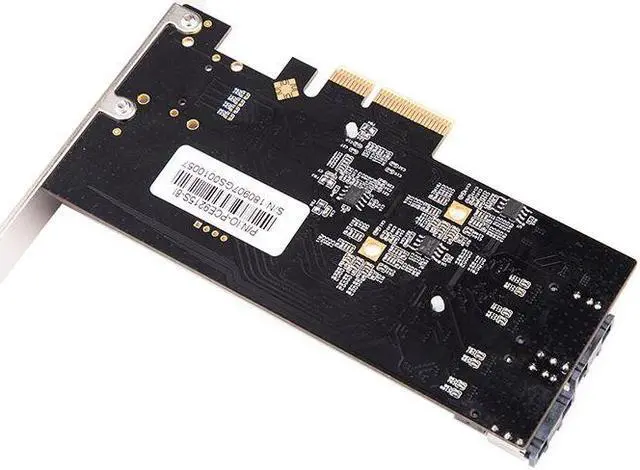

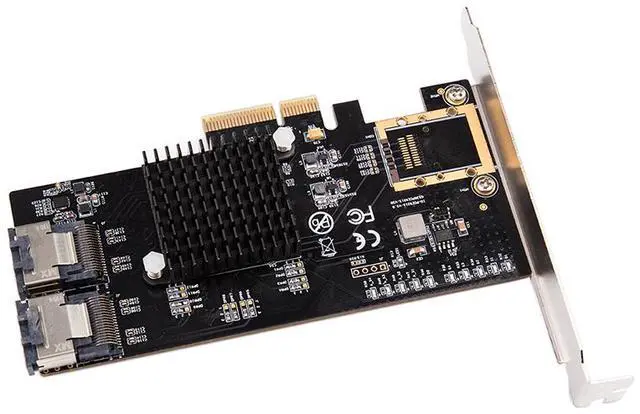

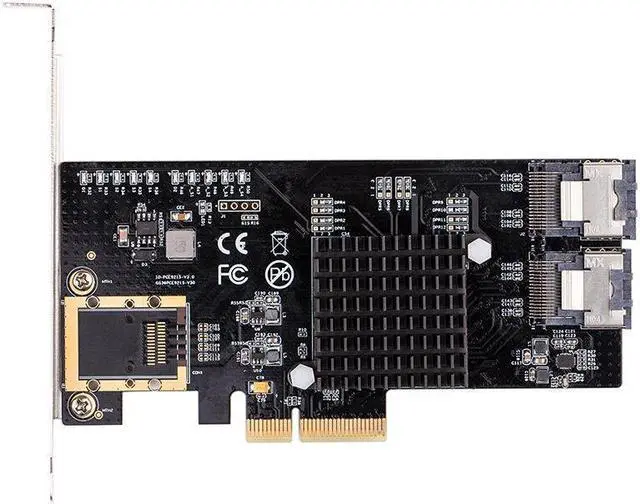

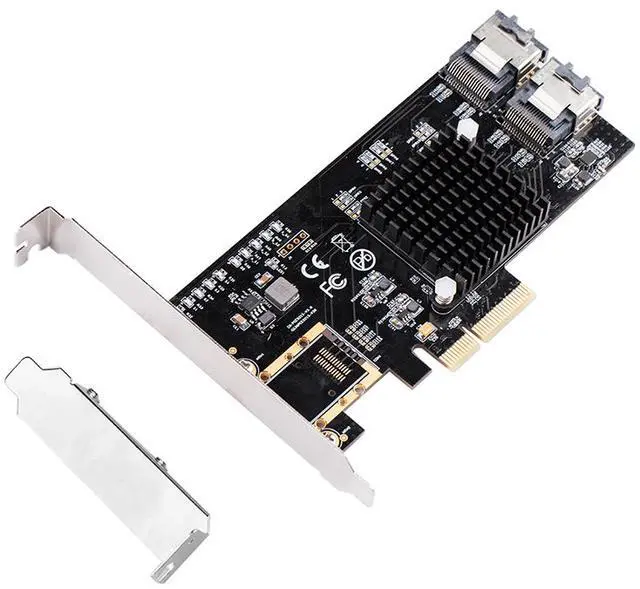

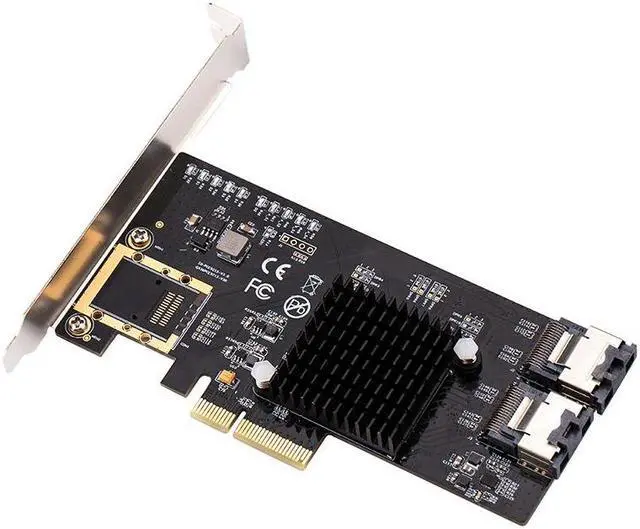

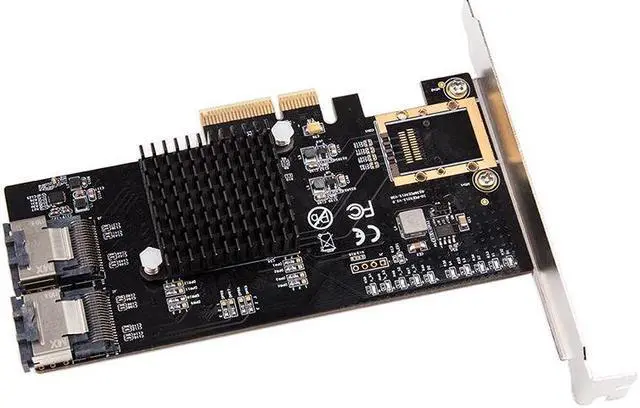

Weastlinks PCI-E/PCIE SATA Card PCI Express SATA Controller PCIE to SATA 3.0 Card 8-Port SATA3 Expansion Adapter +Cable

Feature:
Compatible with PCIe 2.0 specifications
Compliant with Serial ATA Specification 3.1
Built-in Two SFF8087 interfaces
Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Supports Hot plug and Hot Swap.
Supports Native Command Queue (NCQ)
Supports AHCI 1.0 programming interface registers for the SATA controller
Supports aggressive power management
Supports error reporting ,recovery and correction
Supports Message Signaled Interrupt (MSI)
Supports Programmable transmitter signal levels
Supports Port Multiplier FIS based switching or command based switching.
Supports Partial and Slumber Power Management states
Supports SATA Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
Supports Staggered Spin-up
Main Chips: Marvell 88SE9215
Note: Not Supported RAID on PM

System Requirement:
Computer system with one PCI-Express slot available
Supports Windows® XP/Vista/7/8/8.1/10 Server 2003/2008 R2,2016,Linux 2.6.x and above.

Packing list:
1 x PCI-Express to 8 Ports SATA with SFF8087 Card
2 x Mini SAS to SATA Cable
1 x User Manual
1 x Software Driver CD
