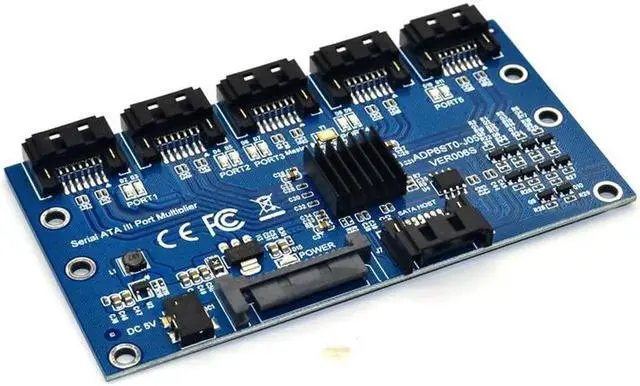

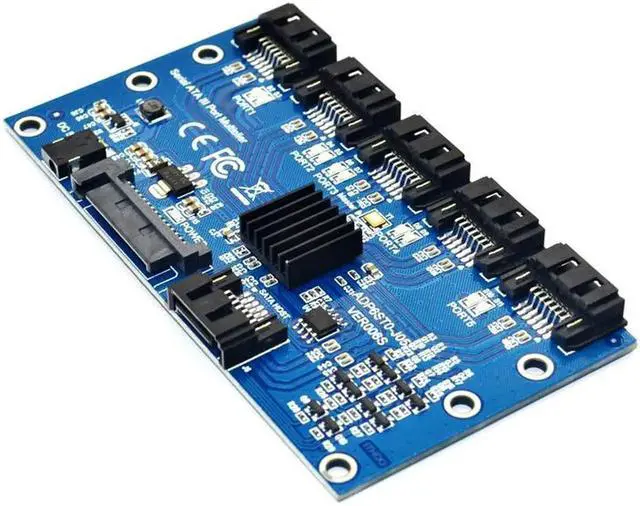

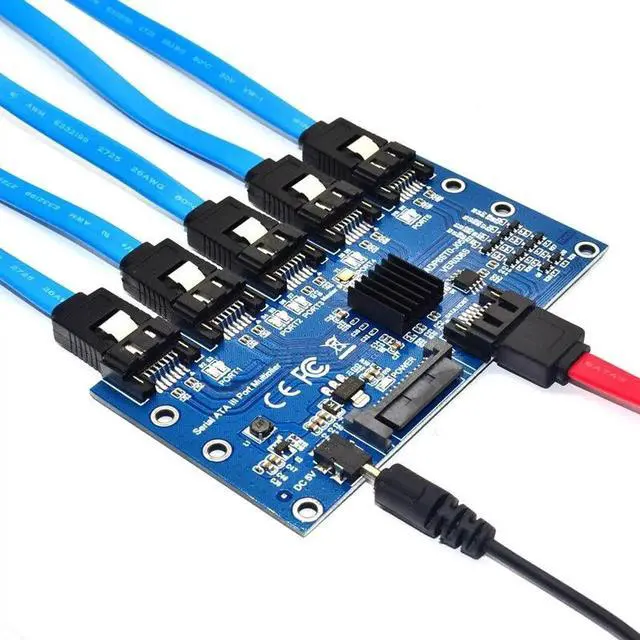

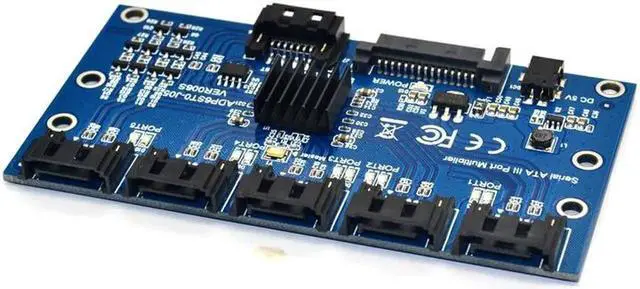

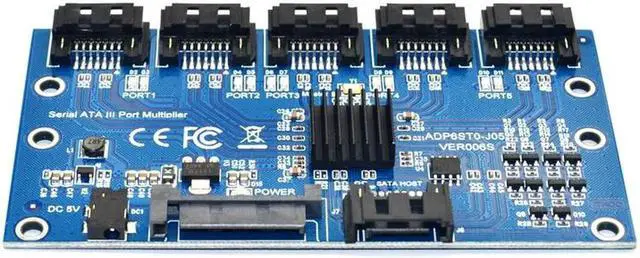

Vszerda 1 to 5 SATA3.0 Port Multiplier Card Adapter SATA3.0 6Gbps SSD HDD Covnerter Riser Card for Motherboard Support PM Expansion Card

1 to 5 SATA 3.0 Port Multiplier Card Adapter SATA 3.0 6Gbps SSD HDD Covnerter Riser Card for Motherboard Support PM Expansion Card

About Description:

Feature:

Supports 6-port 6.0G bps SATA III interface

Output swing control and automatic impedance calibration for SATA III PHY

Supports asynchronous signal recovery

Supports spread spectrum clocking

Supports partial / slumber power saving mode

Automatically speed negotiation

Supports BIST and loopback mode

Supports staggered spin-up (Optional)

Supports Hot-Plug

Supports asynchronous notification

Supports ATAPI drives

Supports command-based and FIS-based swit

Compliance:

Compliant with Serial ATA Port Multiplier Spec. Revision 1.2

Compliant with Serial ATA Port Selector Spec. Revision 1.0

Compliant with Serial ATA PHY Electrical Spec. Revision 1.0

Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 3.1

Tips:

1. This expansion card must support the PM (SATA PORT MULTIPLIER) function on the motherboard or the expansion card to recognize 5 hard disks. The general motherboard

SATA does not support this function. If not, only one card can be recognized.

2. Must be connect the SATA Power or DC 2.5 power supply can normal use.

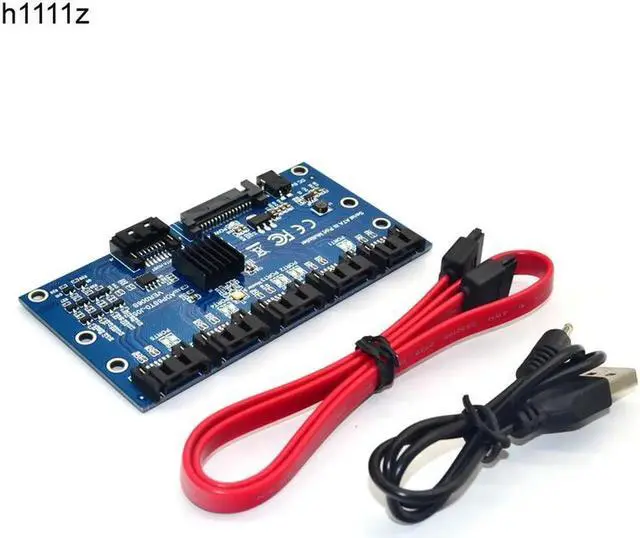

You'll receive:

1pcs x 1 to 5 SATA 3.0 Port Multiplier Card

1pcs x USB to DC Cable

1pcs x SATA Cable

Please check pictures for mor
