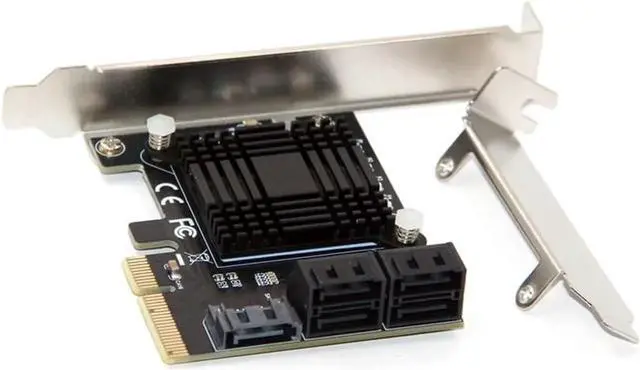

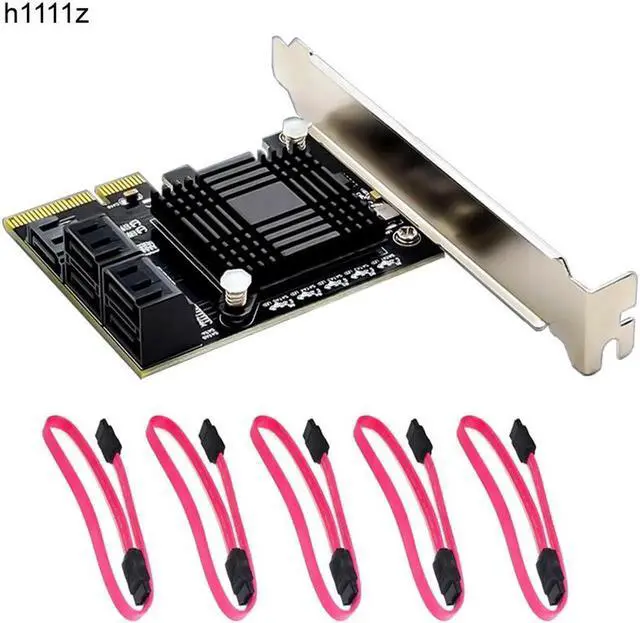

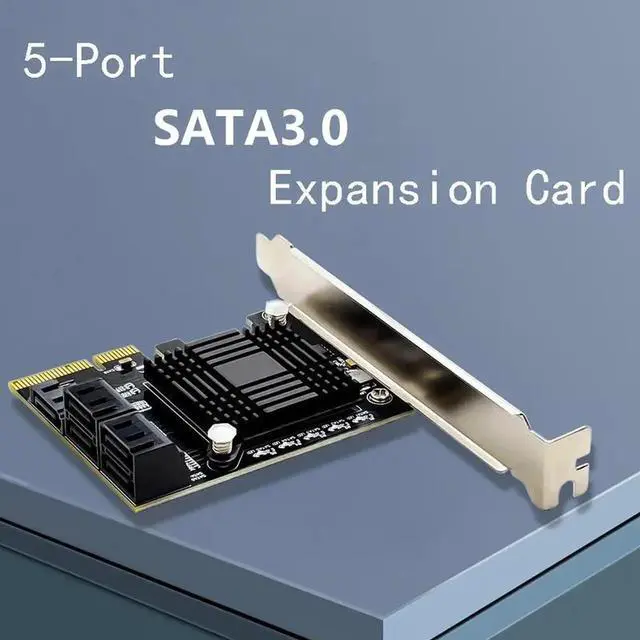

Vszerda JMB585 Chip 5 Port SATA 3.0 to PCIe Expansion Card 4X Gen 3 PCI Express SATA Adapter SATA 3 Converter with Heat Sink for HDD SSD

JMB585 Chip 5 Port SATA 3.0 to PCIe Expansion Card 4X Gen 3 PCI Express SATA Adapter SATA 3 Converter with Heat Sink for HDD SSD

About Description:

Features:

Compliant with Serial ATA 3.0 specification, backward compatible with SATA 2.0 SATA 1.0

Compliant with PCI-Express v 3.0 specification, backward compatible with PCI-Express v 2.0 v 1.0.

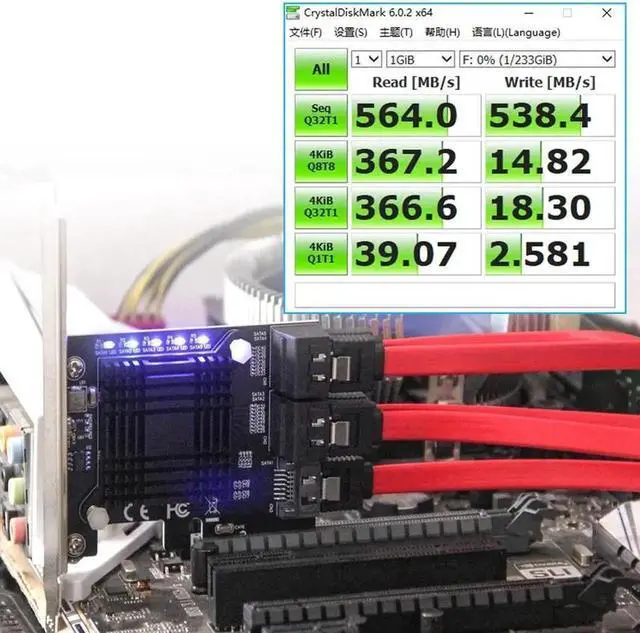

Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps

Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3.

Support 5 SATA

Support AHCI 1.0 mode

Support for native command queue (NCQ)

Support FIS based on port multiplier switch or command switching.

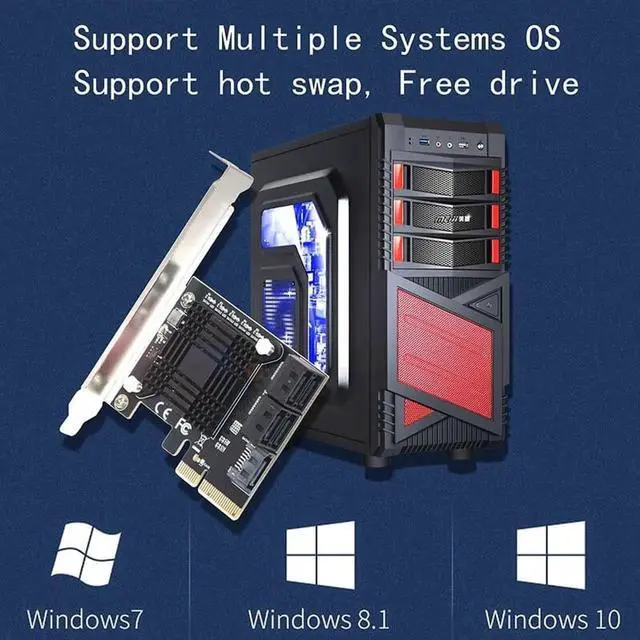

Support hot swap and hot swap.

Compatible with SATA 6G, 3G and 1.5G hard drives

Bus interface: PCI-Expre X4 slot

Expansion interface: 5 SATA 3.0 interfaces

System Requirements: One PCI Express X4 slot is available, supporting both PCI-E X2 X4 X8 X16

Operating system: Windows10/8/7 (32/64 bit) / Vista (32/64 bit) / 2003/2008/linux

Main chip: JMB585

The PCIE to SATA 3.0 riser card is used as follows:

First, the system disk and PCIE to SATA 3.0 riser card connection conditions and solutions:

1. The SATA interface mode of PCIE to SATA 3.0 is AHCI mode. If you want to plug in the system disk on our card, the premise is that your system disk must be installed in AHCI mode when installing the system on the motherboard. Otherwise, it will not pass. Our card riser card starts the system.

2. If it is determined that the SATA interface installation system of the system disk inserted in the motherboard is AHCI mode, then you can directly insert the hard disk into our card, and then enter the motherboard BIOS to set the system disk as the first boot.

3, the above two conditions are available, if it still can not start, or repeated reboots, then the motherboard's hard disk interface and our adapter card
