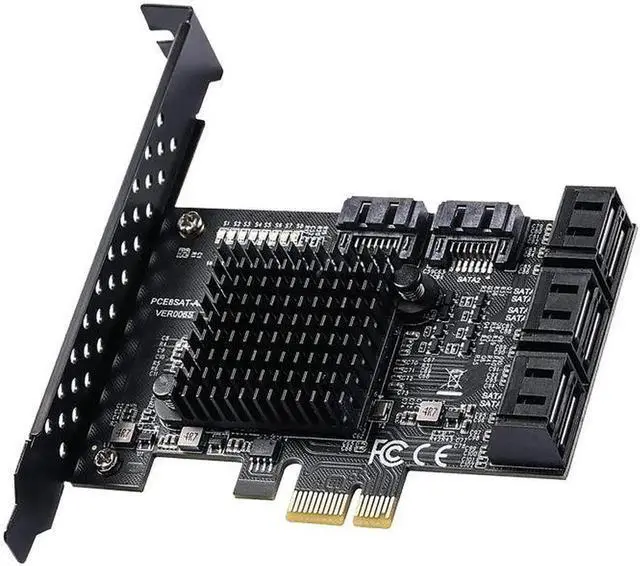

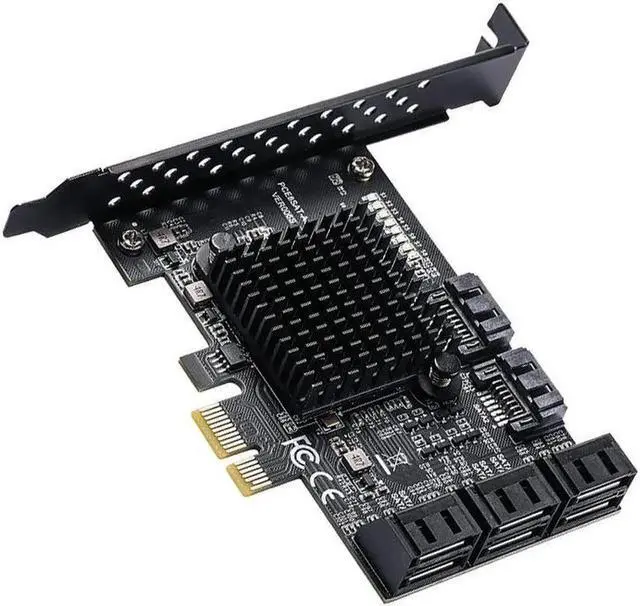

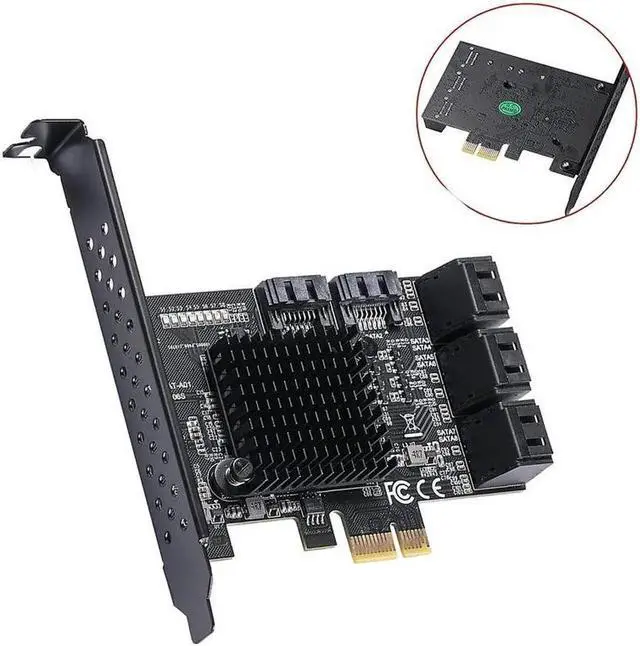

PCIe to 8 Port SATA Expansion Card SATA3 3 6Gb HDD SSD Adapter PCI E Express X1 Controller Extension Riser for Mining

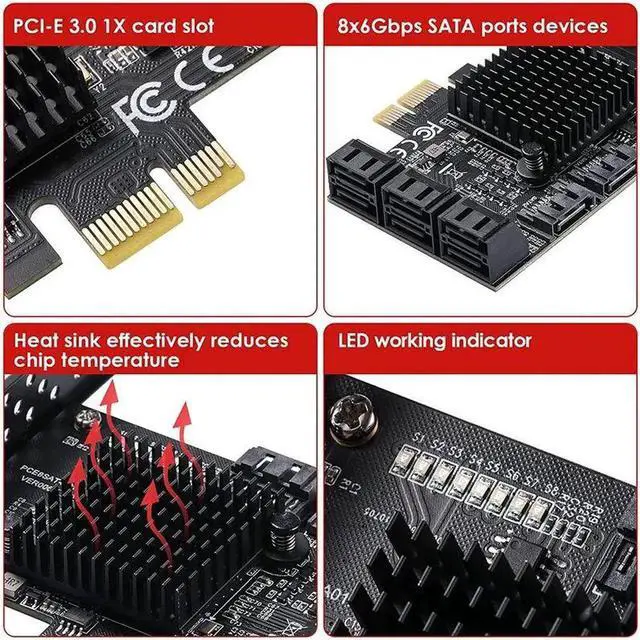

Feature:

1. Good reliability, availability, and high compatibility.

2. Able to achieve fast data transmission, up to 6Gbps transmission mechanism, save more time!

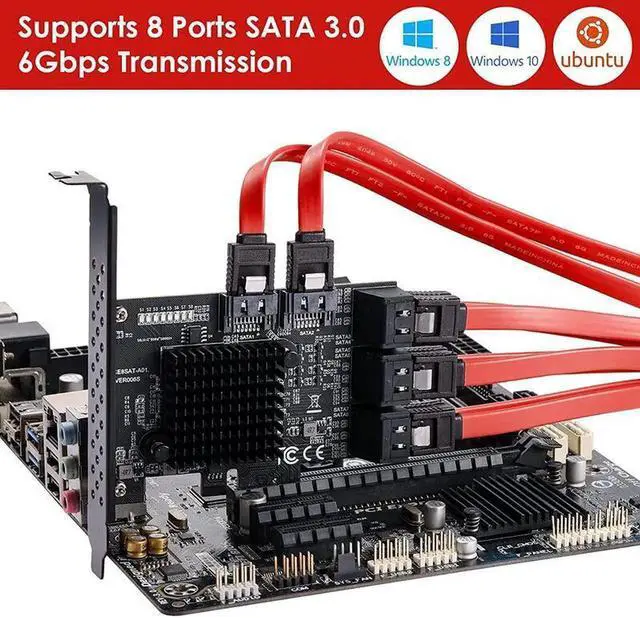

3. 8 standard SATA III ports, which can be connected to multiple devices at the same time.

4. Can be used as a system disk, supports large-capacity hard disks, and can be connected to SSDs!

Specification:

Transmission rate: 6Gbps

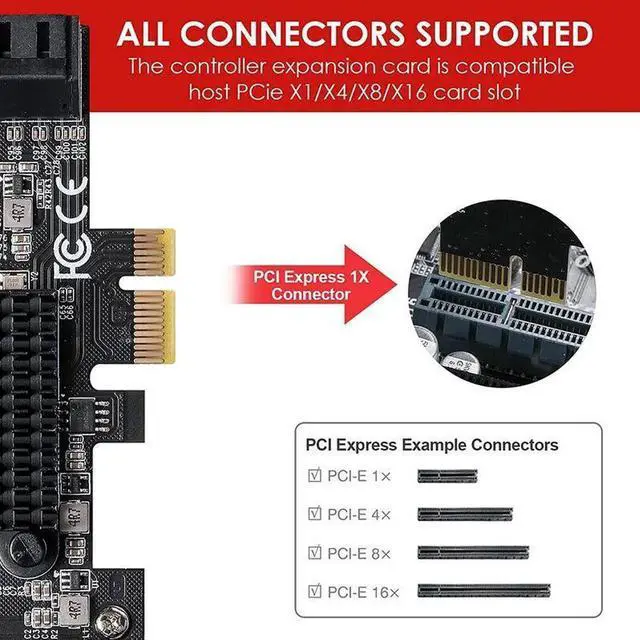

Bus type: PCI-E X1, compatible with PCI-E X4/X8/X16 and other interfaces

Bus speed: PCI-E 3.0

Interface: SATA III

Number of SATA interfaces: 8

Installation conditions: there must be one or more free PCI-E slots on the motherboard

Working temperature: -10~+60 °C

Storage temperature: -20~+40 °C

Application: desktops, workstations, servers, industrial equipment

Main chip: JMB575 + ASM1064

Driver support: for Windows, for Mac, for NAS, for LINUX, etc.

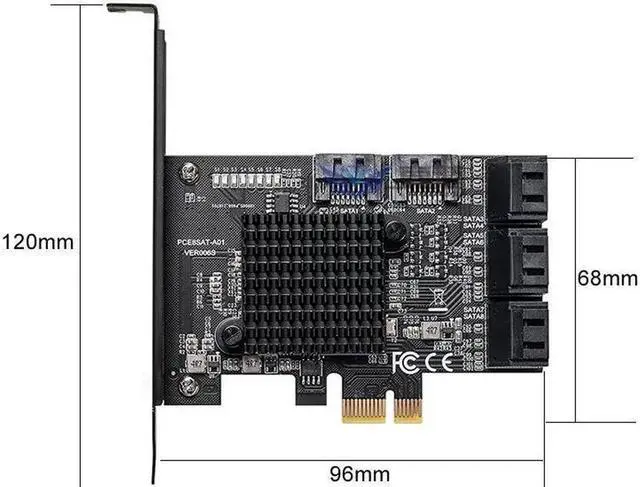

Product size: 120*96*68mm

Product weight: 80g.

Packing List:

1 x PCIE 8 Port SATA 3.0 Expansion Card

1 x Low Profile Bracket
