SK9 M.2 Dual PCIE 4.0 Adapter for NVMe / NGFF SSD With Turbo Fan, NVME (m Key) and SATA (b Key) SSD to PCIe x4 X8 X16 Slot

Features:

SK9 Dual M.2 PCIE Adapter for SATA or PCIE NVMe SSD, with a Turbofan, M.2 SSD NVME (m Key) and SATA (b Key) 22110 2280 2260 2242 2230 to PCI-e x 4 Host Controller Expansion Card.

With the channel of PCI-E 4.0 X4the speed will be enhanced up to 64 Gbps.5000+ MB/s random Read and 4500+ MB/s Write (Max)NOTE: SATA SSD ONLY SUPPORT 6Gbps (600Mb/s Max).

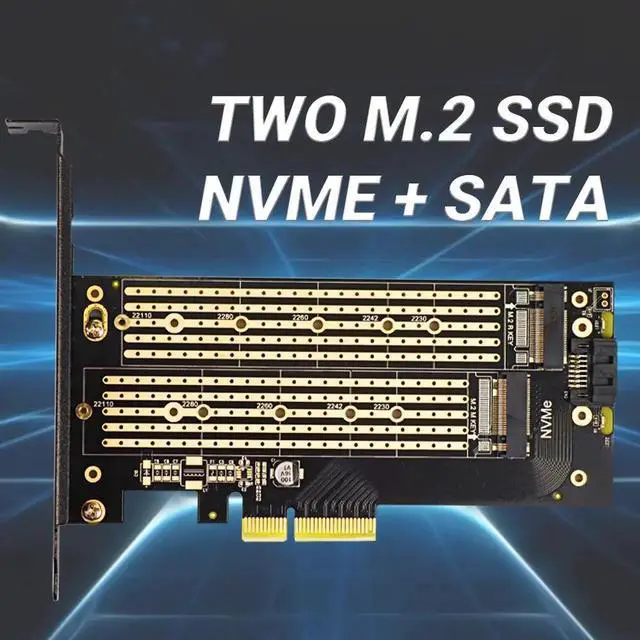

Supports two M.2 SSD simultaneously (One SATA interface and one NVMe interface).

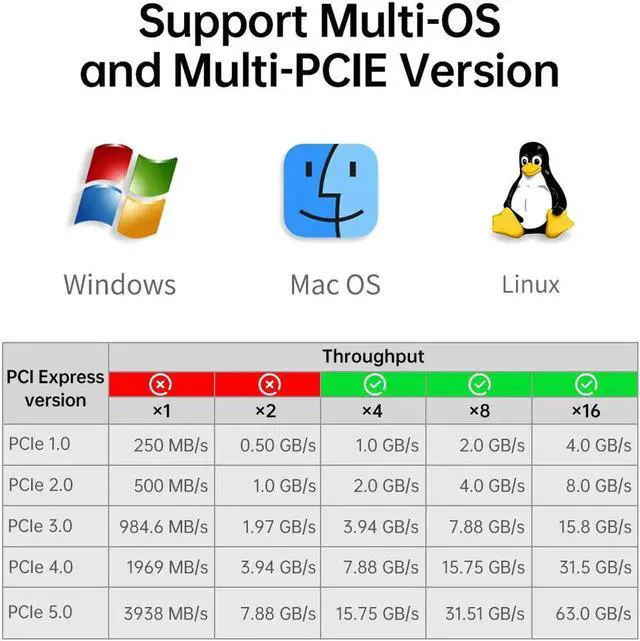

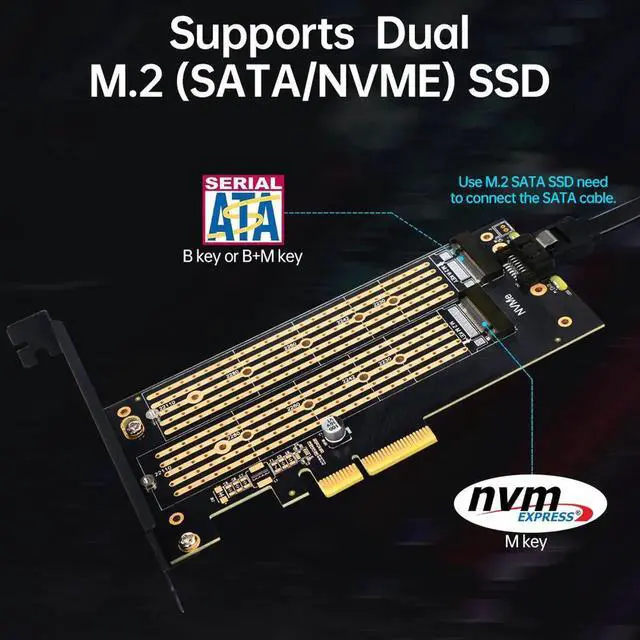

Converts one M.2 NVMe SSD (M Key) interface to PCIe 4.0 x4/8/16 interface (PCIe 3.0 2.0 1.0 Compatible), Converts one M.2 SATA SSD (B Key) interface to SATA 6Gbps interface (SATA cable connection required).

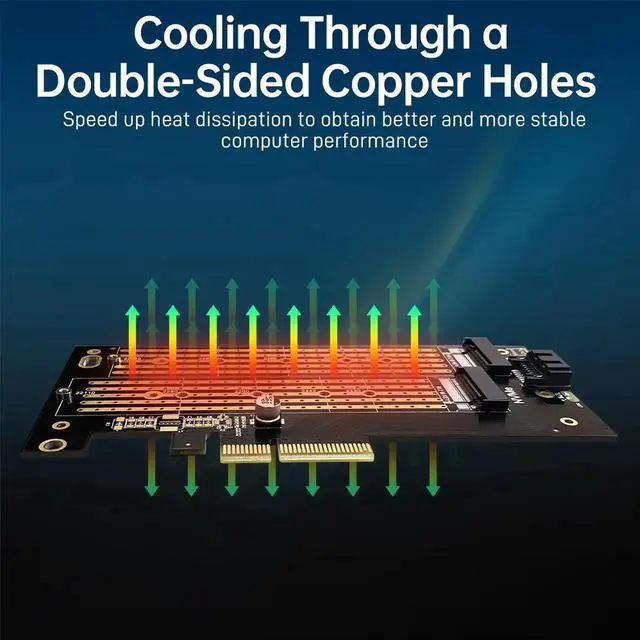

With advanced heat sink solution,PCB 24 X 5 copper hole effective ventilation heat dissipation,Including 2 heat sinks.

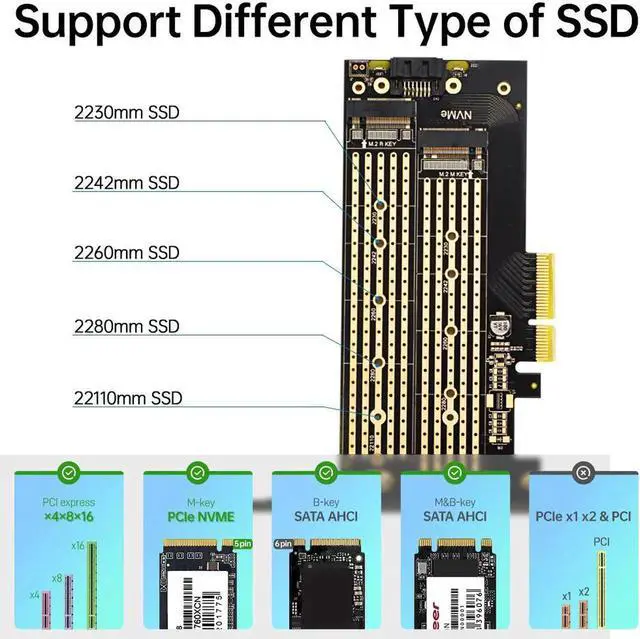

Supports M.2 SSD size 2230, 2242, 2260, 2280, 22110mm.

Including a regular size slot brackets for flexible system chassis installation. LED power and data transfer status. No driver installation required.

NOTE :

You are kindly reminded that the 7-pin SATA cable must be connectedto motherboard if you want to read the M.2 SATA SSD (B Key).

You are kindly reminded that this adapter only support PCIe X4 X8X16 slot. DO NOT support PCIe X1 and PCI slot.

Protect User Date Safety

1. Overload protection

2. Overvoltage protection

3. leakage protection

4. circuit protection.

Packing List:

PCIe 4.0 NVMe/SATA Adapter

Standard Profile Bracket

Screwfriver

SSD Screw

Screws
