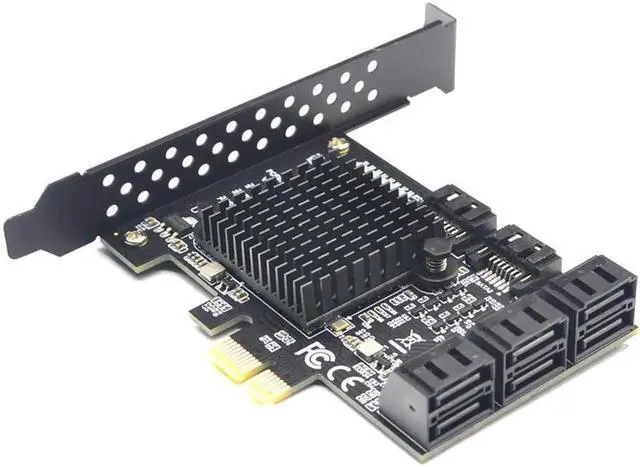

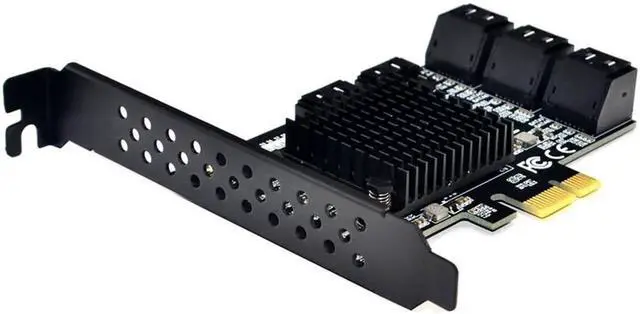

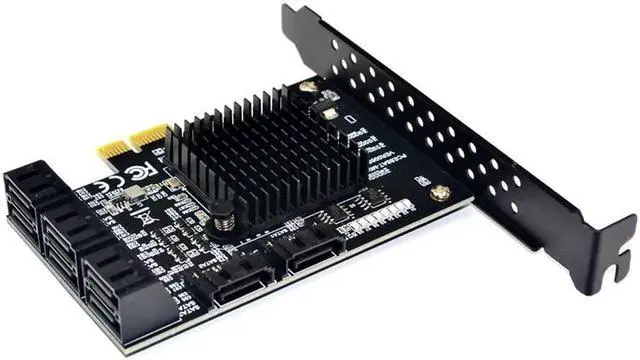

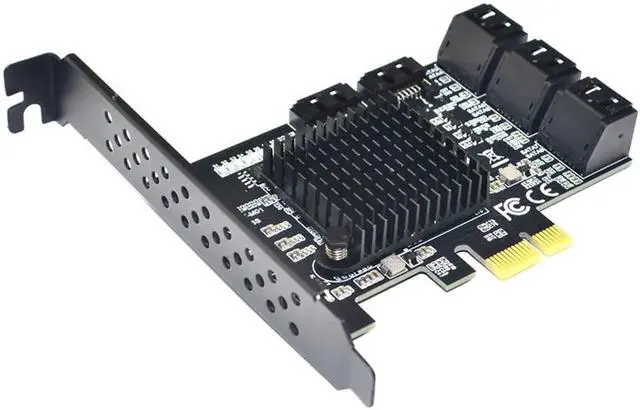

88SE9215 Chip 8 Ports SATA 3.0 to PCIe Expansion Card PCI Express SATA Adapter SATA 3 Converter with Heat Sink for HDD PCIE SATA

Feature:

Installation instructions:

1:Please clean the gold finger of SATA3.0 card by eraser , Plug the SATA cable of the chassis into the card.then connect all the hard disks.

2:Turn off the power of the computer and open the back cover of the PC; Remove the bars corresponding to the free slot on the chassis.

3:Insert the expansion card into the corresponding PCI-E expansion slot of the host

4:Secure the iron strip of the expansion card to the chassis with a screwdriver.

5:Close the chassis and plug in the power cord to boot. After entering the system, install the driver

Driver Installation"For Windows XP/Vista/7/8/10(32/64 bit)"1. Insert the companion drive CD into the CD drive;2. Open "My Computer", find the location of the disc, open the disc;3. Locate the "CD:/ SATA CARD/Marvell/9215/drvsetup inside the .exe driver file;4. Then follow the instructions of the computer to complete the installation, then restart the computer

Check the installation:Suitable for PCI-E card with Marvell 88SE9215+JMicron JMB5xx Chipset:Open the "Device Manager", expand the "Universal Serial Bus Controller" option, if there is "Marvell 92xx SATA 6G Controller", the hardware and driver are installed successfully;

if there is "unknown device" or other information, the hardware or The driver did not install successfully.If there is "Standard SATA AHCI Controller" hardware information under "Device Manager" or IDE ATA/ATAPI Controller, that means the driver didn't installed under windows10.

Marvell 88SE9215 chipset,

Ports: 8 SATA 6GB/s Ports,

Compliant with PCI-E Specification V2.0 and backward compatible with PCI-E 1.X,Supports Native Command Queuing (NCQ),

Compatible with SATA 6G, 3G and 1.5G Hard drives,

Compliant with PCI-E Specification v2.0 and backward compatible with PCI-E v1.x,PCI Express x1 Interface, and Compatible with PCI Express x1, x2, x4, x8 and x16 Slots

Marvell 88SE9215+JMicron JMB5xx chipset

Supports 10TB hard disk drives

Non-RAID standard SATA controller

System Requirements:Windows 10/8.1/8/7(32/64bit)/XP/Linux

Interface:PCI Express x1 interface. Compatible with PCI-E X1,X4,X8,X16 Slots

colour:black

Material:Metal +pc

Note:

The SATA3.0 PCI-E card must be installed in the PCI-E slot of the motherboard, and can not be inserted into the PCI slot.

The fastest speed is 380-450m/s in PCI-E 2.0 . If it is plugged into PCI-E1.0, the speed only runs 200-300m/s. Different computer configurations and sata ssd have different speeds. If all ports are used at the same time, the speed will slow down.

We recommend to use this SATA 3.0 Card in PCIE2.0 or 3.0 slot, so as to get the fastest speed.

SATA Port Multiplier is not supported if the driver is not installed.

We must install the driver to recognize all the hard disks.

Be sure to turn off the power of the computer before inserting or removing the card, and then insert the card to avoid damage to the motherboard or expansion card.

If there is no CD-ROM or driver disc can not be read, you can contact retailer to send driver for you.

Only the above package content, other products are not included.

Packing list:

1 x SATA 3.0 Expansion Card

1 x Low Profile Bracket
