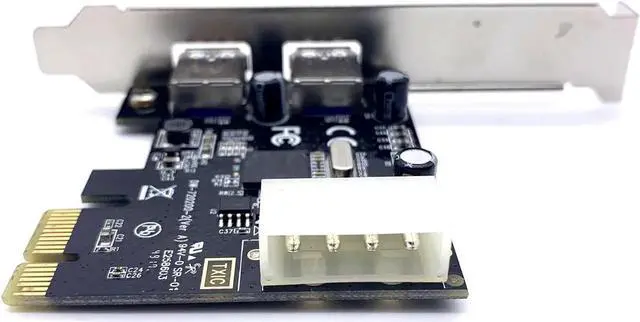

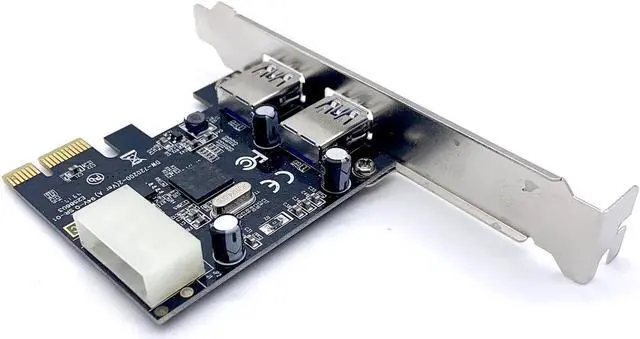

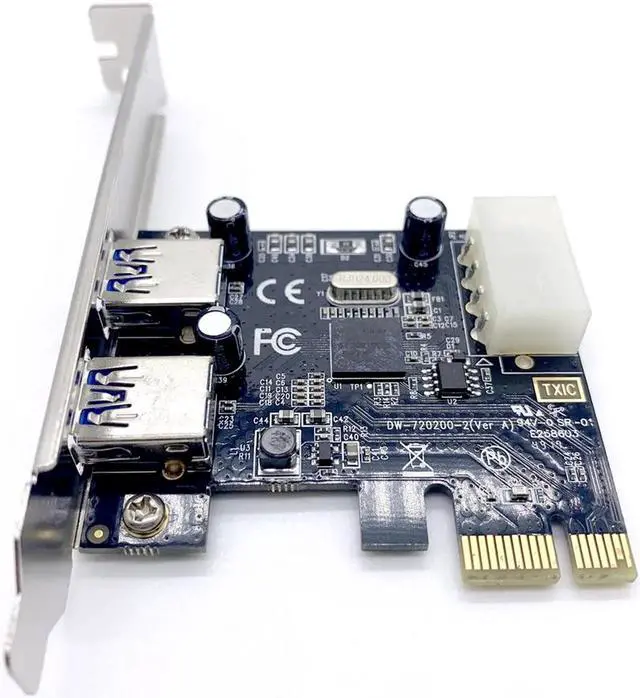

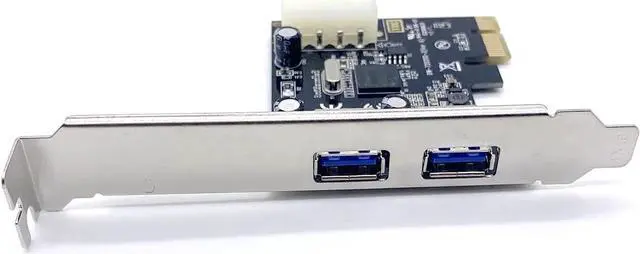

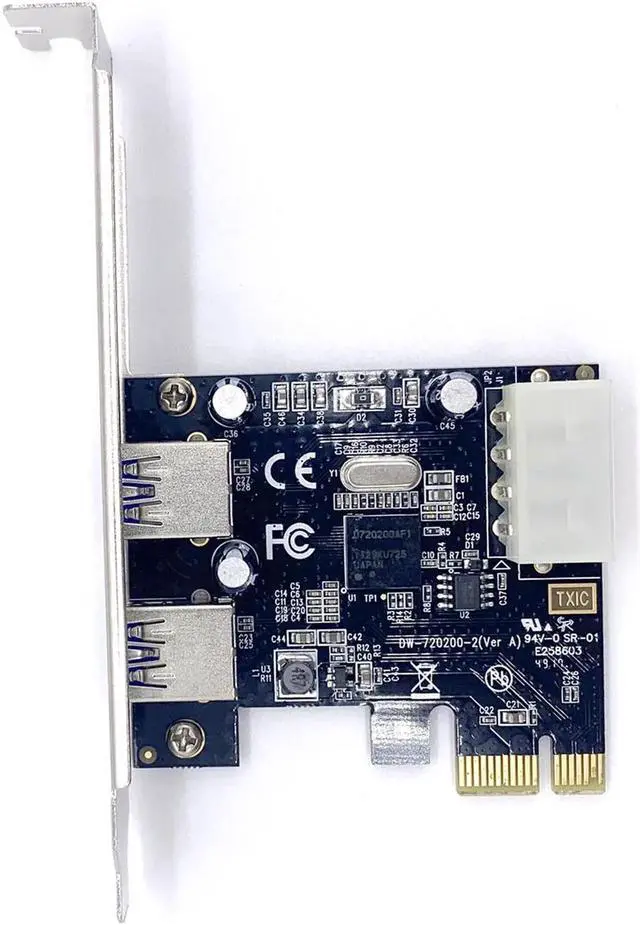

PCIE to 2 Port USB 3.0 PCI Express 4-pin IDE Connector Adapter USB3.0 Add On Card With Low Profile

Features:

System Requirements:

PC with 512MB of RAM and 1.0GH z or faster processor.

1 available PCI Express 1. x or 2. x slot.

32-bit & 64-bit Windows Vista/Server 2008/Windows 7.

Note:

To achieve the maximum throughput, the PCI-Express slot must be version 2.0 or higher. Performance per port may decrease if multiple ports are transferring data simultaneously due to limited throughput of the PCI-Express slot.

To meet USB 3.0 transfer speed, high quality USB 3.0 cables and devices are required.

Supports both 32-bit & 64-bit OSes.

Make sure the power is well connected; otherwise you will see a "Power Surge on Hub Port" message error and no 5V bus power in USB ports.

The file NEC (Renesas) -201-202-DR-WIN-20120531 of the CD is for PCI Express Card.

Specifications:

Item size: 12 * 6.5 cm / 4.7 * 2.6 in

Item weight: 45g / 1.6 oz

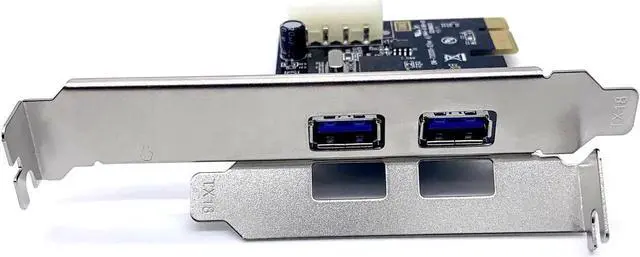

Low Profile Bracket size: 8 * 1.8 cm / 3.1 * 0.7 in

Package size: 15 * 13 * 3cm / 5.9 * 5.1 * 1.2 in

Package weight: 110g / 3.9 oz

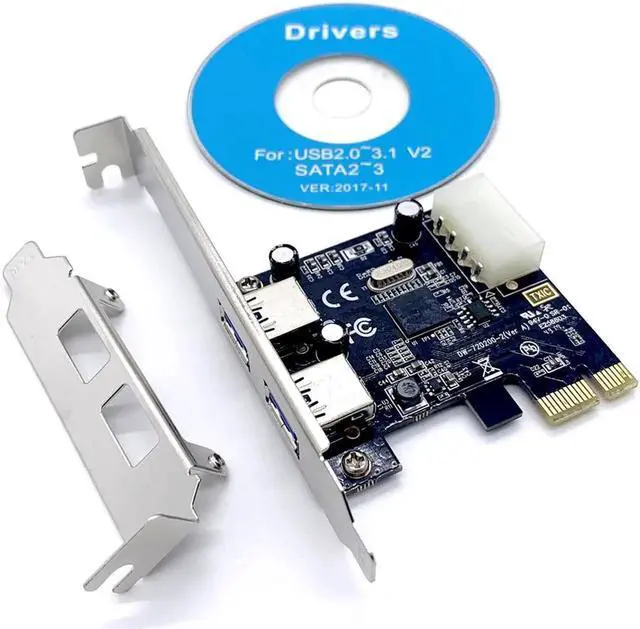

Package list:

1 * PCI Express Card

1 * Software Drivers CD

1* Low Profile
