Main image of Aomoproing SFF-8611 Oculink Female SFF-8612 to U.2 U.3 SFF-8639 NVME PCIe PCI-Express SSD Adapter for Mainboard

Alt view image 2 of 5 - Aomoproing SFF-8611 Oculink Female SFF-8612 to U.2 U.3 SFF-8639 NVME PCIe PCI-Express SSD Adapter for Mainboard

Alt view image 3 of 5 - Aomoproing SFF-8611 Oculink Female SFF-8612 to U.2 U.3 SFF-8639 NVME PCIe PCI-Express SSD Adapter for Mainboard

Alt view image 4 of 5 - Aomoproing SFF-8611 Oculink Female SFF-8612 to U.2 U.3 SFF-8639 NVME PCIe PCI-Express SSD Adapter for Mainboard

Alt view image 5 of 5 - Aomoproing SFF-8611 Oculink Female SFF-8612 to U.2 U.3 SFF-8639 NVME PCIe PCI-Express SSD Adapter for Mainboard

Shop All Aomoproing Products | Visit Yz Electronic Store

Aomoproing SFF-8611 Oculink Female SFF-8612 to U.2 U.3 SFF-8639 NVME PCIe PCI-Express SSD Adapter for Mainboard

SFF-8611 Oculink Female SFF-8612 to U.2 U.3 SFF-8639 NVME PCIe PCI-Express SSD Adapter for Mainboard

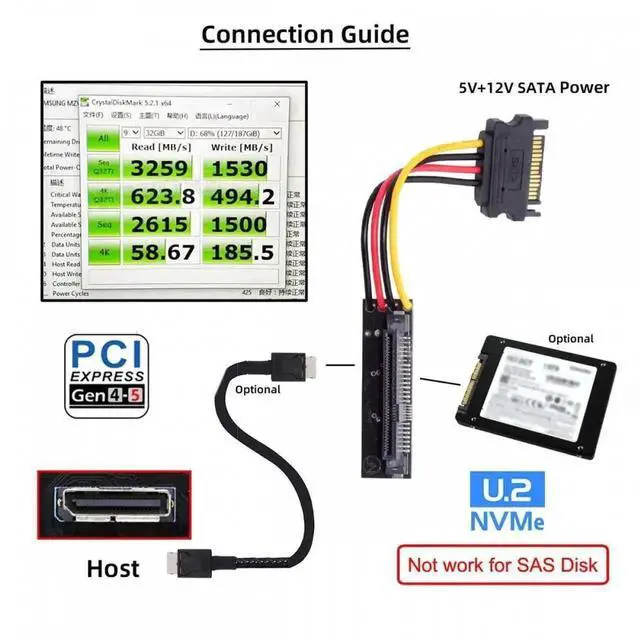

This convertor expands the SFF-8639 U.2/U.3 by one SFF-8612 oculink interface. It can be connected e.g. one SSD by using an optional cable.
The card transmits PCI Express 4.0/5.0 signals using the NVMe protocol.

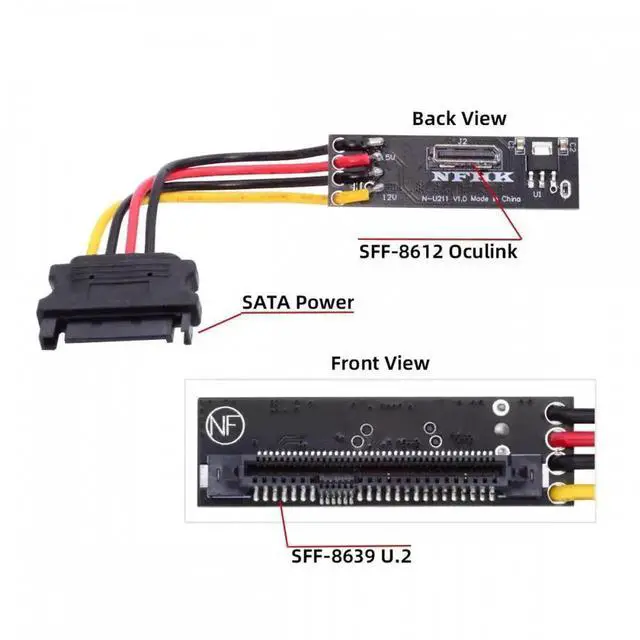

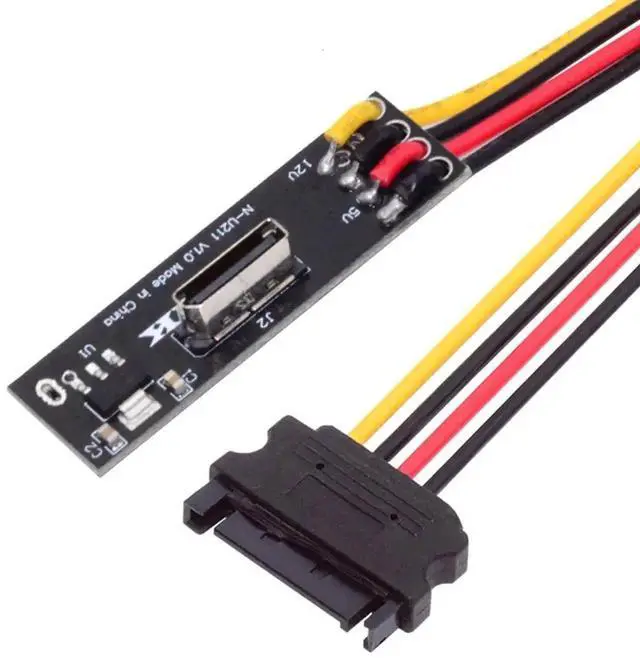

Connectors: 1 x OCuLink SFF-8612 female and 1 x SFF-8639 U.2/U.3 femaleand 1 x SATA power.
Data transfer rate up to 64Gbps, Supports NVM Express (NVMe) 1.2.
The vertical connector allowing you to connect it to a female port, even if space around the port is limited.
The speed and other properties is not changed,only form conversion interface.Transparent to the operating system and does not require any software drivers.

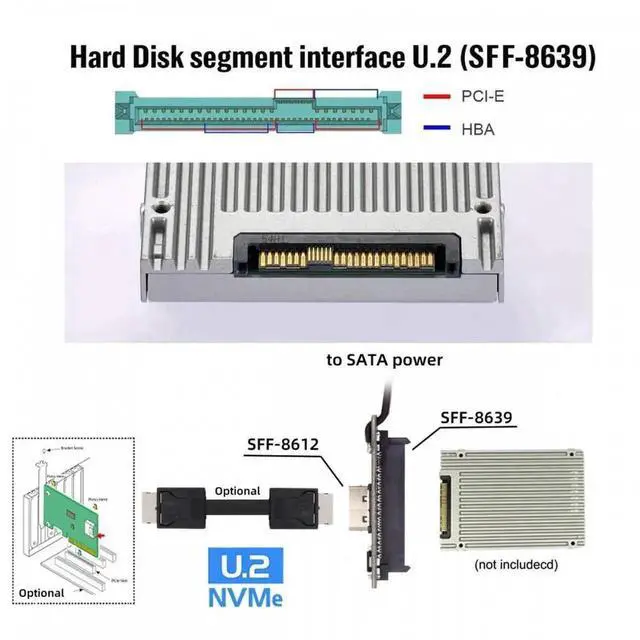

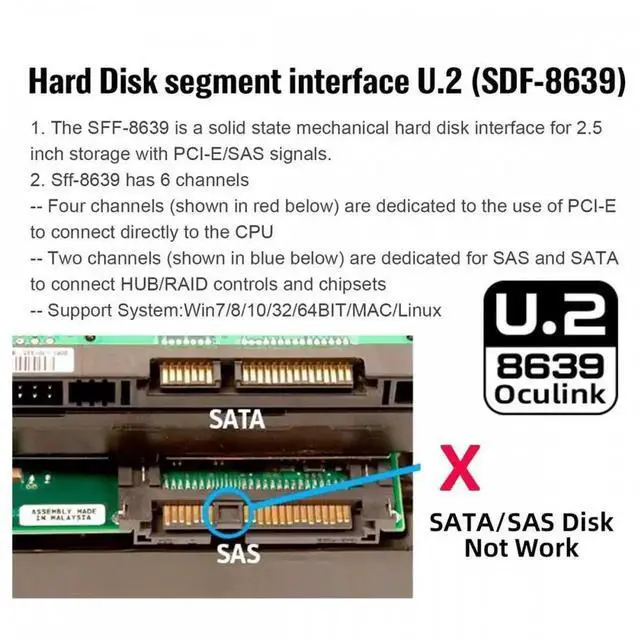

U.3 drives are still backward compatible with U.2, though—the U.3 drives determine whichhost type it is insertedinto(by using different combinations of HPT0 and HTP1 being open or ground)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

SFF-8611 Oculink Female SFF-8612 to U.2 U.3 SFF-8639 NVME PCIe PCI-Express SSD Adapter for Mainboard
This convertor expands the SFF-8639 U.2/U.3 by one SFF-8612 oculink interface. It can be connected e.g. one SSD by using an optional cable.
The card transmits PCI Express 4.0/5.0 signals using the NVMe protocol.
Connectors: 1 x OCuLink SFF-8612 female and 1 x SFF-8639 U.2/U.3 femaleand 1 x SATA power.
Data transfer rate up to 64Gbps, Supports NVM Express (NVMe) 1.2.
The vertical connector allowing you to connect it to a female port, even if space around the port is limited.
The speed and other properties is not changed,only form conversion interface.Transparent to the operating system and does not require any software drivers.
U.3 drives are still backward compatible with U.2, thoughthe U.3 drives determine whichhost type it is insertedinto(by using different combinations of HPT0 and HTP1 being open or ground)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Yz Electronic Store Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIC0FCKPX0690
