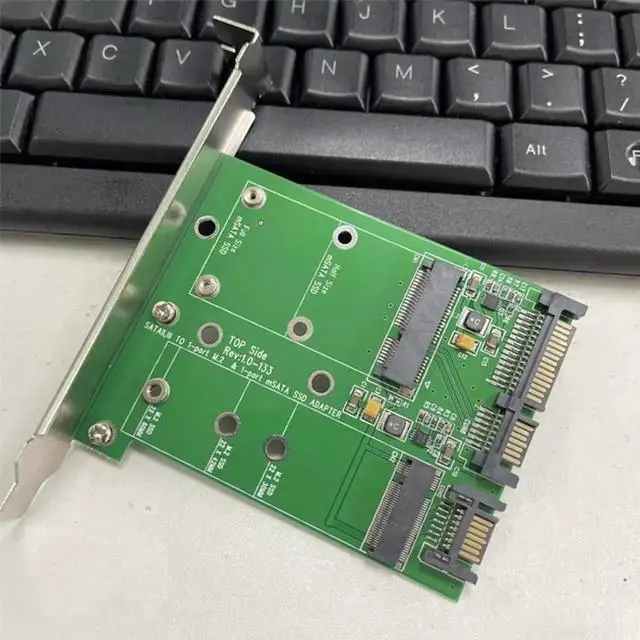

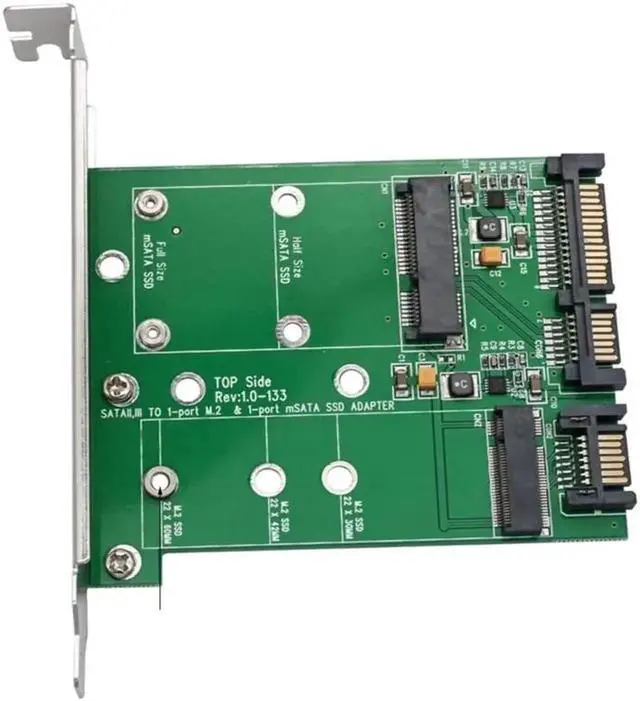

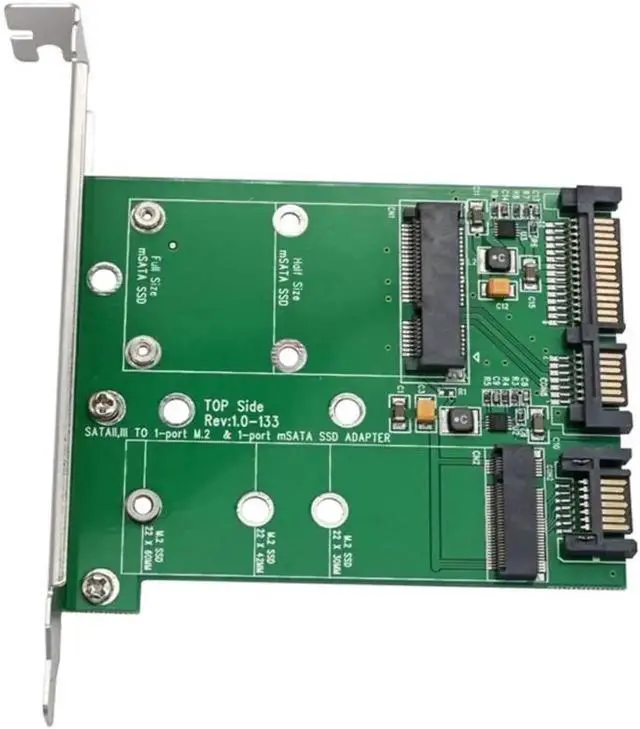

Aomoproing M.2 NGFF Msata SSD to Sata 3.0 2.5" Adapter M.2 SSD Converter Riser Card for PC Laptop Add On Card up to 6Gdps

Features

M. 2 (NGFF) and mSATA SSD to SATA III adapter card.

M. Revised version 0.9 of the 2 specifications.

Serial ATA Spec.Reversion 3.2.

Supports M.2 card sizes: 22x30, 22x42, 22x60.

Supports mSATA SSD sizes of 26.8x30, 50.95x30;

M.2 Key B Card Type.

Supports a high-speed mass storage interface that supports high-speed SATA3/6Gbps.

52 pin mini PCl-e connection.

Supports SATA specification revision 2.6.

Support TA/ATAP-7 revisions.

Using power supply system: 3.3V and 1.8V.

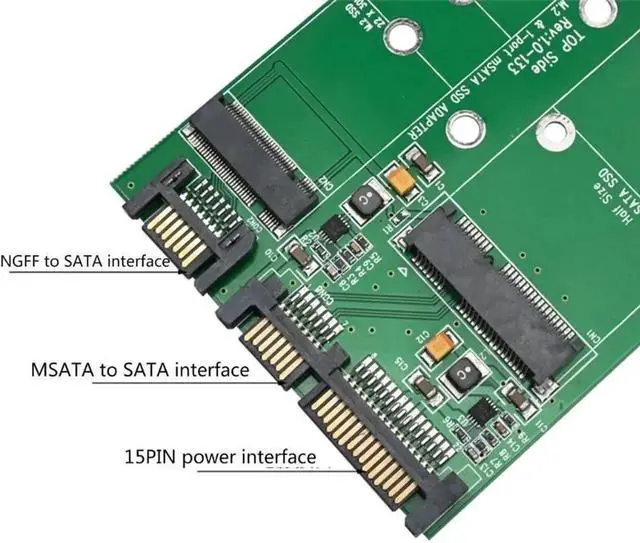

Port: Standard SATA22 pin connector.

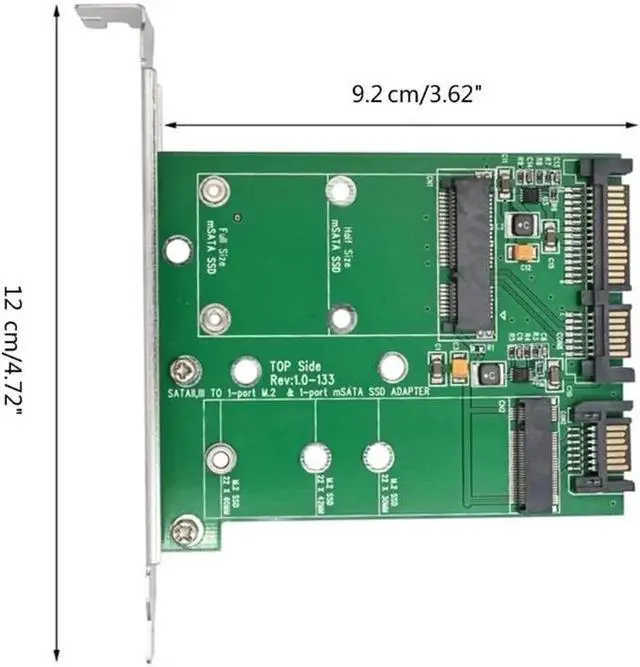

Board size: length 90MM x width 75MM, baffle iron bar height 122MM.

This chip capable of supporting both M.2B SSD and MSATA solid-state drives.

Specifications:

Material: Metal

Buit in interface: B-key interface

Support hard disk: 2230/2240/2260/2280

Note:

Please allow 1-3mm measuring deviation due to manual measurement.

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Package Includes:

1 M. 2 (NGFF) and mSATA SSD to SATA III adapter card

3 Screw (M.2)
