JAENFONG SFF-8639 NVME U.2 to Combo NGFF M.2 M-Key SATA PCIe SSD Adapter for Mainboard Replace SSD 750 p3600 p3700

SFF-8639 NVME U.2 to Combo NGFF M.2 M-key SATA PCIe SSD Adapter for Mainboard Replace SSD 750 p3600 p3700

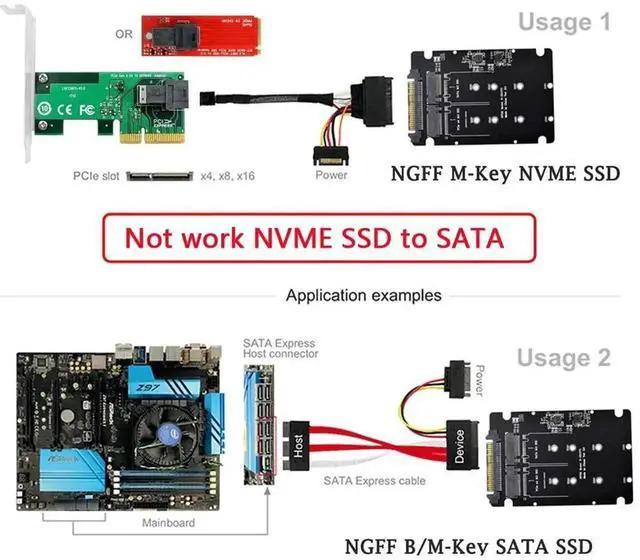

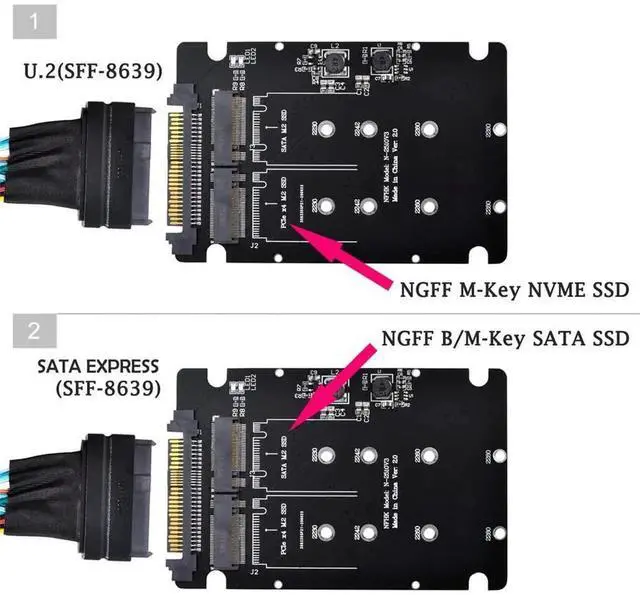

This U.2 M.2 converter enables two different usage applications.

1. One M.2 PCIe SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5 HDD. The converter can be installed into the system internally through the U.2 68 pin interface.

2. One M.2 SATA SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5 HDD. The converter can be installed into the system internally through the SATA Express interface.

The converter can be installed into your system internally through the U.2 68 pin interface.

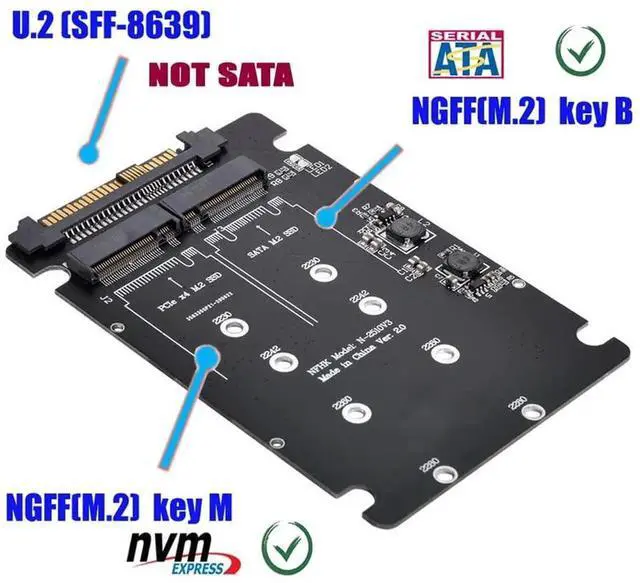

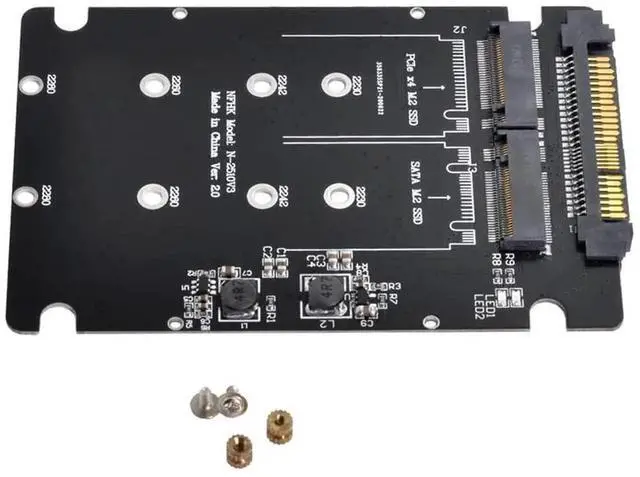

Connector: U.2 SFF-8639 male & Dual 67 pin M.2 NGFF slot

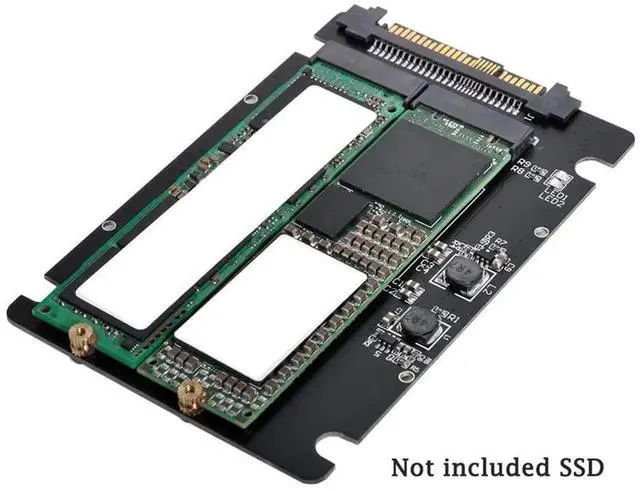

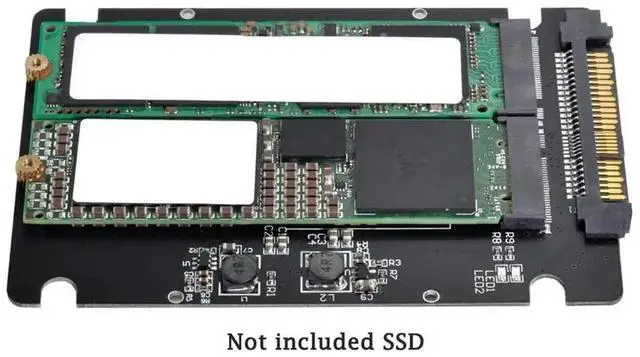

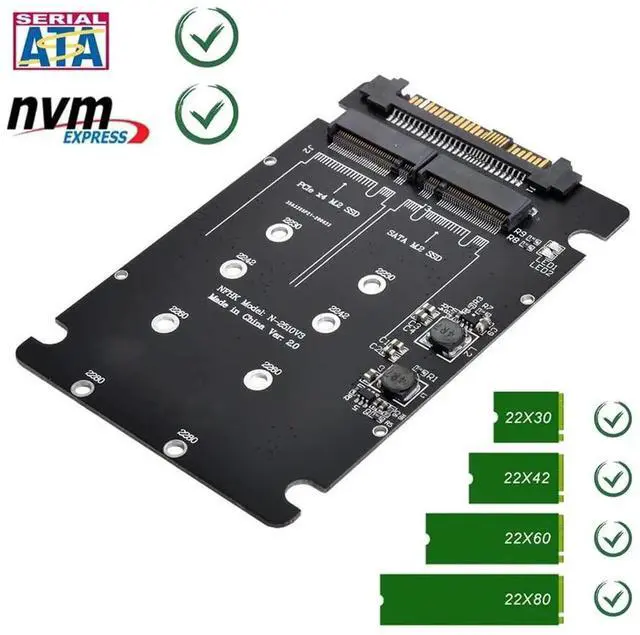

Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA or PCIe

application of double-sided assembled modules supported

System requirements :Windows 10, Linux Kernel 3.16 and A free U.2 SFF-8639 interface
