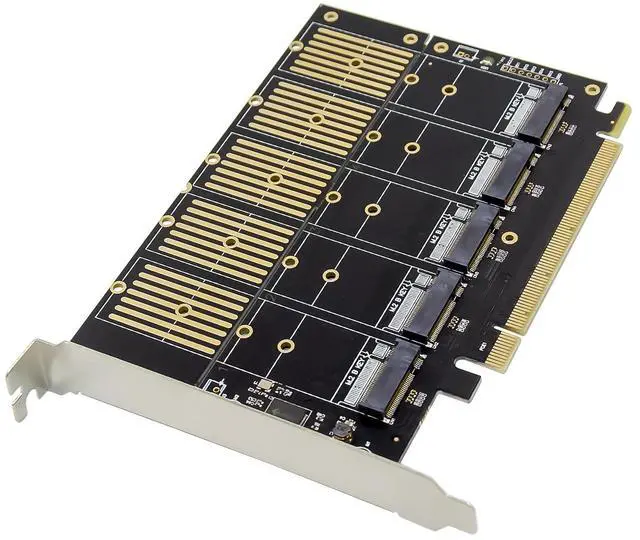

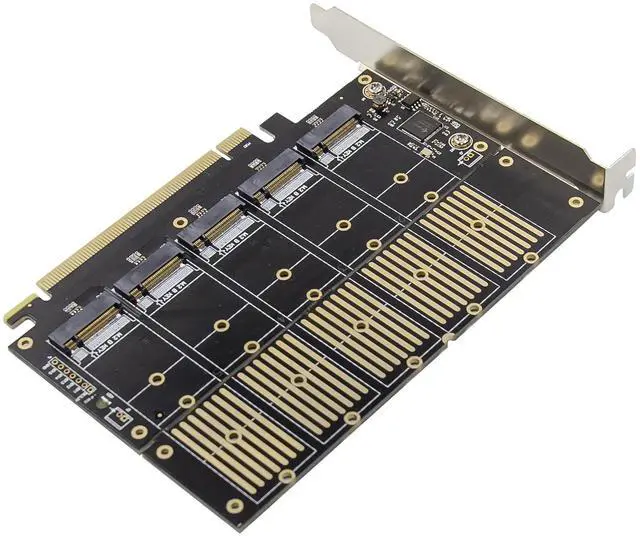

JVFYI PCIe JMB585 5-Port M.2 Key B SATA3.0 Expansion Card

Supports up to two lane of PCI Express

Complies with PCI Express Base Specification Revision 3.1a

PCI Express interface:X16

Supports PCIe Link layer power saving mode

Supports 5 M.2 Key B Port

Each M.2 Key B Port transmit speeds up to 6Gbps

For the SSD type M.2 "B + M Key" or "B Key"

Complies with M.2 Key B SSD Size :2230,2242,2260,2280

Support command-based and FIS-based of Port Multiplier

Complies with SATA Specification Revision 3.2

Supports AHCI mode and IDE programming interface

Supports Native Command Queue(NCQ)

Supports SATA Link Power saving mode(partial and slumber)

Supports SATA plug-in detection capable

Supports drive power control and staggered spin-up

Supports SATA Partial/Slumber power management state

Plug-and-Play Supported, no additional software installation or settings required

Supports Low profile bracket

Chipset: JMB585

Drivers support for Linux , Win7/ Win8/Win8.1 /win10, 32 or 64bit

Package content

1 x PCIe JMB585 5-Port M.2 Key B SATA3.0 Expansion card

1 x Users Manual

1 x Low profile bracket

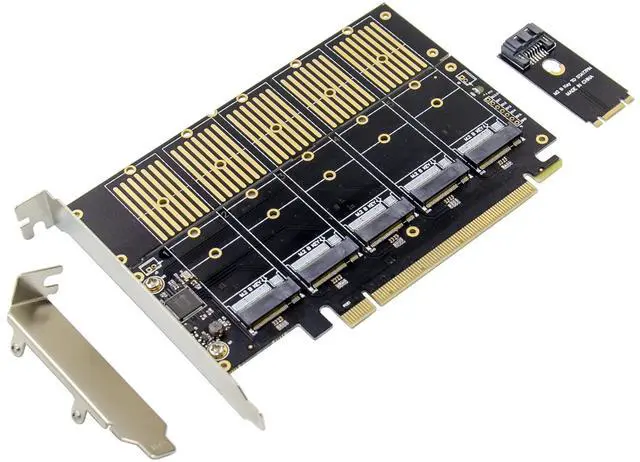

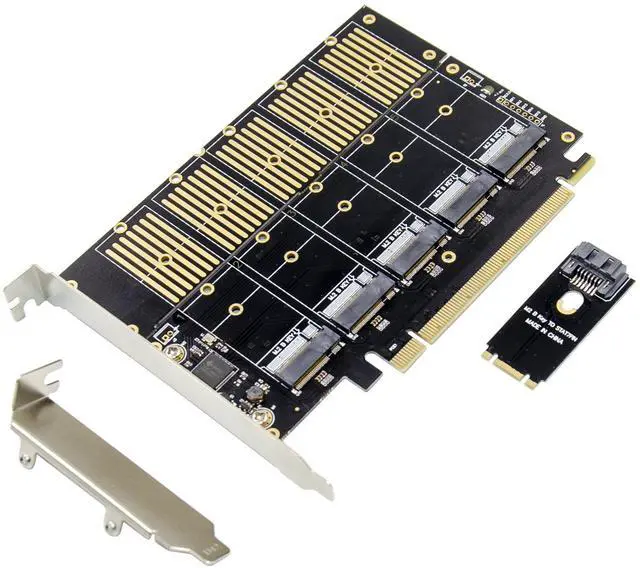

5 x M.2 Key B to SATA Extend card

5 x SATA Cable

Accessories

System Requirements

Linux , Win7/ Win8/Win8.1 /win10, 32 or 64bit

Available PCI Express x16 slot

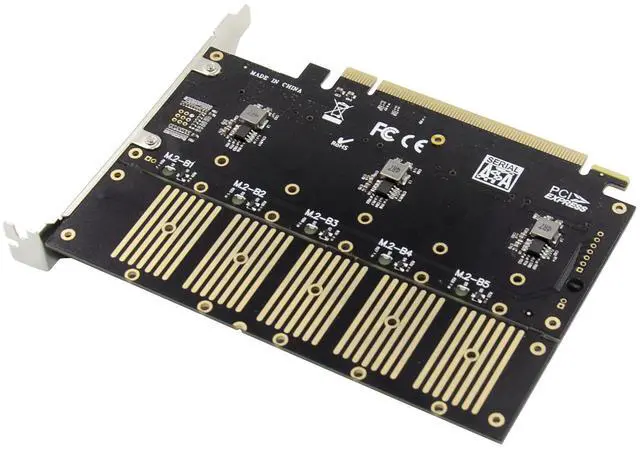

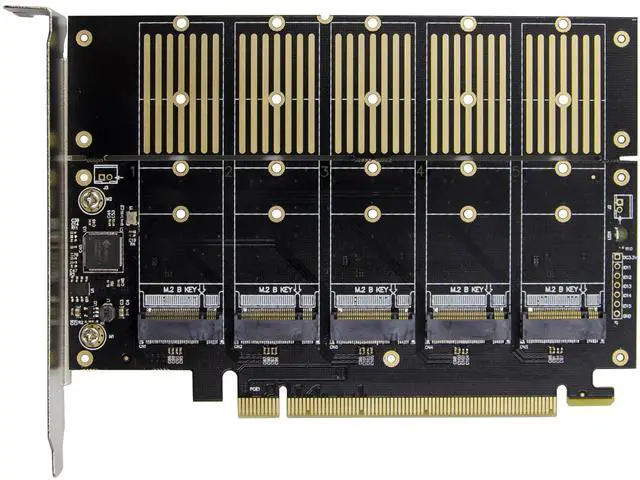

Hardware Description:

M.2 Key B to SATA extend card(Installed on JMB585 adpater can connect with SATA-Port 2.5 inch SSD or the other drive):

Hardware installation

1.Turn off the computer and unplug the power cord.

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter.

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis.

4.Replace the computer cover ,then plug in the power cord.

5.Power on the computer.

Note: if customer using a small host, you need to break the card along the cutting line, and installed the low profile bracket.

Install Drivers and software

Windows Operating Systems

For Windows 7,8,8.1,10 System Operating.

No need other driver, Using Windows In-box drivers to install the JMB585 adapter.
