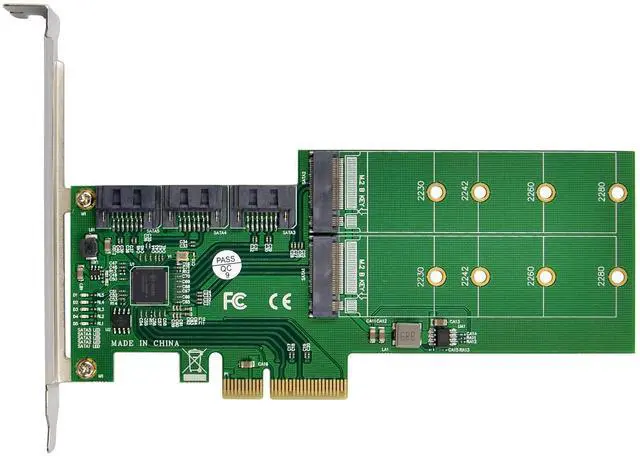

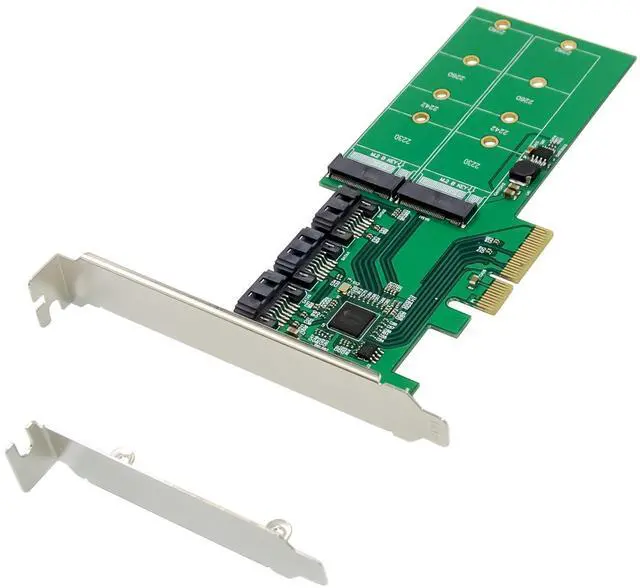

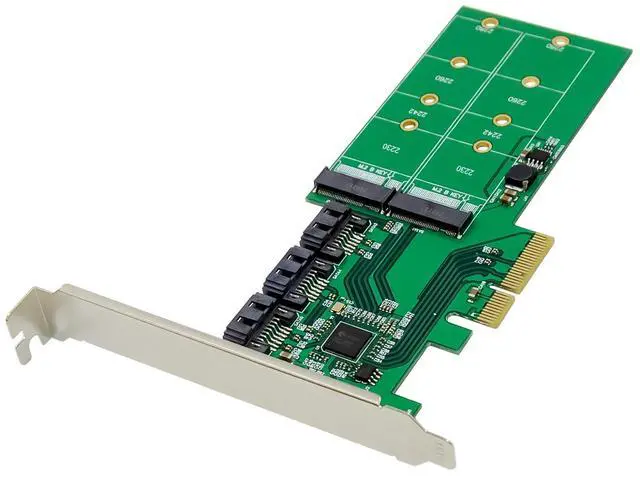

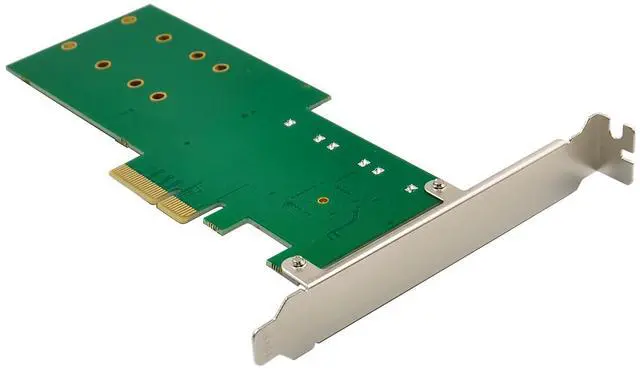

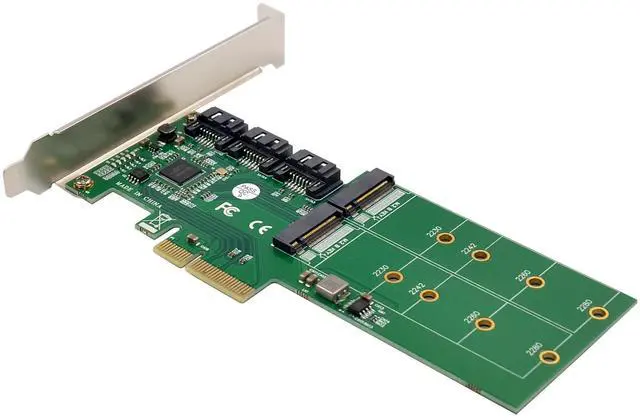

JVFYI PCIe x4 JMB585 M.2 Key B &SATA 6Gbps Expansion Card

Supports up to two lane of PCI Express

Complies with PCI Express Base Specification Revision 3.1a

Supports PCIe Link layer power saving mode

Supports 3-SATA Ports& 2-M.2 Key B Ports

For the SSD type: M.2 "B + M Key" or "B Key", Size :2230,2242,2260,2280

M.2 Key B slot transfer protocol: SATA3.0

Each SATA Port transmit speeds up to 6Gbps

Support command-based and FIS-based of Port Multiplier

Complies with SATA Specification Revision 3.2

Supports AHCI mode and IDE programming interface

Supports Native Command Queue (NCQ)

Supports SATA Link Power saving mode (partial and slumber)

Supports SATA plug-in detection capable

Supports drive power control and staggered spin-up

Supports SATA Partial/Slumber power management state

Plug-and-Play Supported, no additional software installation or settings required

Chipset: JMB585

Drivers support for Linux, Win7/ Win8/Win8.1 /win10, 32 or 64bit

Package content

1 x PCIe x4 JMB585 SATA& M.2 Key B SATA6Gbps Expansion card

1 x M.2 Key B to SATA Extend card (Optional)

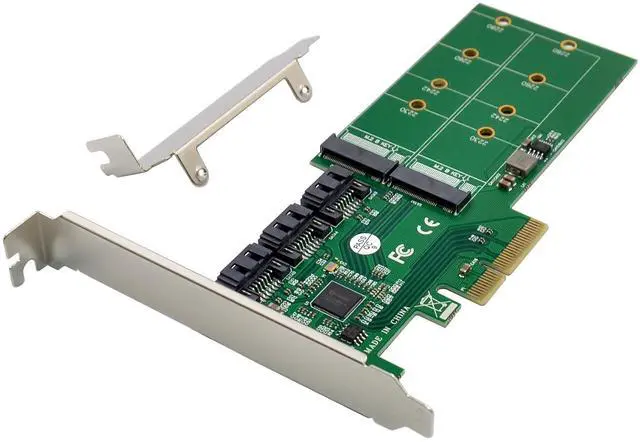

1x Low profile bracket

1 x Users Manual

3x SATA Cable

System Requirements

Linux base OS, Win7/ Win8/Win8.1 /win10, 32 or 64bit

0ne available PCI Express x4/x8/x16 slot

Hardware Description:

Hardware installation

1.Turn off the computer and unplug the power cord.

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter.

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis.

4.Connect the SATA device&M.2 Key B device to the JMB585 SATA card.

5.Replace the computer cover, then plug in the power cord.

6.Power on the computer.

Install Drivers and software

Windows Operating Systems

For Windows 7,8,8.1,10 System Operating.

No need other driver, Using Windows In-box drivers to install the JMB585 adapter.
