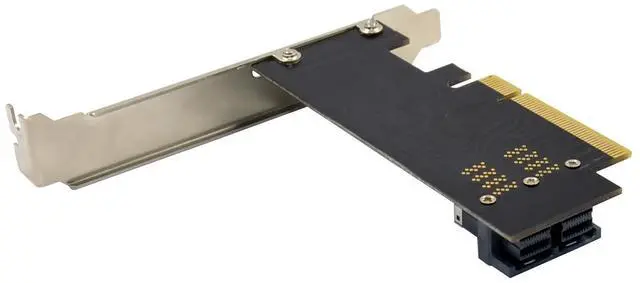

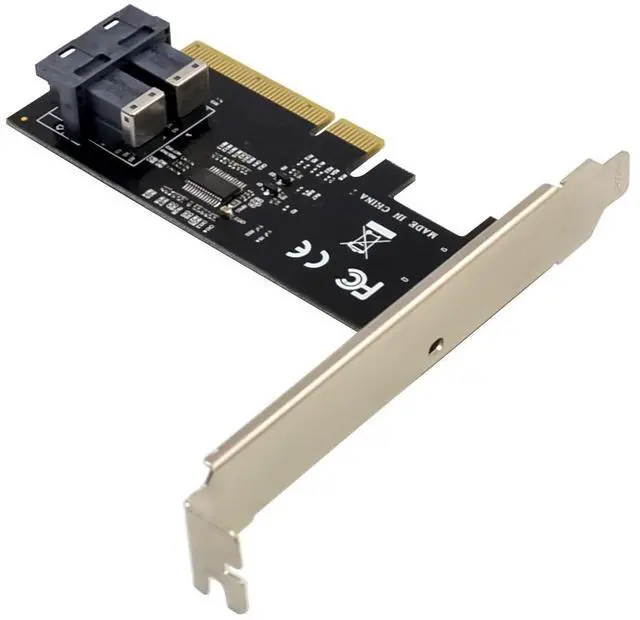

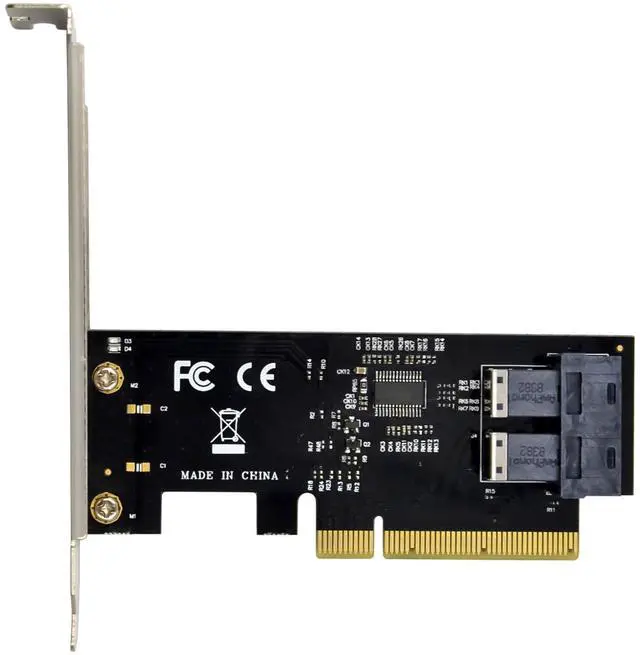

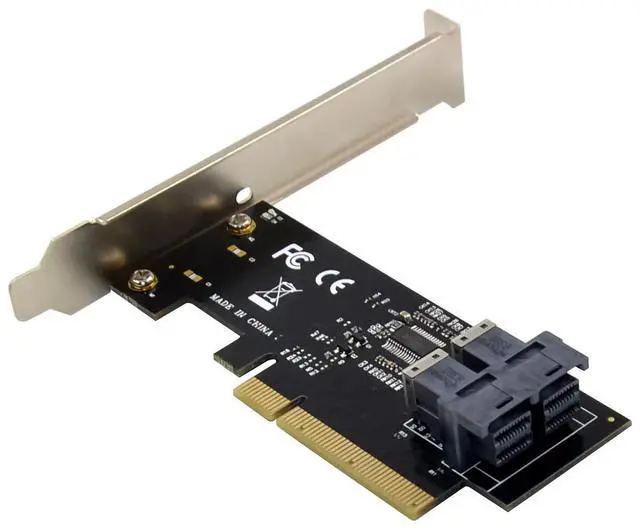

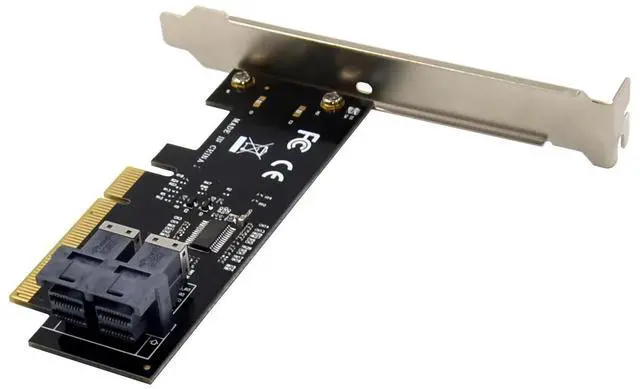

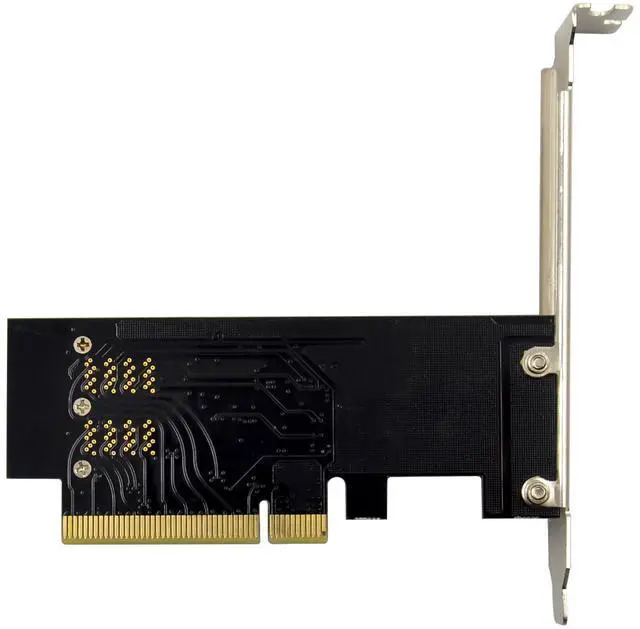

JVFYI PCIe x8 to 2-Port U.2 SFF8643 SSD Adapter

Compliant with PCI Express specification Revision v3.1

Support for two U.2 SSD Drive

Each port support transmission speeds up to 4GB/s

Support SSD Form Factor Verision1.0a

Compliant with NVM Express 1.2a

Compliant with SFF-8643 Specification version 3.5

It must need your motherboard support PCIe 3.0 bifurcation function

Industrial operating temperature range:-40~85°C

Support operating system: Windows11, Windows10, Windows 8, Windows8.1, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, Red hat native drivers support PCIe NVMe

No driver is required because the driver is transparent to the operating system, need to support NVMe protocol

Package content

1 x PCIe x8 to 2-Port U.2 SFF8643 SSD Adapter

1 x low profile bracket

1 x Users Manual

Accessories

System Requirements

Windows11, Windows10, Windows 8, Windows8.1, Windows Server 2012 R2, Linux 32bit or 64 bits

One available PCI-Express x16 slot

Hardware installation

Please first installed the U2 SFF8643 SSD into the adapter, then follow these steps:

1.Turn Off the power to your computer.

2. Unplug the power cord and remove your computers cover.

3. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.

4. Replace the slot brackets holding screw to secure the card.

5. Replace the computer cover and reconnect the power cord.

More information and settings please refer to the User Guides or you can contact us.

Motherboard BIOS Setting

Please refer to your motherboard instructions before setting up, or you can ask your motherboard vendor if the motherboard support PCIe x16 bifurcation function. Because the BIOS of most motherboards defaults to PCIe in X16 mode. so, we must set it at the boot time. And different motherboard setup is also different, please refer your motherboard user manual for details
