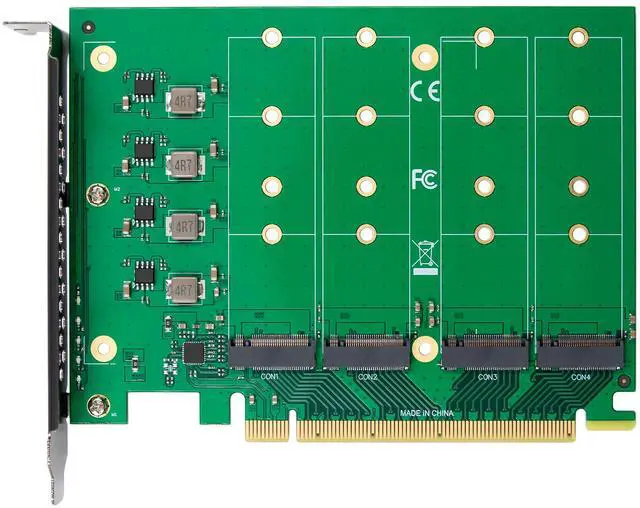

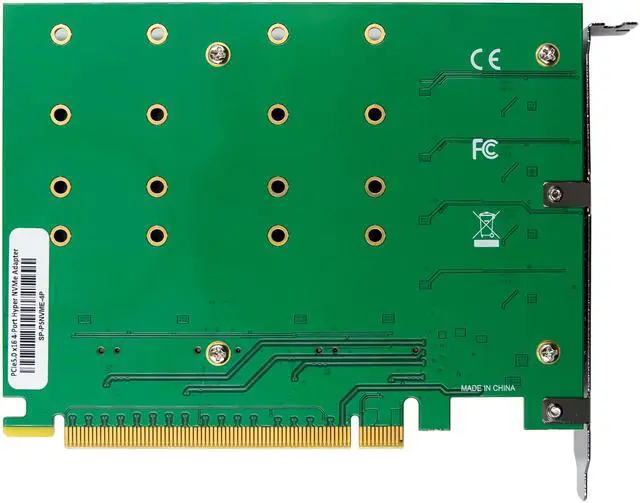

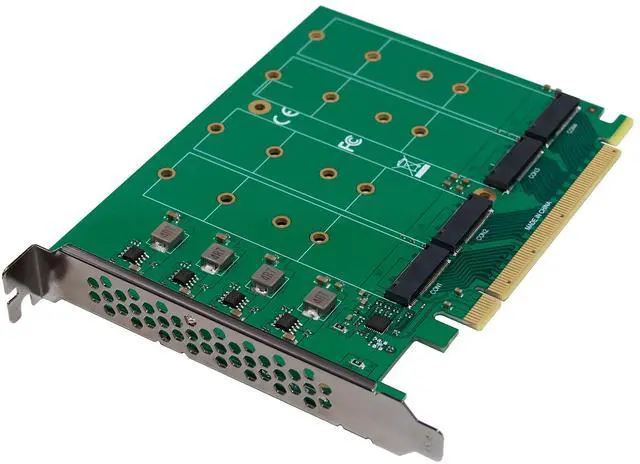

JVFYI PCIe5.0 x16 4-Port Hyper M.2 NVMe SSD Adapter

Specification

Compliant with PCI Express specification Revision v5.0 backward compatible with 4.0,3.0,2.0 1.1 Revisions

PCI Express interface x16 bandwidth with 512Gb/s

Support for four M.2 M Key or B+M key PCIe Protocol NVMe SSD Drive

Support M.2 size:2230, 2242, 2260, 2280mm

Each port support transmission speeds up to 128Gb/s

Onboard with LED indictor

The M.2 SSD gets its power supply form the motherboard PCIe BUS

It must need your motherboard support PCIe 5.0 bifurcation function

Industrial operating temperature range:-40~85°C

Support operating system: Windows11, Windows10, Windows 8, Windows8.1, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, Red hat native drivers support PCIe NVMe

No driver is required because the driver is transparent to the operating system, need to support NVMe protocol

Function table

Product name PCIe5.0 x16 4-port Hyper M.2 NVMe SSD Adapter

Product size 144*111*20mm

PCIe bus width X16

PCIe Revision GEN5, GEN4, GEN3, GEN2, GEN1

Support M.2 Numbers 4 ports

Support M.2 size 2280,2260,2242,2230

Support M.2 protocol PCIe Gen5x4, Gen5x2, Gen4x4, Gen4x2, Gen3x4, Gen3x2, Gen2x4, Gen2x2, Gen1x4, Gen1x2

Support M.2 TYPE M KEY or B+M KEY with PCIe protocol

Each port transmission Max 128Gb/s

LED indictor support

Bifurcation mode X4x4 (need motherboard support bifurcation function

Operation temperature -10 to 55 (14 to 131 )

Storage temperature -40 to 85 (-40 to 185 )

Relative Humidity 0~90% NON condensation

Support Operation Systems Windows client: in8.Win8.1 Win10, win11 32 or 64bit

Windows server: Server2012,Server2016,server2019,server2022 and above

Linux:Linux kernel 3.1.0 and above ,RHEL/Centos/deepin/ubuntu/SUSE/Open euler/Debia/kylin os and etc.

Profile height Full height

Power consumption Determined by the power consumption and quantity of SSDs

Package content

1 x PCIe5.0 x16 4-port Hyper M.2 NVMe SSD Adapter

1 x Users Manual

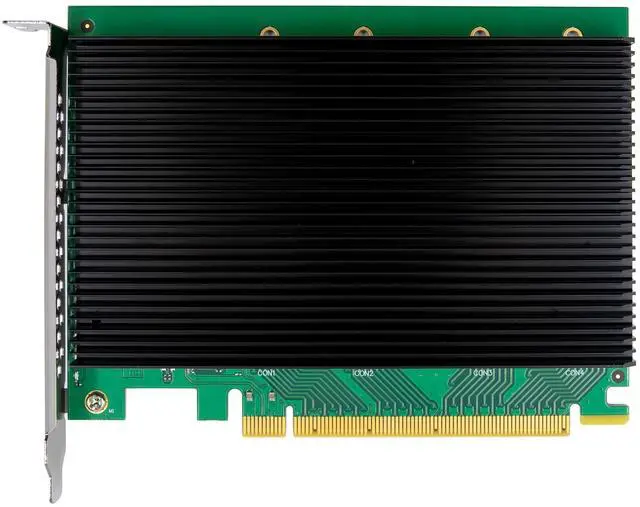

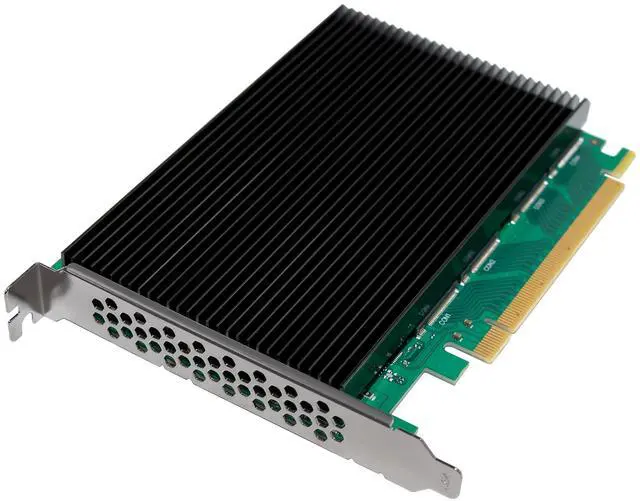

1 x heatsink

4 x Thermal pad

4 x screws

1 x screw driver

System Requirements

Windows11, Windows10, Windows 8, Windows8.1, Windows Server 2012 R2, Linux 32bit or 64bit

One available PCI-Express x16 slot with bifurcation function

Hardware installation

Please first installed the M.2 SSD into the adapter, then follow these steps:

1.Turn Off the power to your computer.

2. Unplug the power cord and remove your computers cover.

3. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.

4. Replace the slot brackets holding screw to secure the card.

5. Replace the computer cover and reconnect the power cord.

More information and settings please refer to the User Guides or you can contact us.

Motherboard BIOS Setting

Please refer to your motherboard instructions before setting up, or you can ask your motherboard vendor if the motherboard support PCIe x16 bifurcation function. Because the BIOS of most motherboards defaults to PCIe in X16 mode. so we must set it at the boot time. And different motherboard setup are also different, please refer your motherboard user manual for details
