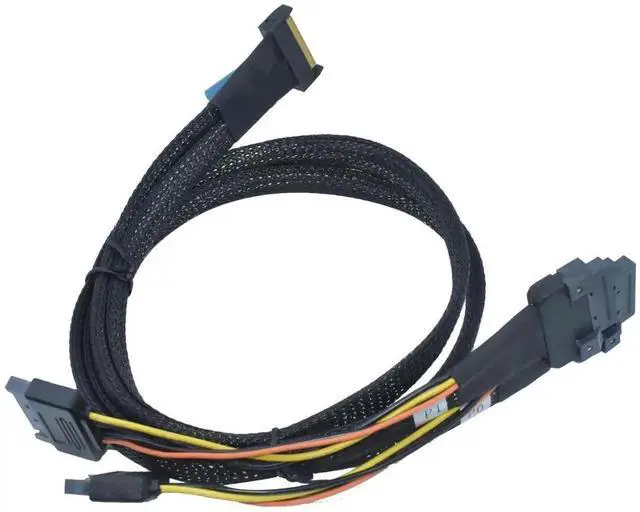

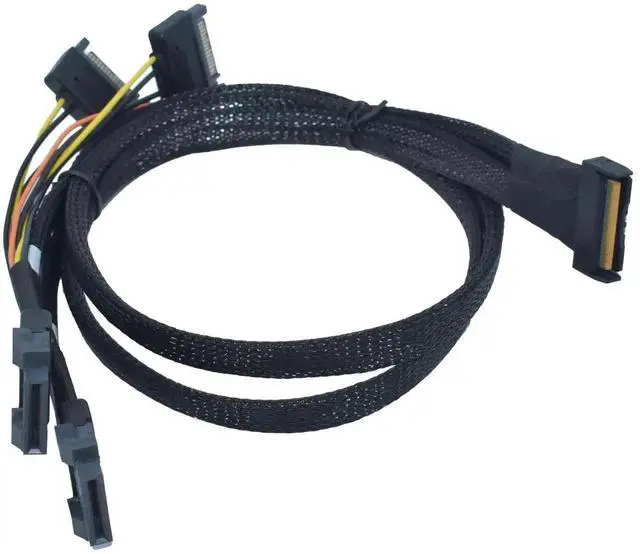

PCIe 5.0 MCIO x8 Breakout Cable 2.1ft/65cm, SFF-TA-1016 74Pin MCIO x8 to Dual EDSFF E1/E3 1C with 15Pin SATA Power, Compatible with E1.S E1.L E3.S E3.L Enterprise NVMe SSD for Data Center Server Stora

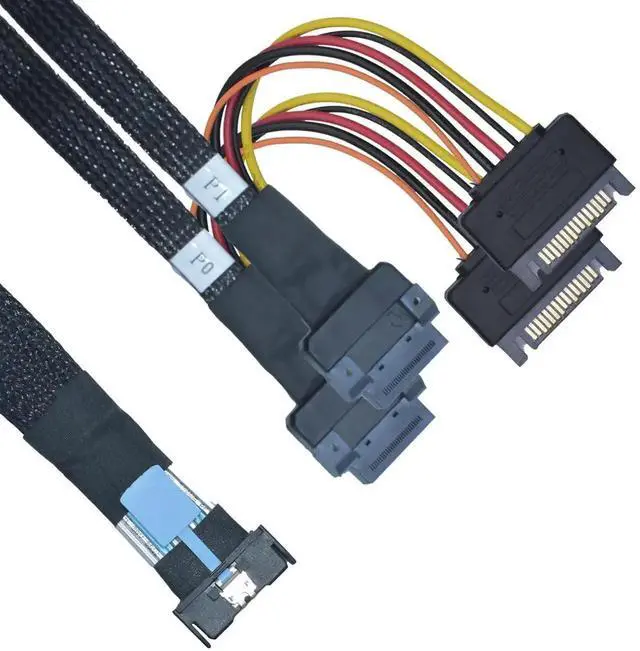

- PCIe 5.0 MCIO x8 breakout design, splits 8 lanes into two independent x4 channels for dual EDSFF SSDs
- Full EDSFF compatibility: supports E1.S, E1.L, E3.S, E3.L next-gen enterprise NVMe solid-state drives
- Integrated separate 15Pin SATA power branch, delivers stable 12V power to high-power EDSFF SSDs
- Strictly 85 impedance-controlled twinax wire + full braided EMI shielding, zero signal attenuation at 32GT/s per lane
- Standard 65cm (2.1ft) length, neat internal routing for dense rack servers, compliant with SFF-TA-1016 & SFF-TA-1035 specs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This industrial-grade PCIe 5.0 MCIO x8 to dual EDSFF breakout cable follows official SFF-TA-1016 MCIO and SFF-TA-1035 EDSFF standards, designed to connect motherboard 74Pin MCIO x8 ports to two separate EDSFF 1C storage slots for high-density data center servers, AI computing and HPC storage arrays.
Single 74Pin MCIO x8 input splits evenly into two independent PCIe 5.0 x4 signal groups, each channel reaches 32GT/s single-lane speed with total 128GBps per SSD, fully backward compatible with PCIe 4.0/3.0 transmission protocols. It universally matches all mainstream EDSFF form factor NVMe SSDs: E1.S, E1.L, E3.S and E3.L.

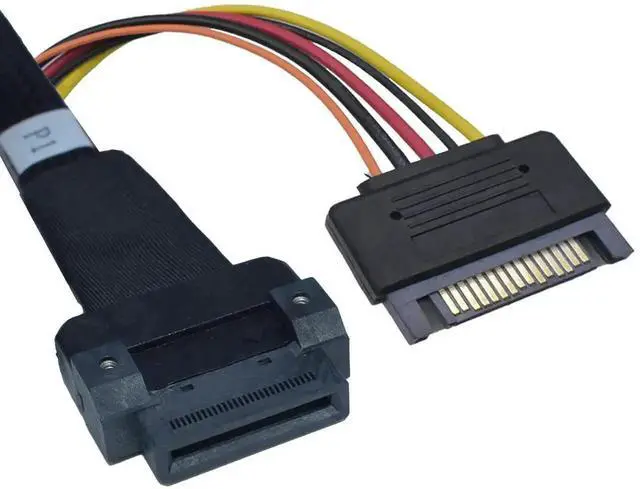

Built-in independent 15Pin SATA power cable eliminates extra power adapters, continuously supplying sufficient voltage for multi-chip enterprise SSDs under sustained heavy read/write loads, avoiding power shortage throttling during long-hour database and rendering tasks.

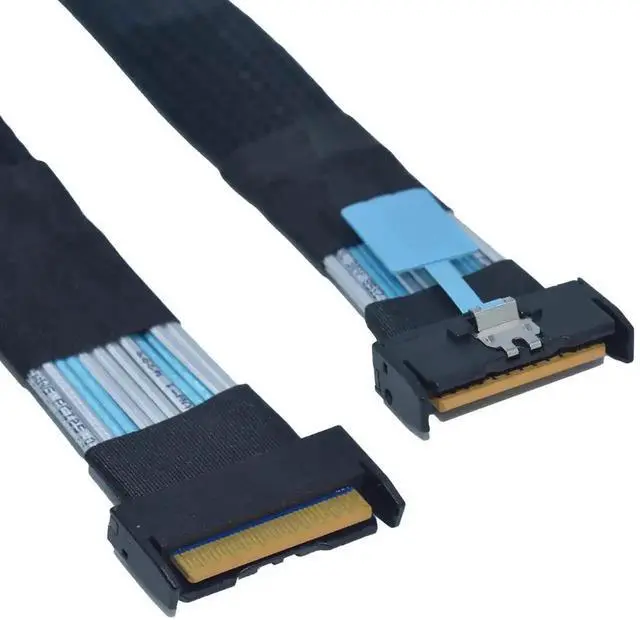

The whole cable assembly adopts silver-plated oxygen-free copper differential twinax conductors, paired with double-layer conductive foil and woven shielding structure to suppress electromagnetic crosstalk. Gold-plated connector pins guarantee stable signal integrity even under full PCIe 5.0 bandwidth stress tests, no intermittent I/O errors or dropouts.
65-centimeter flexible black braided sleeve fits compact high-density server chassis, easy for tidy cable management without blocking cooling airflow. It supports Windows Server, all Linux distributions and VMware ESXi, works seamlessly with VROC and NVMe RAID storage architectures.
Important Note: Motherboard MCIO port needs PCIe lane bifurcation (x4x4 split mode) enabled in BIOS to recognize both EDSFF SSDs simultaneously. This cable only supports EDSFF E1/E3 series NVMe drives and is not compatible with U.2, M.2 or legacy SATA HDDs.
