AJMRTC 6Gbps M.2 NGFF B Key & mSATA SSD to 2.5 Inch SATA3 Adapter with Plastic Enclosure, Criss-Cross Version, Supports Full Size mSATA & M.2 SATA SSD

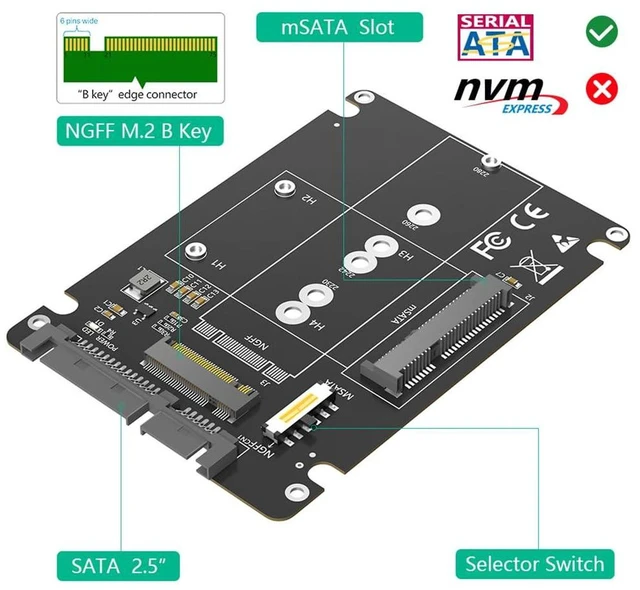

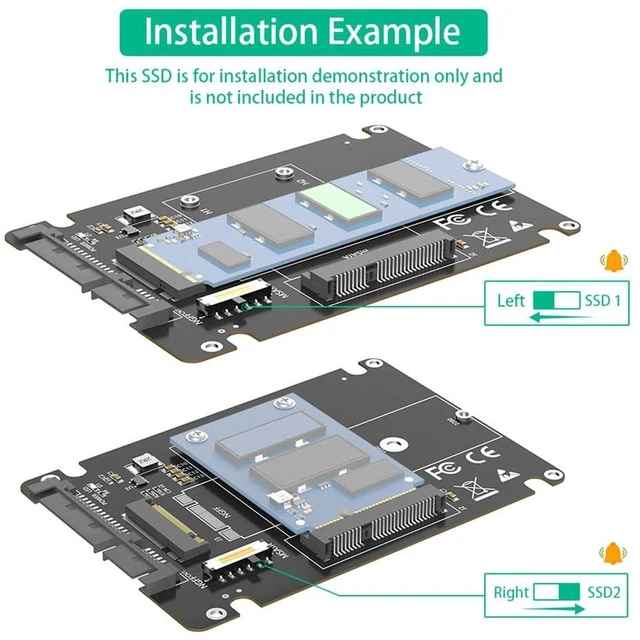

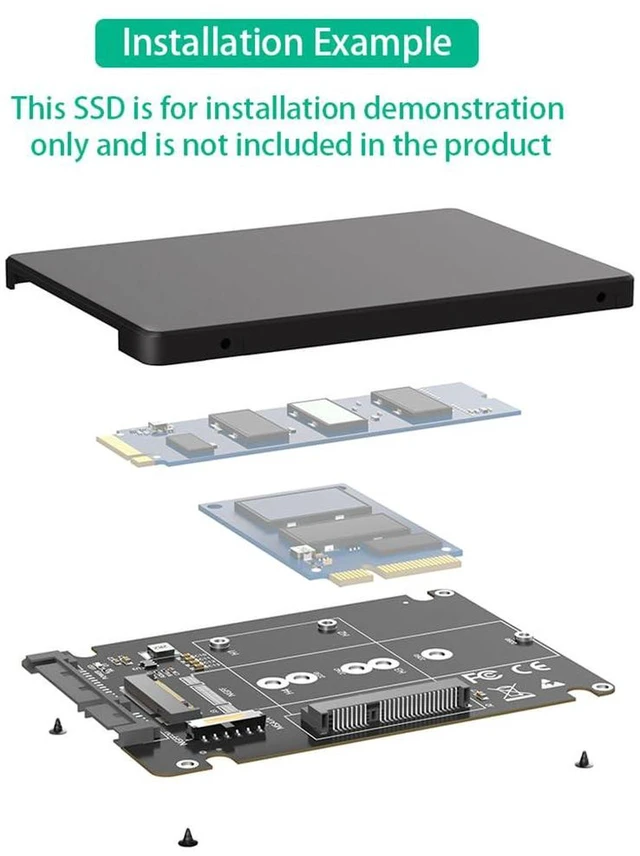

AJMRTC dual-function adapter converts M.2 NGFF B Key SATA SSD or full-size mSATA SSD into a standard 2.5-inch SATA 3.0 drive. Adopting the special criss-cross version PCB layout, it can be installed normally inside common 2.5-inch hard drive bays. It runs at SATA III 6Gbps maximum speed, fully compatible with SATA 1.5Gbps and 3Gbps modes. It is only for SATA protocol SSDs and NOT compatible with NVMe M.2 SSD. Equipped with a matched plastic protective shell, it prevents scratches, dust and accidental collision for your SSD. Installation is simple, mount your mSATA or M.2 B Key SATA SSD on the board, secure it with included screws and close the housing, then connect to standard 7+15pin SATA port. No extra driver or power supply required, supports hot swap. Great for reusing old mSATA and M.2 SATA SSDs on legacy computers, industrial hosts, NAS and SATA storage enclosures.

Specifications:

1. Brand: AJMRTC
2. Interface Output: Standard 2.5" SATA3 (7+15Pin)

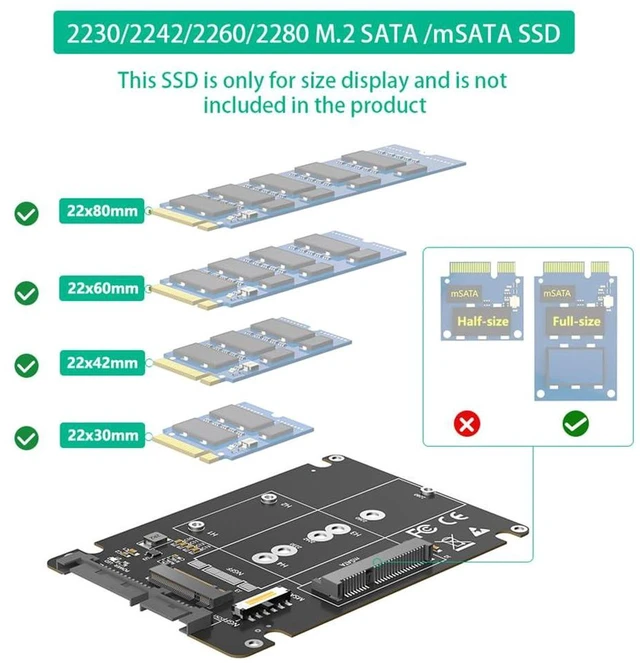

3. Supported SSD: M.2 NGFF B Key SATA SSD, Full Size mSATA SSD
4. Max Speed: 6Gbps SATA III
5. PCB Version: Criss-Cross Layout

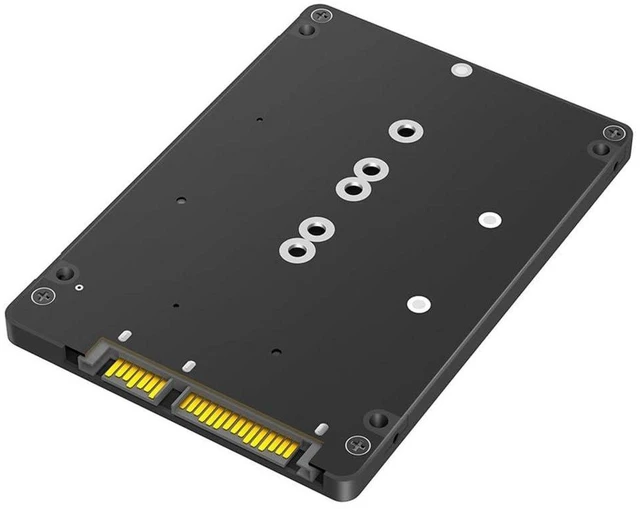

6. Housing: Protective Plastic Enclosure
7. Notice: Not support NVMe M.2 SSD
8. Operation: Plug and Play, Driver-Free, Hot-swap
9. System Compatibility: Windows, macOS, Linux

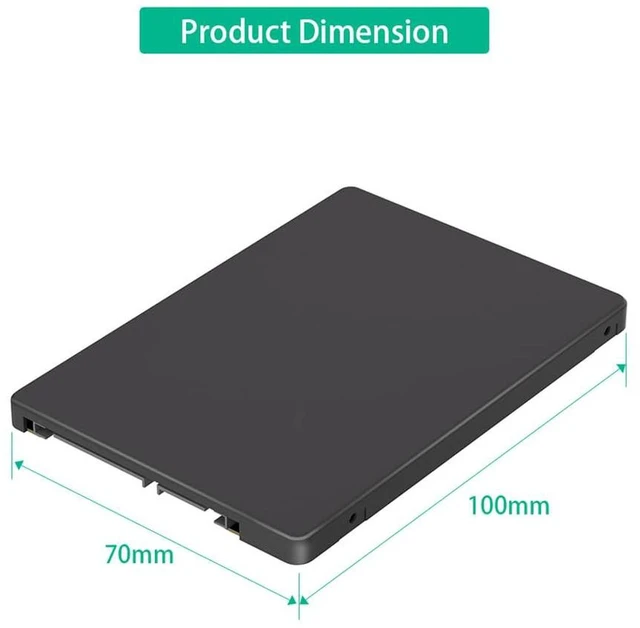

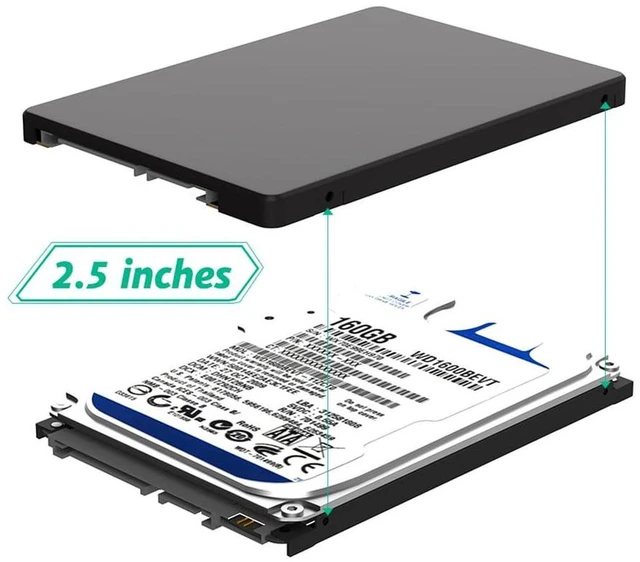

10. Mounting: Fits standard 2.5-inch SATA drive bay
11. Application: Old PC upgrade, NAS storage, SSD reuse, industrial equipment storage
