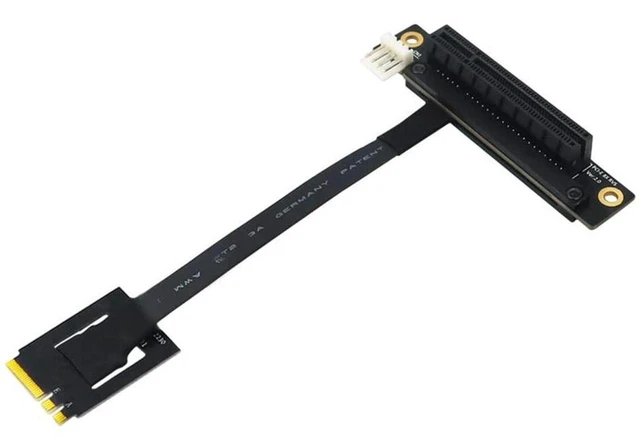

AJMRTC M.2 NGFF Dual Key A-E to PCIe X8 Riser Adapter Cable, 270 Degree Reverse Angle 20CM High Speed FPC Extension Cord with 4Pin FDD 12V Power Connector, Supports M.2 2230 Socket for Mini PC, Embedd

AJMRTC A+E Key 2230 to PCIe X8 riser converts the motherboard M.2 wireless slot into a full-size PCIe X8 expansion port. The flat FPC cable supports neat installation in compact thin-client and embedded systems. The FDD power header is optional; low-power peripherals can run without connecting this power line. It is widely used for PCIe test cards, network adapters, capture cards and industrial peripheral expansion. Note that the A+E slot only provides one PCIe lane, so all connected PCIe devices run at X1 speed regardless of the physical card size.

Specifications

1. Brand: AJMRTC

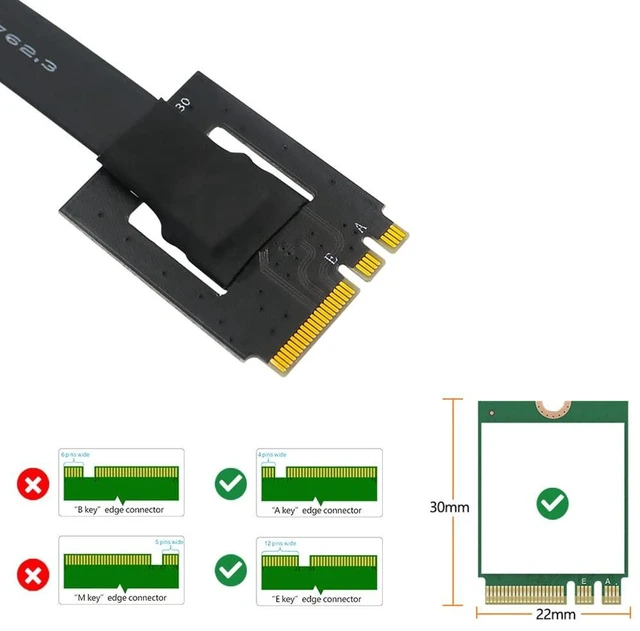

2. Host Interface: M.2 NGFF Dual Key A-E, 2230 form factor

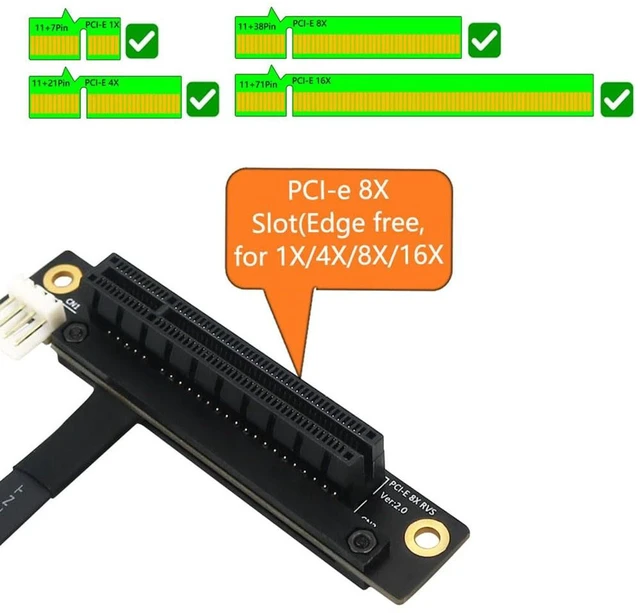

3. Output Slot: PCIe X8 female slot, compatible X1/X4/X8/X16 PCIe cards

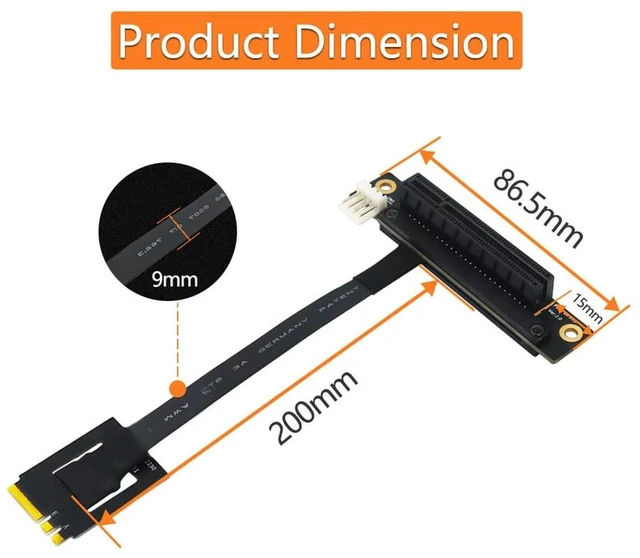

4. Cable Length: 20CM
5. Cable Type: High-speed FPC flat ribbon cable

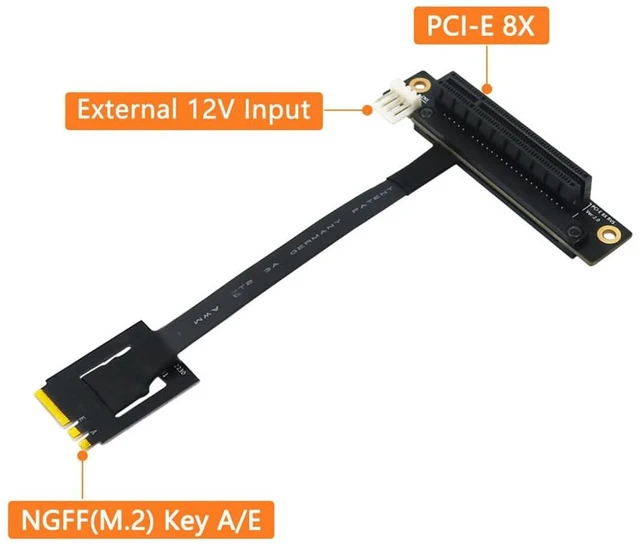

6. Auxiliary Power: 4Pin FDD 12V power connector
7. PCIe Version: PCIe 3.0
8. Bandwidth Limit: PCIe X1 lane
9. Supported OS: Windows, Linux
10. Application: Mini PC, thin client, embedded host, industrial PC, PCIe hardware testing
11. Note: Bandwidth capped at PCIe X1; only for A+E 2230 socket, not M-Key or B-Key SSD slots
