HOOCCC USB-C to M.2 NVMe Adapter Board, JMS583 Chipset, 10Gbps Type-C 3.1/3.2 Gen 2, 42x25mm Mini PCB for M-Key 2230 SSD (No Cable/SSD)

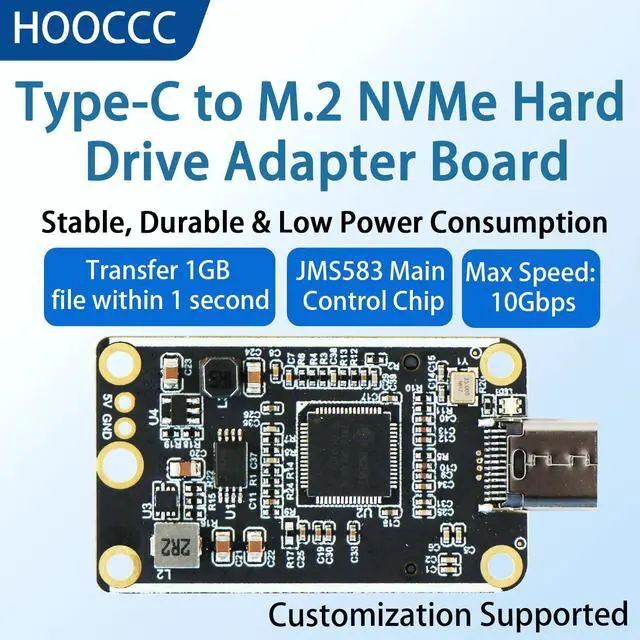

HOOCCC USB-C to M.2 NVMe Adapter Board (JMS583, 10Gbps)

Turn a tiny M.2 NVMe 2230 SSD into a high-speed USB-C external drive with this compact JMS583-based bridge board. Built for DIY users, repair techs, and engineers who need a bare PCB for custom enclosures or test fixtures.

[ Key Features ]

JMS583 Controller: USB 3.1 Gen 2 (10Gbps) to PCIe Gen3 x2 NVMe bridge with UASP & TRIM support.

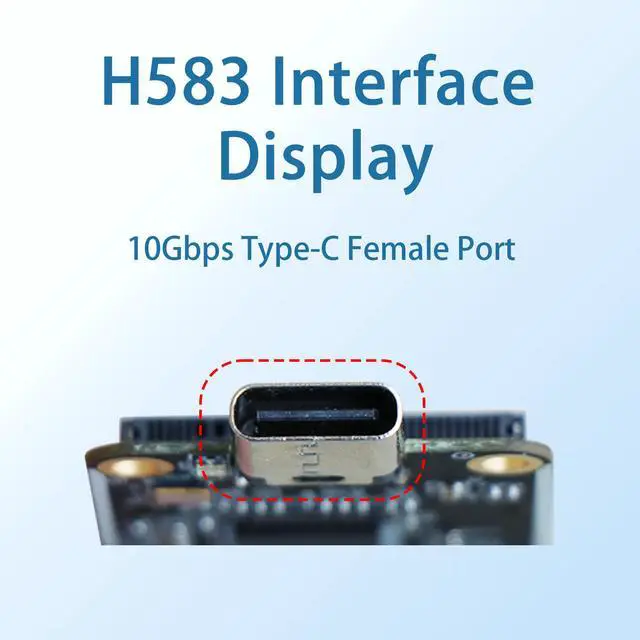

Type-C Interface: Standard USB-C female output; requires a separate USB-C to C or C to A cable (5Gbps/10Gbps).

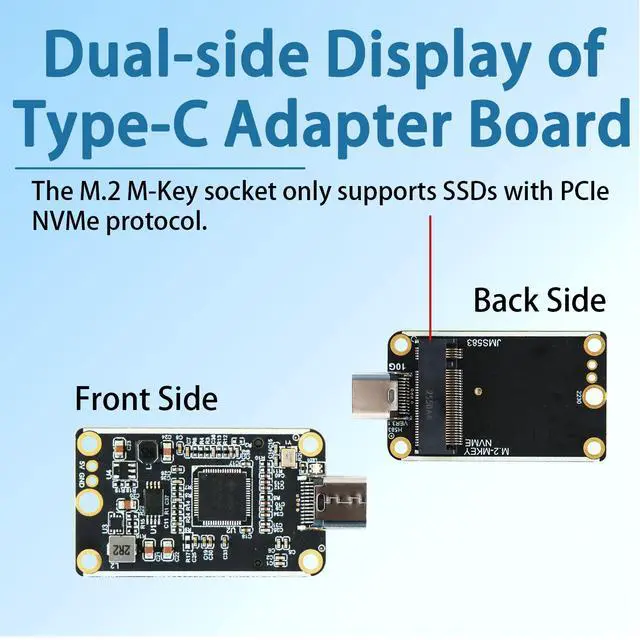

2230 M-Key Only: Supports NVMe PCIe M-Key 2230 SSDs (e.g., Surface/Steam Deck class drives). Does NOT support SATA NGFF or 2242/2260/2280.

Mini PCB: 42 x 25 mm footprint, 4-layer design, gold-flash contacts, low heat under load.

Cross-Platform: Plug & play on Windows 10/11, macOS, and Linux. No driver installation needed.

[ Specifications ]

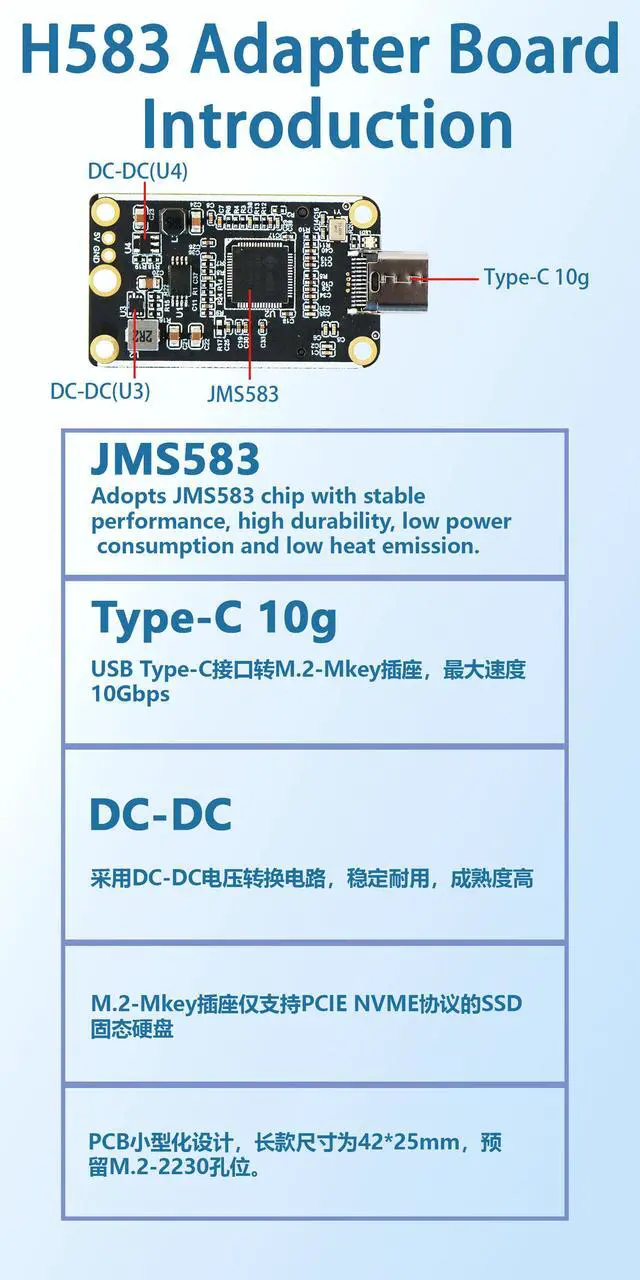

Chipset: JMicron JMS583

Upstream: USB-C (USB 3.1 Gen 2, 10Gbps)

Downstream: M.2 M-Key 2230 NVMe PCIe x2

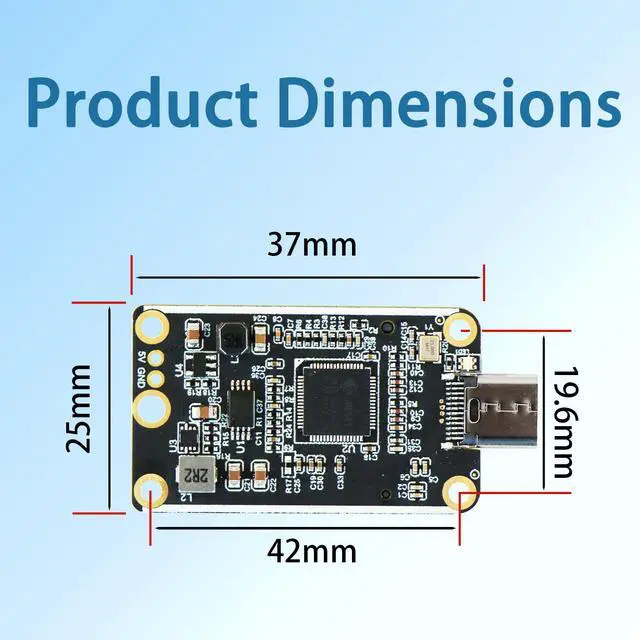

Board Size: 42 x 25 mm

UASP / TRIM: Supported

Power: Via USB bus (5V/3.3V regulated on board)

[ Important Notes ]

ADAPTER BOARD ONLY: USB cable, SSD, thermal pad, screws, and enclosure are NOT included.

For NVMe M-Key 2230 ONLY; not compatible with SATA M.2 or larger lengths (2242/2280).

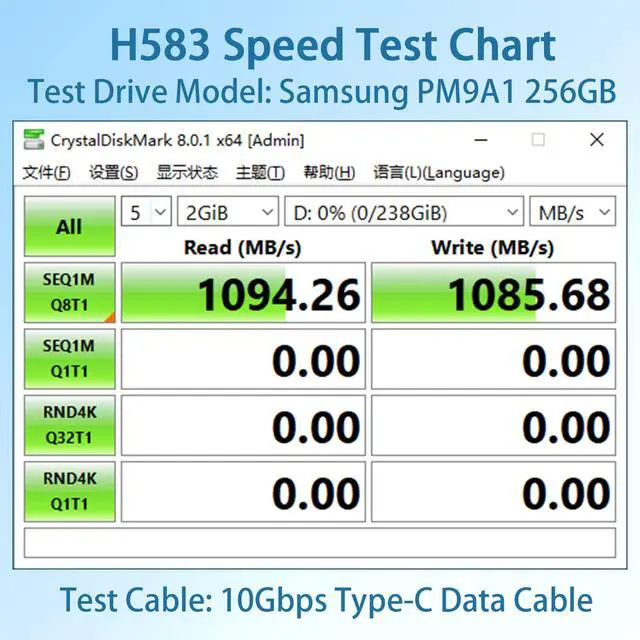

Actual speed depends on host port, cable quality, and SSD model (~9001000MB/s typical on 10Gbps port).

[ Package Includes ]

1 x USB-C to M.2 NVMe 2230 Adapter Board (JMS583)
