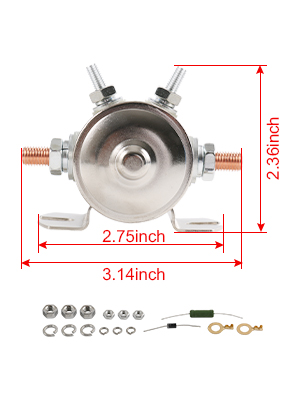

Dimensions

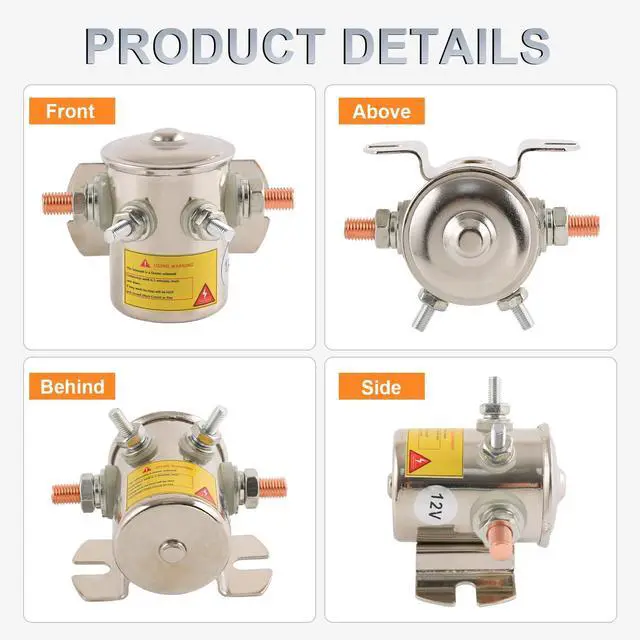

12V 4 Terminal Max 300A Solenoid W/ Resistor&diode

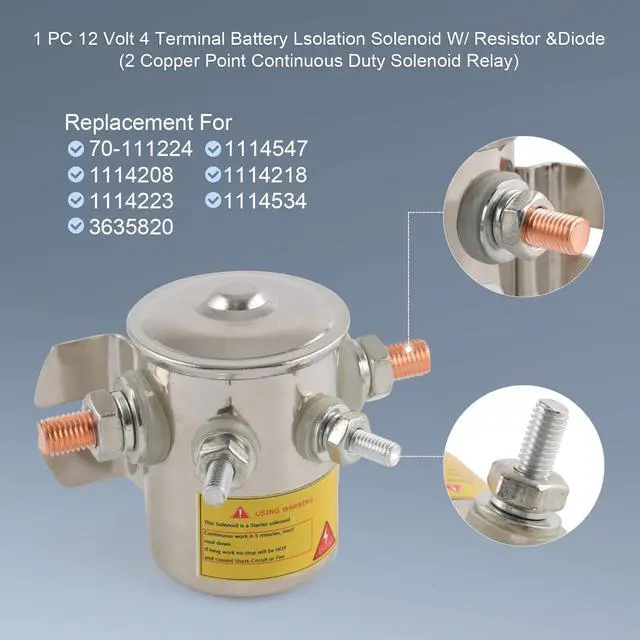

Replaces Parts Number:
- 70-111224
- 3635820
- 1114208
- 1114218
- 1114223
- 1114534
- 1114547

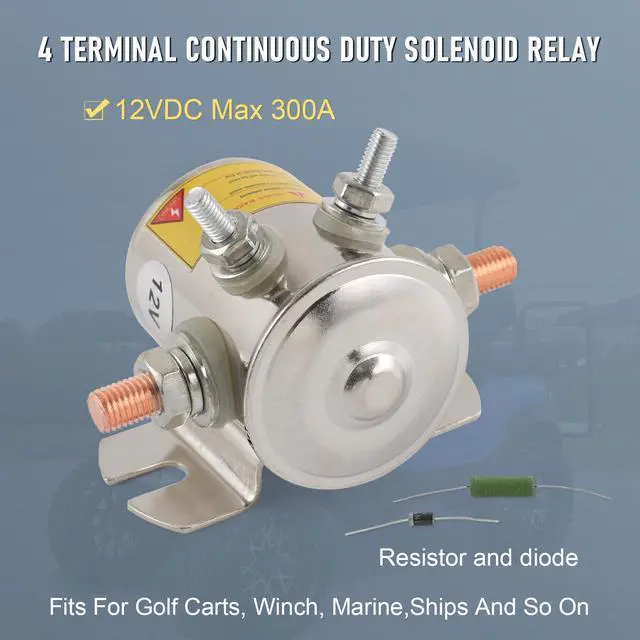

12VDC Max 300A 4 Terminal Continuous Duty Solenoid Relay
4-pole battery isolation solenoid valve

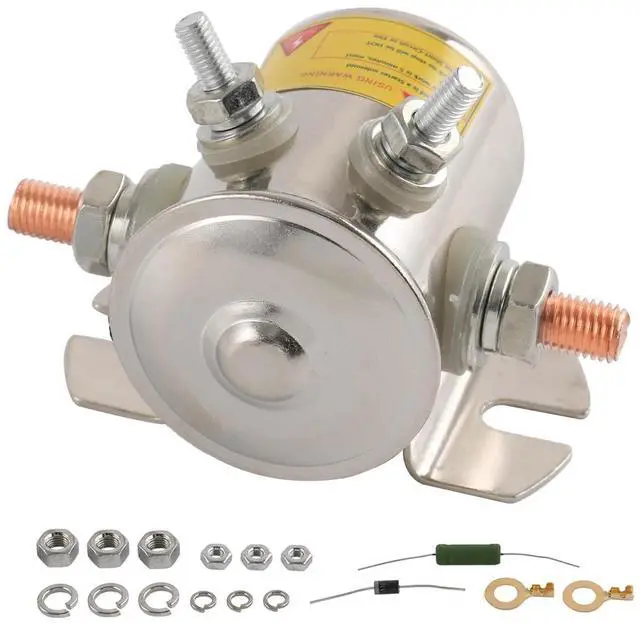

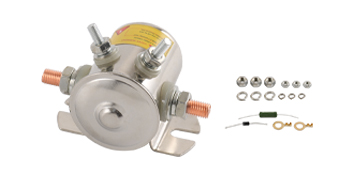

PACKAGE CONTAINS
- Resistor
- diode
- 12V Solenoid

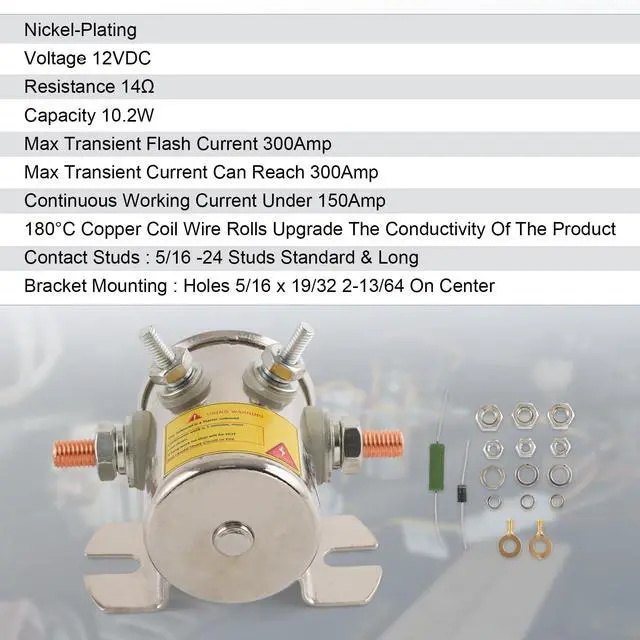

- Voltage 12VDC
- Resistance 14O
- Capacity 10.2W
- Max Transient Flash Current 300Amp
- Max Transient Current can reach 300Amp
- Continuous Working Current Under 150Amp
- Contact Studs : 5/16 -24 Studs Standard & Long
- Bracket mounting : Holes 5/16 x 19/32 2-13/64 on Center
12VDC Max 300A Continuous Solenoid Relay
- Cooper Terminal Contactor Improve Electricity
- Reduce The Power Loss,Reach Transient Current 300A
3-pole battery isolation solenoid valve
- Good saver to your battery( Max Flash Current 300A)
- Max Transient current can be 300A, but Continuous Working Current recommend under 150 Amp
Water-Resistant & Dustproof
- Nickel-Plating Outer and Potted Coil Interiors protect solenoid against any harsh environment;
- Firmly Enclosed for overall protection from dust, dirt, sand and any other substance that could cause damage to Solenoid.
180? copper coil
- 180? copper Ignition coil wire rolls upgrade the conductivity of the product.
- Forevery copper wire is evenly wound and Maximize reduce outer
Specifications
 12V 4 Terminal Max 300A Solenoid |  12V 3 Terminal Max 200A Solenoid |  24V 4 Terminal Max 200A Solenoid |  36 V 4 Terminal Max 200A Solenoid |  12V 4 Terminal Max 300A Solenoid W/ Resistor&diode |  12V 6 Terminal MAX 100A Solenoid | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| voltage | 12 Volt | 12 Volt | 24 Volt | 36 Volt | 12 Volt | 12 Volt |
| Number of Terminal | 4 Terminal | 3 Terminal | 4 Terminal | 4 Terminal | 4 Terminal | 6 Terminal |
| Max Intermittent Current | 300 Amp | 200 Amp | 200 Amp | 200 Amp | 300 Amp | 100 Amp |
| Material | Nickel Plating | Zinc Plating | Nickel Plating | Zinc Plating | Nickel Plating | Nickel Plating |
About Us
Professional Auto Parts Manufacturer have been committed to producing high-quality auto and motorcycle accessories for many years.
- LDMINDA produces high quality products with cost-effective offers and long service life and excellent performance.
- Specializing in the production of various auto accessories such as Water Pump, Fuel Pump,Fuel Filter,Power Steering Pump,Solenoid, Relay,Air Intake Pipe,Proportioning Valve,Tonneau Covers etc
hot-selling
hot-selling
hot-selling
How do we ensure after-sales service?
All LDMINDA product offer a one-year free replacement service. From the day of purchase, if you encounter any quality issues, feel free to reach out to us. Our professional team is dedicated to providing premium service.
Why do we love our do?
Every time we assist a customer in problem-solving, we derive immense fulfillment. Behind each order lies a vibrant partner, we greatly value the opportunity to connect with our clientele online. Our dedication revolves around delivering value to our customers.
12VDC Max 300A 4 Terminal Continuous Duty Solenoid Relay
12V 4 Terminal Max 300A Solenoid W/ Resistor&diode
Replaces Parts Number:
- 70-111224
- 3635820
- 1114208
- 1114218
- 1114223
- 1114534
- 1114547
Dimensions
4-pole battery isolation solenoid valve
PACKAGE CONTAINS
- Resistor
- diode
- 12V Solenoid
- Voltage 12VDC
- Resistance 14O
- Capacity 10.2W
- Max Transient Flash Current 300Amp
- Max Transient Current can reach 300Amp
- Continuous Working Current Under 150Amp
- Contact Studs : 5/16 -24 Studs Standard & Long
- Bracket mounting : Holes 5/16 x 19/32 2-13/64 on Center
12VDC Max 300A Continuous Solenoid Relay
- Cooper Terminal Contactor Improve Electricity
- Reduce The Power Loss,Reach Transient Current 300A
3-pole battery isolation solenoid valve
- Good saver to your battery( Max Flash Current 300A)
- Max Transient current can be 300A, but Continuous Working Current recommend under 150 Amp
Water-Resistant & Dustproof
- Nickel-Plating Outer and Potted Coil Interiors protect solenoid against any harsh environment;
- Firmly Enclosed for overall protection from dust, dirt, sand and any other substance that could cause damage to Solenoid.
180? copper coil
- 180? copper Ignition coil wire rolls upgrade the conductivity of the product.
- Forevery copper wire is evenly wound and Maximize reduce outer
Specifications
| Voltage | 12VDC |
| Resistance | 14O |
| Capacity | 10.2W |
| Max Transient Flash Current | 300 Amp |
| Continuous Working current: | Under 150 Amp |
| Contact Studs | 5/16 -24 Studs Standard & Long |
| Bracket mounting | Holes 5/16 x 19/32 2-13/64 on Center |
| Terminal | 3-pole/ 3 Terminal |
| Replaces Parts Number: | 70-111224 3635820 1114208 1114218 1114223 1114534 1114547 |
| Package | 1 PC solenoid/relay with resistor and diode(as photo shows) |
12V 4 Terminal Max 300A Solenoid | 12V 3 Terminal Max 200A Solenoid | 24V 4 Terminal Max 200A Solenoid | 36 V 4 Terminal Max 200A Solenoid | 12V 4 Terminal Max 300A Solenoid W/ Resistor&diode | 12V 6 Terminal MAX 100A Solenoid | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| voltage | 12 Volt | 12 Volt | 24 Volt | 36 Volt | 12 Volt | 12 Volt |
| Number of Terminal | 4 Terminal | 3 Terminal | 4 Terminal | 4 Terminal | 4 Terminal | 6 Terminal |
| Max Intermittent Current | 300 Amp | 200 Amp | 200 Amp | 200 Amp | 300 Amp | 100 Amp |
| Material | Nickel Plating | Zinc Plating | Nickel Plating | Zinc Plating | Nickel Plating | Nickel Plating |
