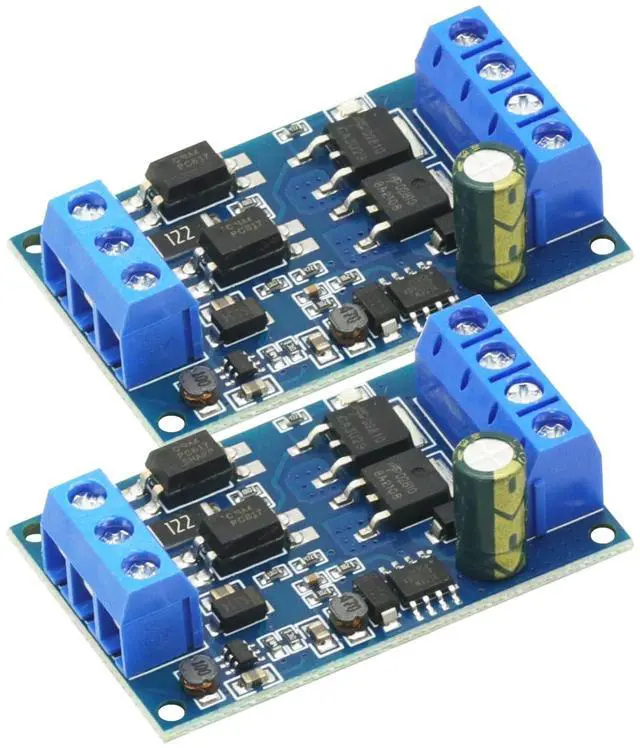

2 Pcs High-Power 600W MOS Tube FET Trigger Switch Drive Module PWM Control DC 4V-60V
Product Feature:
1. Using high-quality materials, durable
2. This module supports high-level triggering, low-level triggering, switch control, PWM control 3. Dual MOS parallel active output, lower internal resistance, higher current, and strong power
4. 10A, 600W at room temperature, which meets the use of most equipment
5. Support ultra-wide voltage: DC 4V~60V
6. Easily realize the control of high-power equipment
7. Wide range of applications
Parameter:
Working voltage: DC 4V--60V
Trigger signal source: high-level trigger (DC3.0V--24V), low-level trigger (DC 0.0V~0.6V), switch control, can be connected to MCU IO port, PLC interface, DC power supply, etc., can be connected to PWM Signal, signal frequency 0--2.5KHZ support
Output capacity: DC 4V--60V, continuous current 10A at room temperature, power 600W! Under the condition of auxiliary heat dissipation, the current can reach 15A
Application: The output terminal can control high-power equipment, motors, light bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc., can input PWM, control motor speed, lamp brightness, etc.
Service life: Unlimited switching
Working temperature: -40-85?
Size: 4.6*2.9*1.5cm
Applications:
1. Can be used in solar landscape lights, solar warning lights, solar street lights, solar strobe lights, solar street signs, solar guide signs, solar monitoring systems, etc.;
2. Use an adapter to replace the battery, and it can also be used in places that are not powered by solar energy.
The output voltage of the circuit board is approximately equal to the battery voltage. The circuit board does not have a lamp drive function. If the LED is directly connected to the output terminal, the LED lamp beads and the control board will be damaged.
Precautions:

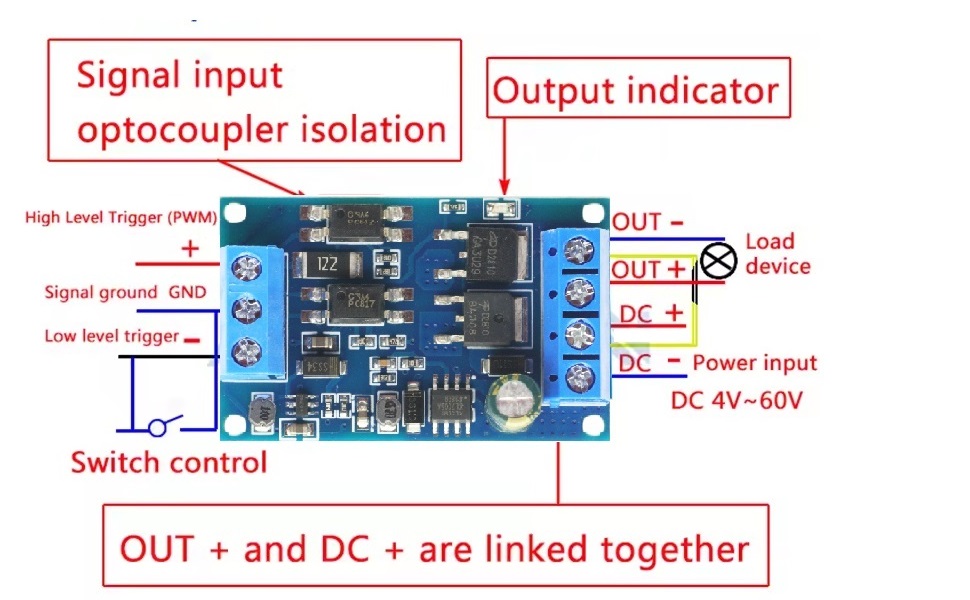

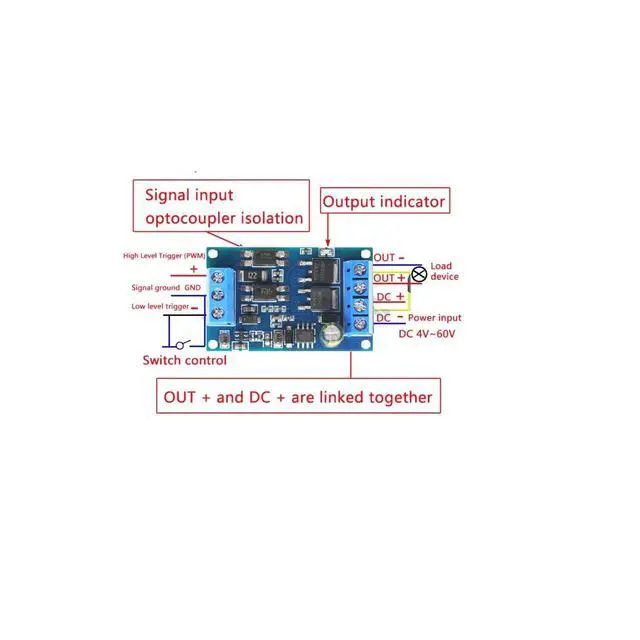

1. At the same time, only one signal can be used to control the module, and two or more signals cannot be used to control the module at the same time.
2. High-level trigger voltage range: DC3.0V~24V, that is, when the signal is 3.0V~24V, the MOS tube is turned on, if it is lower than 0.6V, that is, 0V~0.6V, the MOS tube is turned off, and the signal voltage must not be within 0.6V Between ~3.0V, then the MOS is not fully turned on, and the MOS is burned out when used with high power.
3. Low-level trigger voltage range: DC 0V~0.6V, that is, when the signal voltage is 0V~0.6V, the MOS tube is turned on, if it is higher than 3.0V, the MOS tube is turned off, and the signal voltage must not be between 0.6V~3.0V , so that the MOS is not fully open, and the high-power use burns the MOS
