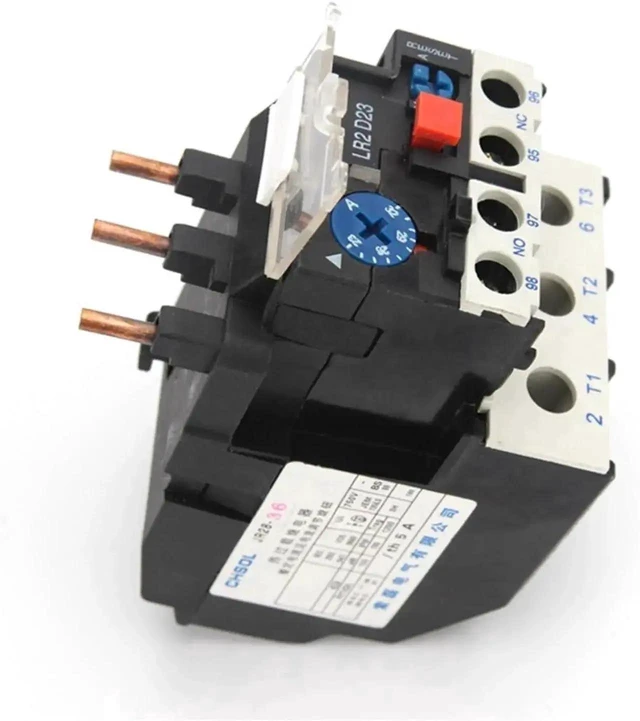

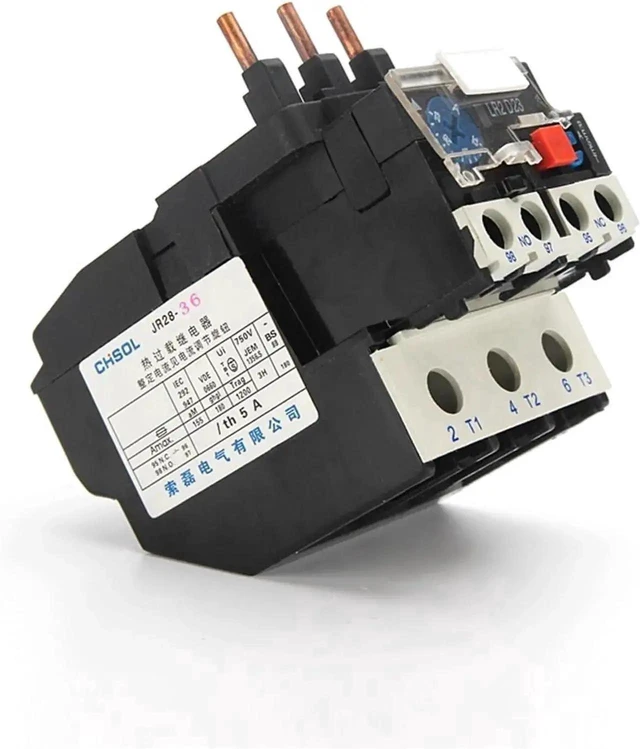

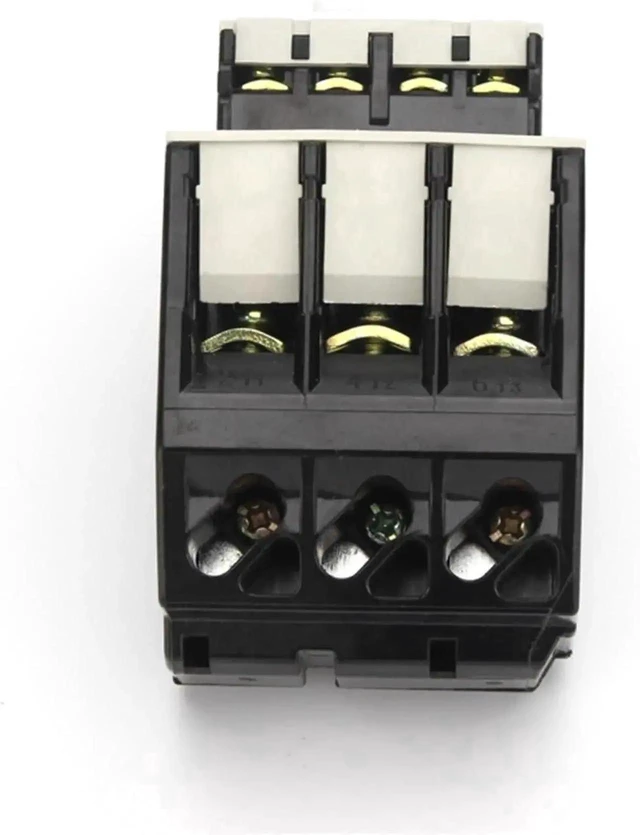

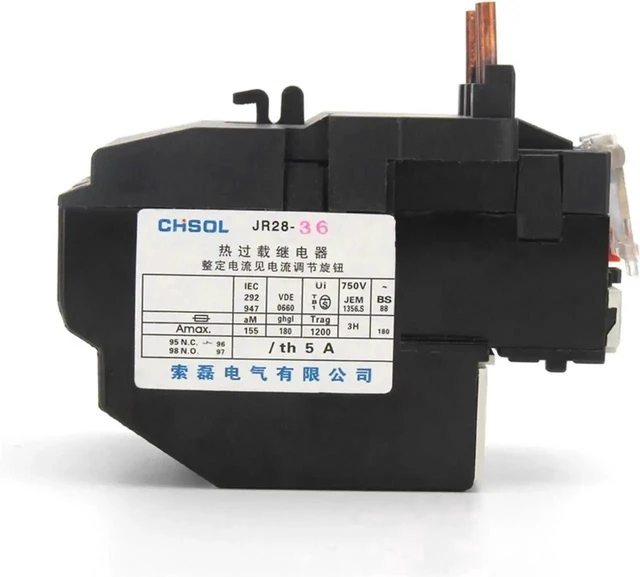

    JR28-36 Adjustable Thermal Overload Relay Three-Phase Motor Overload Protection Relay Current Ranges 17-25A/23-32A/28-36A 50/60Hz LR2 D23 Interchangeable AC Contactor Mounting

    Be the first to review this product...
    • JR28-36 thermal overload relay supports three-phase motor circuit safety by responding to abnormal overcurrent conditions.
    • Automatic power cut-off activates during abnormal overcurrent to help prevent motor burnout in industrial operation.
    • Choose from three adjustable current ranges: 17-25A, 23-32A, or 28-36A, based on the motor circuit requirements.
    • The 50/60Hz universal design supports electrical systems operating at either listed frequency.

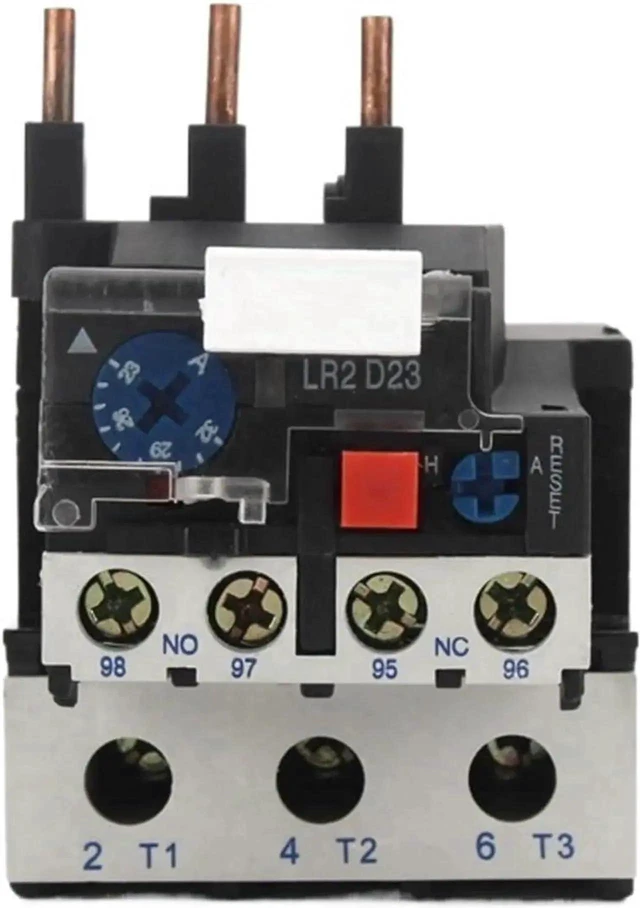

    • A precise current adjustment dial helps set the relay to the required protection range for the connected motor circuit.
    • The sensitive thermal bimetal trip mechanism detects overload conditions and initiates circuit cut-off protection.
    • Dual protection covers motor overload and phase loss conditions within three-phase motor circuits.
    • The relay also addresses unbalanced three-phase current, providing an additional motor protection function.
    • Standard mounting is matched with AC contactors and supports use with pumps, fans, and machine tools.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now

    Product Description:

    The JR28-36 adjustable thermal overload protection relay is designed for three-phase motor circuit safety. It helps protect motors by automatically cutting power when abnormal overcurrent occurs, supporting stable operation in industrial applications.

    Core Selling Points:

    Three adjustable current ranges support different motor protection requirements. A precise adjustment dial and sensitive thermal bimetal trip mechanism respond to overload conditions. The relay provides protection against motor overload, phase loss, and unbalanced three-phase current. Standard mounting matches AC contactors and suits pumps, fans, and machine tools.

    Technical Specifications:

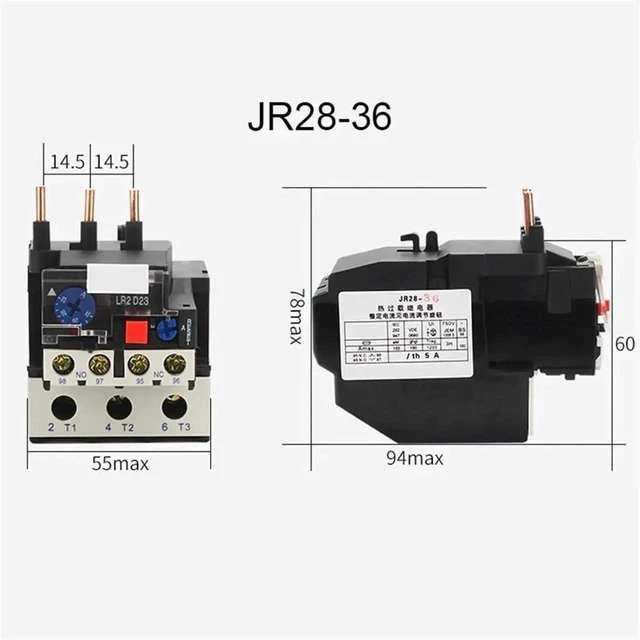

    Model: JR28-36 (LR2 D23). Frequency: 50/60Hz. Adjustable current ranges: 17-25A, 23-32A, and 28-36A. Protection type: thermal overload, phase loss, and unbalanced three-phase current protection. Mounting: standard mounting for AC contactors. Trip mechanism: thermal bimetal.

    Before Purchase:

    Confirm that the required adjustable current range matches the motor protection requirements. Verify compatibility with the intended AC contactor mounting and three-phase motor circuit before purchase.
