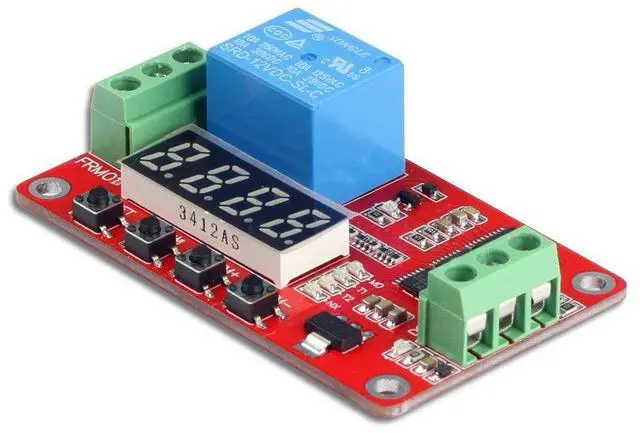

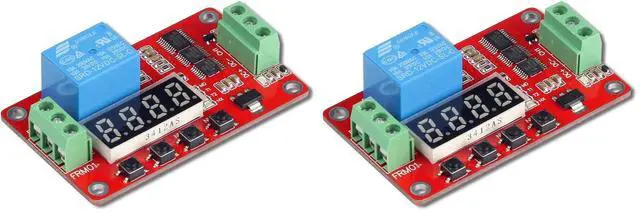

KEHIPI DC 12V Programmable Multifunction Time Delay Relay Module with Segment LEDs Display for Smart Home, Automatic Control (Pack of 2)
- The information below is per-pack only
- Programmable 18 delay modes, to meet the switch control of all kinds of occasions
- Reverse protection, avoid burning down the module as connecting the wrong terminals
- Auto power saving function, user could set up on their own
- All options setting could be saved automatically, the content will not be lost even power down
- Paper instructions
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description
This programmable multifunction time delay relay module is designed for different kinds of control systems. It has 18 preset modes, users can program one of the mode and its parameters to fit for their applications.
Features and Specifications:
Mode 1: On Delay
Mode 2: Interval
Mode 3: On delay and Interval
Mode 4: Interval and On delay
Mode 5: Repeat Cycle-Starting Open
Mode 6: Repeat Cycle-Starting Close
Mode 7: Limited Repeat Cycle-Starting Open
Mode 8: Limited Repeat Cycle-Starting Close
Mode 9: Self-Locking Mode
Mode 10: Retriggerable Delay Off
Mode 11: Retriggerable One Shot-Starting Open
Mode 12: Retriggerable One Shot-Starting Close
Mode 13: Retriggerable Timing-Starting Open-Close
Mode 14: Retriggerable Timing-Starting Close-Open
Mode 15: Unlimited Repeat Cycle 1
Mode 16: Unlimited Repeat Cycle 2
Mode 17: Limited Repeat Cycle 1
Mode 18: Limited Repeat Cycle 2
Electrical Parameters:
Working voltage: DC 12V
Static current: 5.5mA
Temperature limitation: -30 -70 degrees (-20-60 degree recommended)
Load capacity: DC 30V or AC 250V / DC 28V or AC 125V
Application:
Smart home, Automatic control etc.
Package including:
1pcs Programmable Multifunction Time Delay Relay Module
1pcs User Manual
