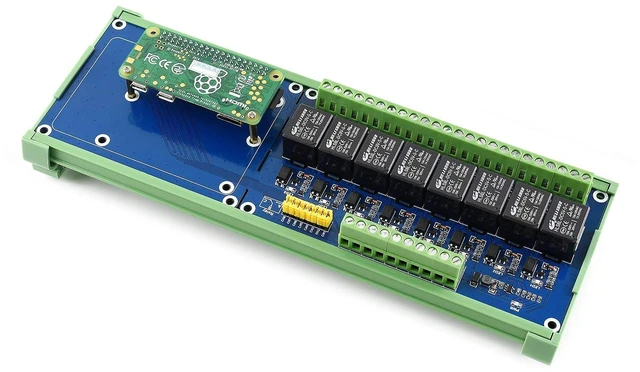

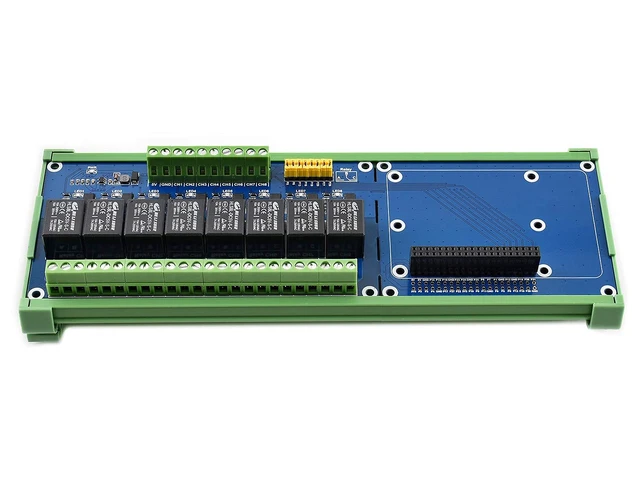

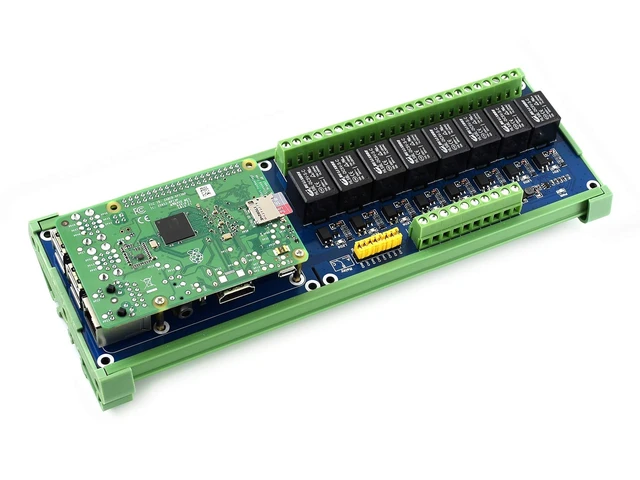

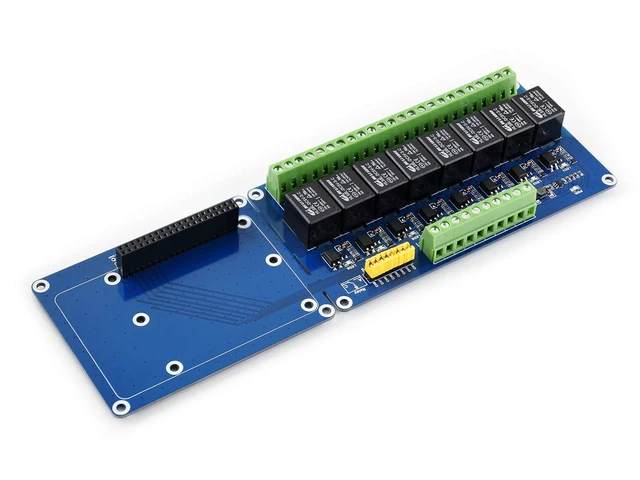

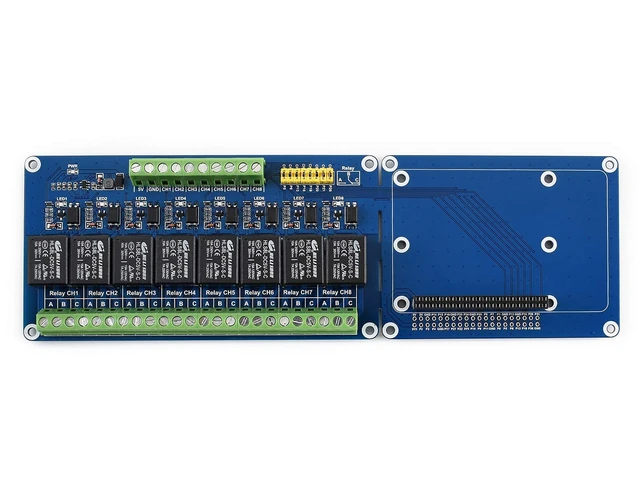

Waveshare Expansion Board 8 Channel Relay Expansion Board 5V Power Supply Compatible with Raspberry Pi A+/B+/2B/3B/3B+ Control High Voltage Home Appliances
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- High quality relays, loads up to 5A 250V AC or 5A 30V DC. Photo coupling isolation, prevent interference from high voltage circuit

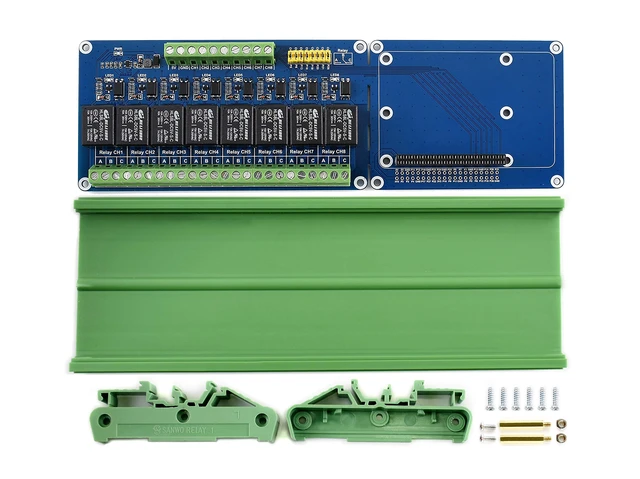

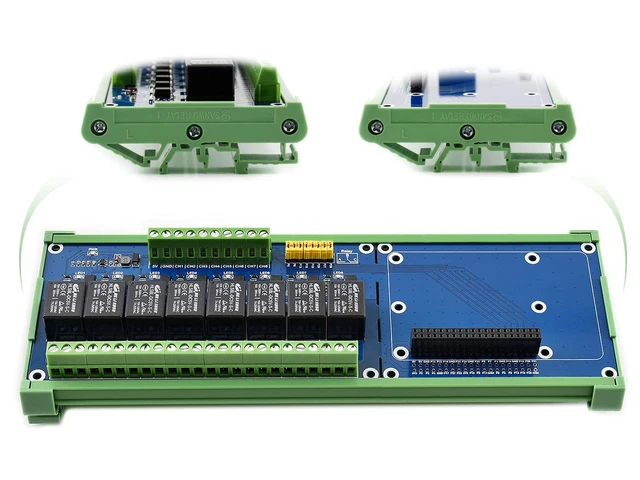

- Standard rail mount bottom case. Onboard LEDs for indicating relays status
- Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins. Reserved control Interface, allows to work with controllers like PLC
- Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product information
| Brand | waveshare |
| Model Name | RPi Relay Board (B) |
| Connectivity Technology | GPIO |
| Included Components | Development resources, Examples in wiringPi, bcm2835, python, python-bottle, crontab |
| Wireless Communication Standard | 802.11b |
| Wireless Compability | 802.11b |
| Compatible Devices | Raspberry Pi A+/B+/2B/3B/3B+, Jetson Nano |
| RAM Memory Technology | LPDDR2 |
| Item Dimensions L x W x H | 2.36"L x 0.45"W x 0.2"H |
| Built-In Media | Development resources, Examples in wiringPi, bcm2835, python, python-bottle, crontab |
| Number of Items | 1 |
| UPC | 614961953253 |
| Item Weight | 0.02 kg |
| Manufacturer | Waveshare |
| Model Number | RPi Relay Board (B) |
| Mfr Part Number | RPi Relay Board (B) |
