XY-WJ01 DC12V LED Digital Time Delay Relay Module Programmable Timer Control Switch with LCD Display 0.01s-9999min Timing High/Low Level and Passive Trigger UART DC30V 10A/AC220V 5A

Product Description:

The XY-WJ01 LED digital time delay relay module is a programmable control switch timer circuit for automation and timing applications. It provides adjustable timing control, multiple trigger options, an LCD display, and relay output management.

Core Selling Points:

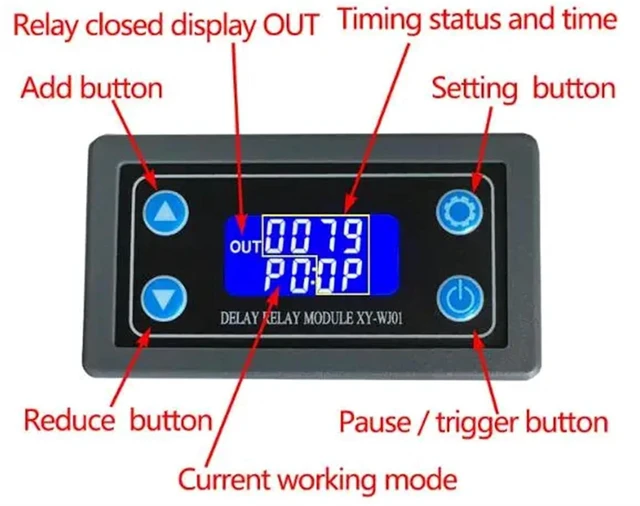

Adjustable timing from 0.01 seconds to 9999 minutes supports a broad range of control tasks. High-level, low-level, and passive switch triggers provide flexible integration options. The LCD screen displays the current mode and parameters for convenient setup and monitoring. Optocoupler isolation, reverse connection protection, automatic parameter saving, power-off storage, and automatic sleep mode support reliable operation. The service life exceeds 100,000 cycles.

Technical Specifications:

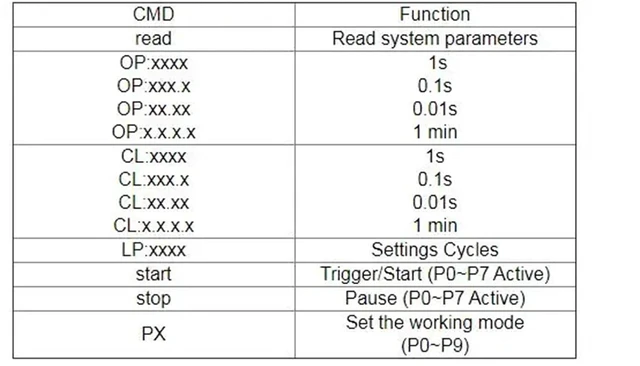

Model: XY-WJ01. Rated power supply: DC12V. Timing range: 0.01 seconds to 9999 minutes. High-level trigger: 3V-24V. Low-level trigger: 0V-0.2V. Output capability: DC30V 10A or AC220V 5A. Interface: UART for data upload and parameter setting. Display: LCD. Trigger modes: high-level, low-level, and passive switch. Protection and functions: optocoupler isolation, reverse connection protection, automatic parameter saving, power-off storage, and automatic sleep mode.

Before Purchase:

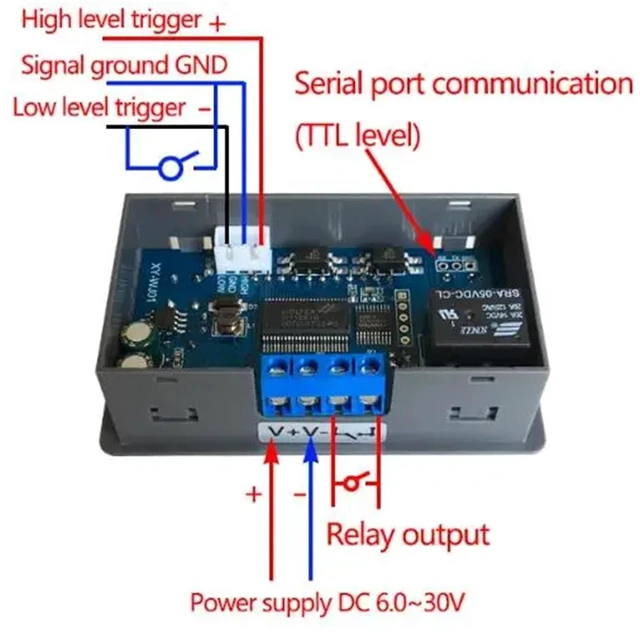

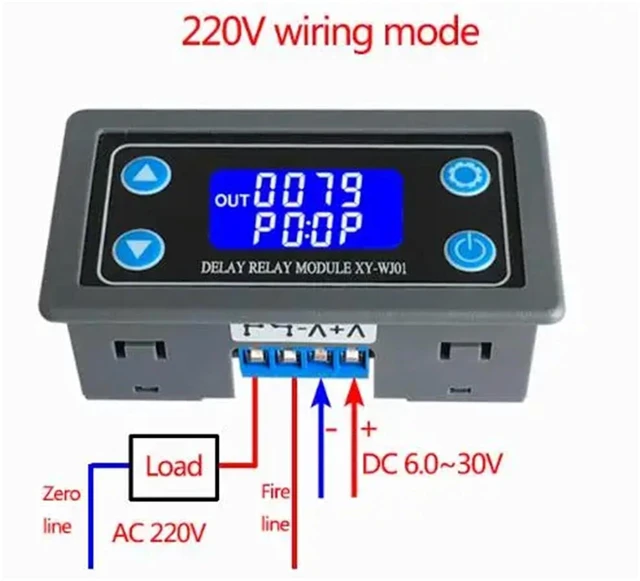

Confirm that your power source is DC12V and that the required trigger signal matches the supported high-level, low-level, or passive switch input. Check that the connected load does not exceed DC30V 10A or AC220V 5A. UART functions are provided for data upload and parameter setting.
