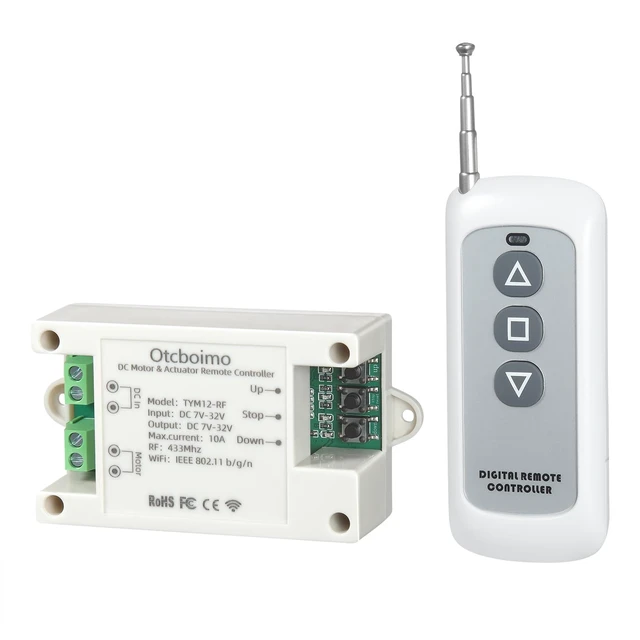

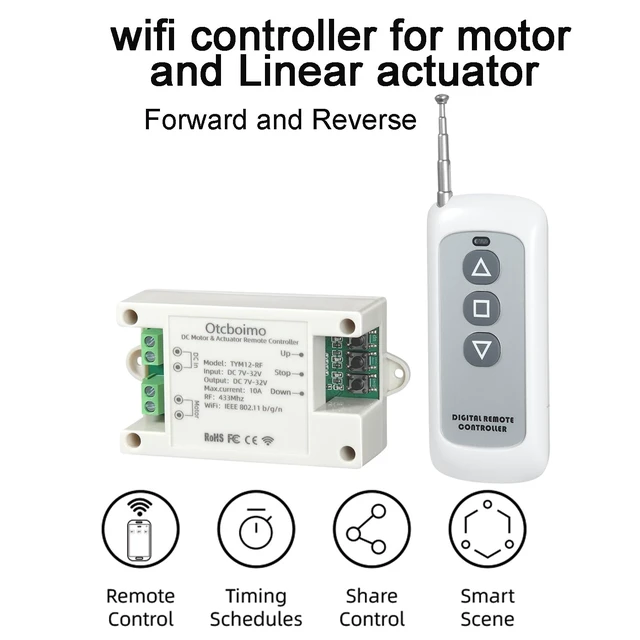

DC12V 24V 32V WiFi Smart Linear Actuator Motor Controller | Forward and Reverse Relay, Smart Life APP / RF433Mhz 328FT Remote Control, Work with Alexa, Google Home, Siri

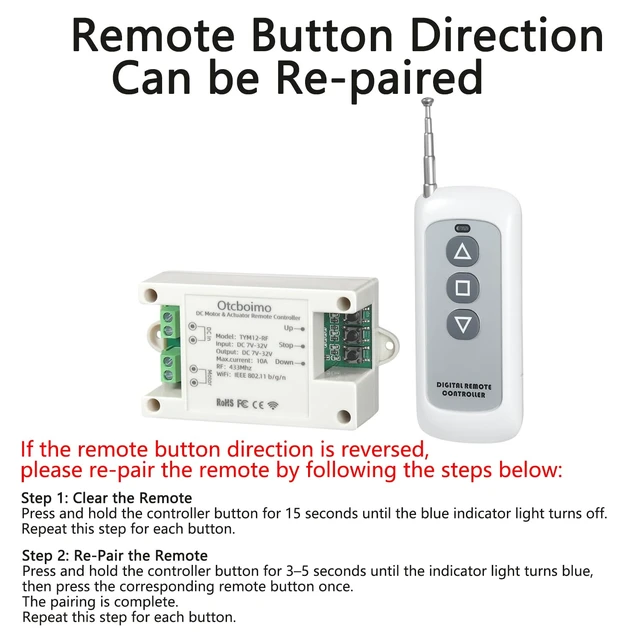

NOTE: If the remote button direction is reversed, please re-pair the remote by following the steps below:

Step 1: Clear the Remote

Press and hold the controller button for 15 seconds until the blue indicator light turns off.

Repeat this step for each button.

Step 2: Re-Pair the Remote

Press and hold the controller button for 35 seconds until the indicator light turns blue, then press the corresponding remote button once.

The pairing is complete.

Repeat this step for each button.

Product Use:

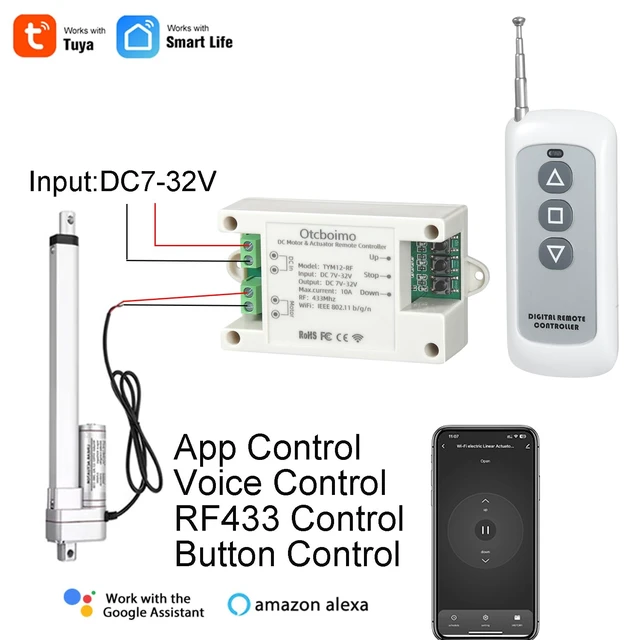

This product is designed to modernize traditional DC motors and linear actuators, allowing users to control them remotely, set timers, use a remote control, or even control them via voice with Alexa, Google Home, or Siri.

Application Scenarios:

Electric windows, electric TV lifts, electric projector screens, electric height-adjustable desks, electric adjustable beds, electric chicken coop doors, and similar situations.

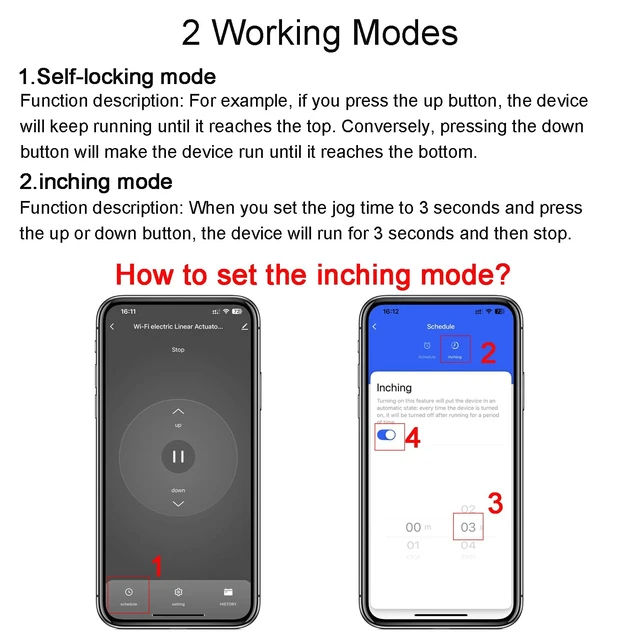

2 Working Modes:

1.Self-locking mode

Function description: For example, if you press the up button, the device will keep running until it reaches the top. Conversely, pressing the down button will make the device run until it reaches the bottom.

2.Momentary operation mode

Function description: When you set the jog time to 3 seconds and press the up or down button, the device will run for 3 seconds and then stop.

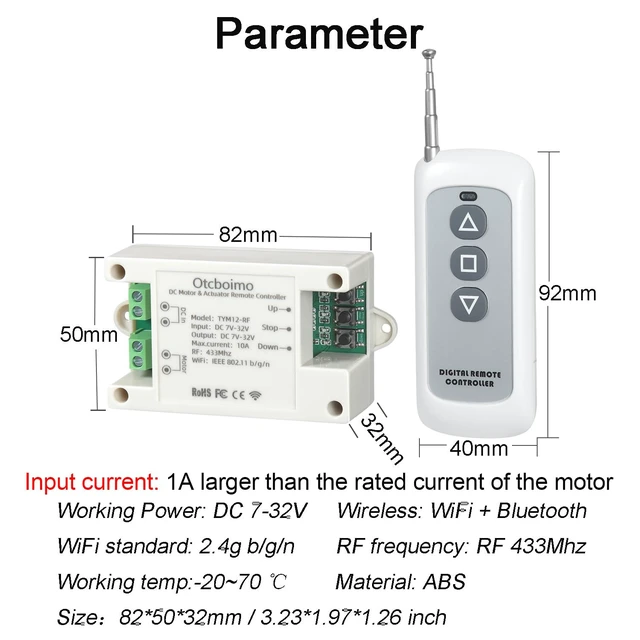

Product Parameters:

Working Power: DC 7-32V

Wireless: WiFi+ Bluetooth

WiFi standard: 2.4g b/g/n (don't supports 5G wifi)

RF frequency: RF 433Mhz

Working temp:-20~70

Material: ABS

Package: 1x Controller, 1x Remote, 1x 23A 12V battery, 1x User guide

Size: 82*50*32mm / 3.23*1.97*1.26 inch, Remote:9.2*4*1.4mm / 3.62*1.58*0.55inch

Frequently Asked Questions

Q1: Why should the power supply's output current be at least 1A higher than the motor's rated current?

A: The controller has a built-in Wi-Fi module that consumes additional power during operation. If the power supply cannot provide sufficient current or voltage, the controller and motor may not function properly. For stable performance, we recommend using a power supply rated at least 1A higher than the motor's rated current.

Q2: How do I enable the inching (momentary) function?

A: Open the app and go to Schedule > Inching, then set the desired running time.

Q3: Can I connect external limit switches?

A: External limit switches are not supported. If automatic stopping is required, you can use the built-in inching timer to stop the motor after a preset operating time.

Q4: Does this controller support speed control?

A: No. This controller does not support motor speed adjustment. It only provides Forward, Reverse, and Stop/Pause functions.
