NI PCI-6514 Digital I/O Card, 778836-01, 32-Ch Input, 32-Ch Sourcing Output, Industrial DAQ for High-Voltage Digital Control

NI PCI-6514

(32 Inputs, 32 Source Outputs)

Low-Cost Industrial Digital I/O 30V, Bank Isolation

1. Low-cost solution featuring industrial control and manufacturing test applications
2. Bank-isolated 32 sink/source inputs (±30 VDC)
3. 32 source outputs (+30 VDC, 350 mA per channel, 75 mA all channels)
4. Highly reliable industrial features: industrial 24 V logic thresholds
5. Watchdog, programmable power-up states, change detection, input filters, high-current drive

Productivity and Performance with NI-DAQmx Software Technology (NI-DAQmx 7.1 or later)

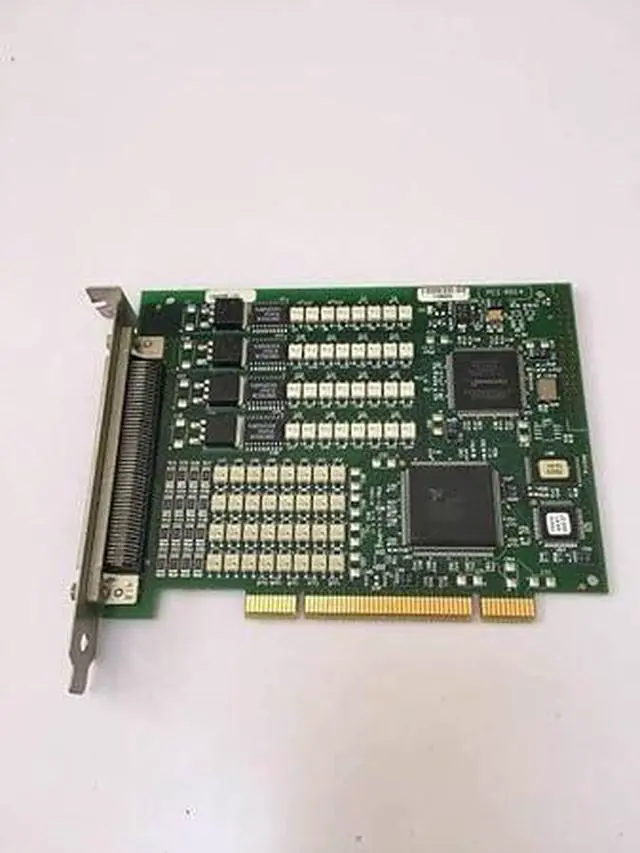

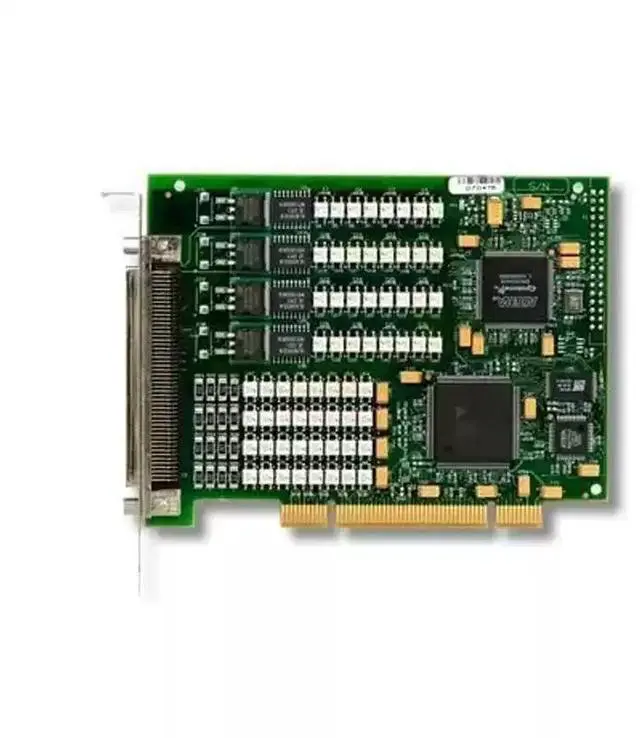

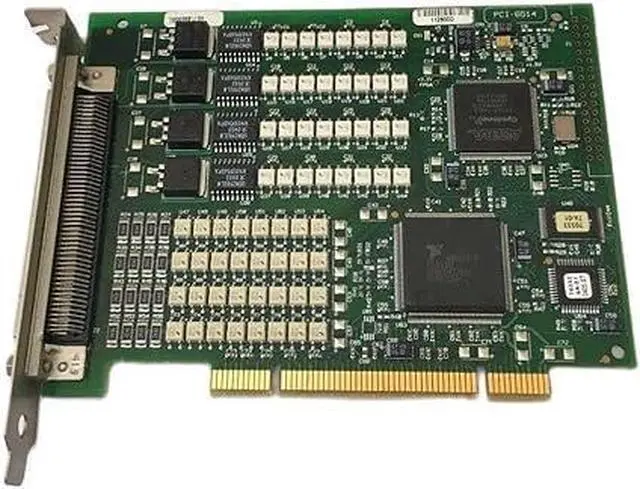

The NI PCI-6514 is an industrial 64-channel isolated digital I/O interface for PCI systems. The NI PCI-6514 provides optical isolation on both input and output channels, operating in banks of 8 channels.

With programmable power-up states, you can configure the initial output state in software, ensuring safe and trouble-free operation when connecting to industrial actuators (pumps, valves, motors, relays). The digital I/O watchdog allows the board to enter a fully configurable safe output state even if the computer or application fails.

NI-DAQmx helps you quickly and easily configure the board, making full use of all highly reliable industrial features with automatic code generation in LabVIEW, ANSI C, Microsoft Visual C++, or Microsoft .NET languages (C# and Visual Basic .NET).
